GATES

Gates T39117 Belt Tensioner, V-ribbed belt

SKU: T39117
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£104.25 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
2.5 ST 2522 CCM 225 HP 10/2005 - 09/2012
2.5 RS 2521 CCM 305 HP 01/2009 - 07/2011
KUGA I
Description Cylinder Capacity Horse Power Year
2.5 4x4 2522 CCM 200 HP 02/2008 - 11/2012
VOLVO
C30 (533)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 12/2012
D4 1984 CCM 177 HP 10/2010 - 12/2012
2.4 i 2435 CCM 170 HP 10/2006 - 12/2012
T5 2521 CCM 220 HP 10/2006 - 12/2012
D5 2400 CCM 180 HP 10/2006 - 12/2012
T5 2521 CCM 230 HP 03/2007 - 12/2012
D5 2400 CCM 163 HP 10/2006 - 12/2012
C70 II Convertible (542)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 06/2013
D4 1984 CCM 177 HP 10/2010 - 06/2013
2.4 2435 CCM 140 HP 03/2006 - 10/2009
2.4 i 2435 CCM 170 HP 03/2006 - 10/2009
T5 2521 CCM 220 HP 03/2006 - 02/2007
D5 2400 CCM 180 HP 03/2006 - 06/2013
T5 2521 CCM 230 HP 03/2007 - 06/2013
2.4 D 2400 CCM 163 HP 03/2007 - 06/2013
S40 II (544)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 12/2012
D4 1984 CCM 177 HP 10/2010 - 12/2012
2.4 2435 CCM 140 HP 01/2004 - 12/2010
2.4 2435 CCM 170 HP 01/2004 - 12/2012
T5 2521 CCM 220 HP 01/2004 - 12/2007
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
D5 2400 CCM 179 HP 03/2006 - 12/2010
T5 2521 CCM 230 HP 03/2007 - 12/2012
V40 Hatchback (525)
Description Cylinder Capacity Horse Power Year
T4 1984 CCM 180 HP 07/2013 - 12/2015
D3 1984 CCM 150 HP 03/2012 - 03/2015
D4 1984 CCM 177 HP 03/2012 - 12/2014
T5 2497 CCM 254 HP 12/2012 - 12/2014
T5 1984 CCM 214 HP 03/2013 - 12/2015
V40 Cross Country (526)
Description Cylinder Capacity Horse Power Year
T4 AWD 1984 CCM 180 HP 07/2013 - 12/2015
T5 AWD 1984 CCM 214 HP 03/2013 - 12/2015
T5 AWD 2497 CCM 254 HP 10/2012 - 12/2016
T4 1984 CCM 180 HP 10/2013 - 12/2015
D3 1984 CCM 150 HP 10/2012 - 03/2015
V50 (545)
Description Cylinder Capacity Horse Power Year
D4 1984 CCM 177 HP 10/2010 - 12/2012
D3 1984 CCM 150 HP 10/2010 - 12/2012
2.4 2435 CCM 140 HP 04/2004 - 12/2010
2.4 2435 CCM 170 HP 04/2004 - 12/2010
T5 2521 CCM 220 HP 04/2004 - 12/2007
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
D5 2400 CCM 179 HP 04/2006 - 02/2008
T5 2521 CCM 230 HP 03/2007 - 12/2012
T5 AWD 2521 CCM 230 HP 03/2007 - 12/2010

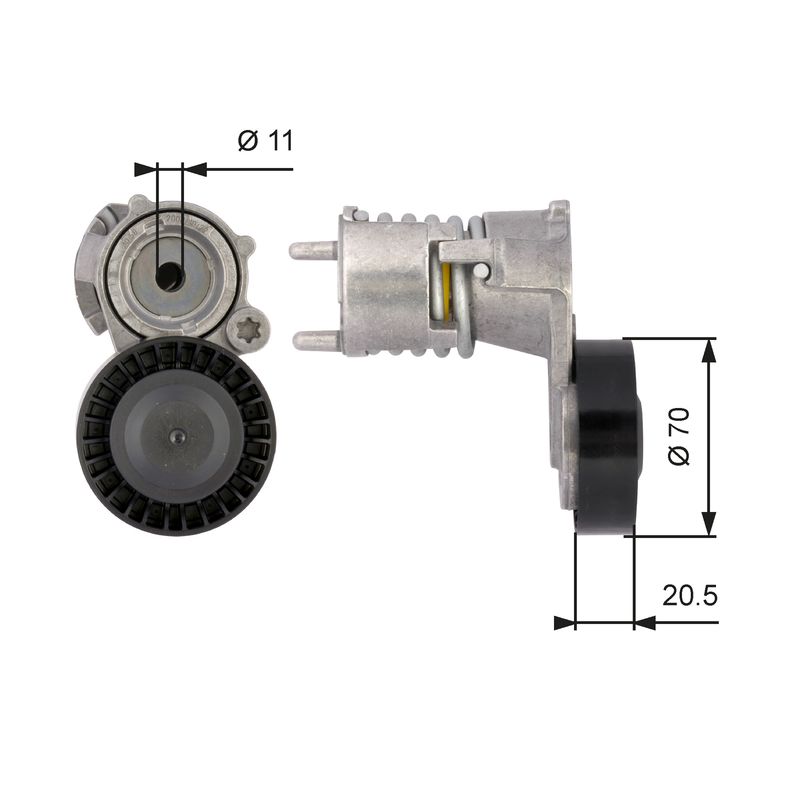

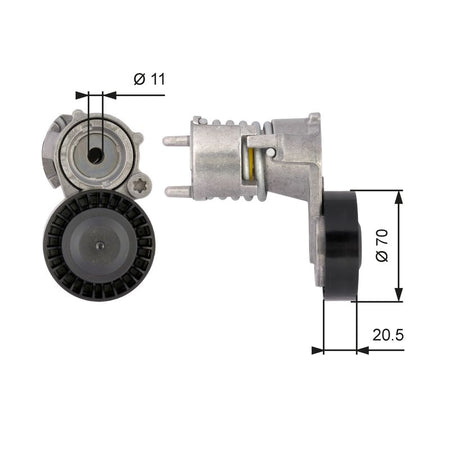

The Gates T39117 Belt Tensioner, V-ribbed belt is a replacement belt-drive component that helps transmit drive between the relevant engine pulleys while maintaining the specified belt path. Its catalogue specification records 70 mm outer diameter, 20.5 mm width, and Alternator driven units. Match the reference, belt profile or pulley dimensions, tooth data, driven units and engine application before fitting; observe the specified tensioning and timing procedure.

Function : Belt Tensioner, V-ribbed belt
Outer Diameter [mm] : 70
Width [mm] : 20.5
Construction Year from : 01.2009
Driven Units : Alternator
  • Vendor GATES
  • SKU T39117
  • Barcode 5414465967368
  • FORD : 1540603 8M5N6A228AA
  • VOLVO : 31251653
  • APEC : ADS1709L
  • FEBI BILSTEIN : 30082
  • LUCAS : LA0815
  • NAPA : NDS1709L
  • Shaftec : P193AL
  • Shaftec : P193ALSF
  • SKF : VKM 36251
  • GATES : 780821517
