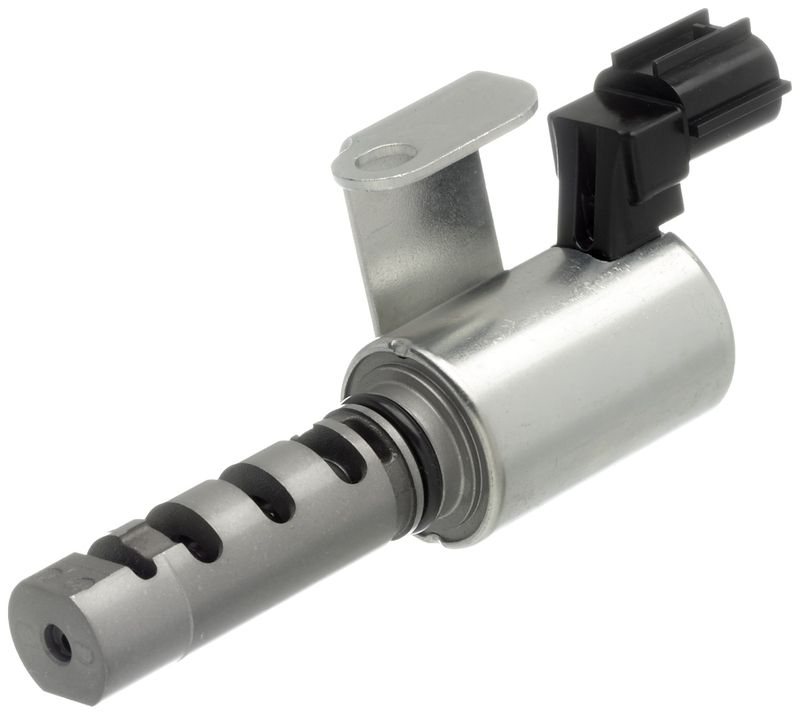

Gates VVS164 Control Valve, camshaft adjustment - 1

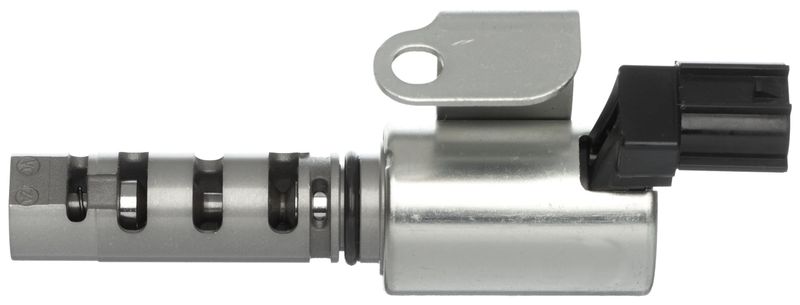

Gates VVS164 Control Valve, camshaft adjustment - 2

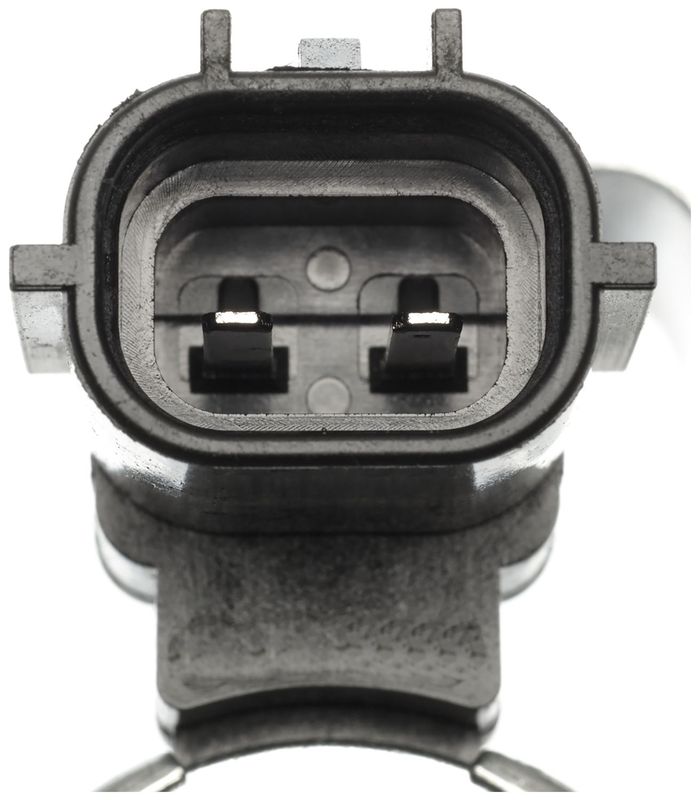

Gates VVS164 Control Valve, camshaft adjustment - 3
Gates VVS164 Control Valve, camshaft adjustment - 1
Gates VVS164 Control Valve, camshaft adjustment - 2
Gates VVS164 Control Valve, camshaft adjustment - 3
GATES

Gates VVS164 Control Valve, camshaft adjustment

SKU: VVS164
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£96.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUBARU
FORESTER (SG_)
Description Cylinder Capacity Horse Power Year
2.5 AWD (SG9) 2457 CCM 211 HP 12/2003 - 05/2005
2.5 AWD (SG9, S11SG, S12SH) 2457 CCM 230 HP 06/2005 - 05/2008
2.5 AWD 2457 CCM 232 HP 01/2004 - 12/2009
2.5 Prodrive Performance Pack AWD 2457 CCM 256 HP 05/2005 - 09/2005
FORESTER (SH_)
Description Cylinder Capacity Horse Power Year
2.5 AWD (SH9) 2457 CCM 230 HP 06/2008 - 09/2013
IMPREZA Saloon (GD)
Description Cylinder Capacity Horse Power Year
2.5 i WRX AWD (GDG) 2457 CCM 230 HP 09/2005 - 12/2008
2.5 WRX STi AWD (GDF) 2457 CCM 280 HP 09/2005 - 12/2007
IMPREZA Estate (GG)
Description Cylinder Capacity Horse Power Year
2.5 WRX AWD (GGG) 2457 CCM 230 HP 09/2005 - 12/2008
2.5 AWD 2457 CCM 300 HP 10/2005 - 03/2007
2.5 GB270 AWD 2457 CCM 269 HP 07/2007 - 12/2007
IMPREZA Saloon (GE, GV)
Description Cylinder Capacity Horse Power Year
2.5 AWD 2457 CCM 230 HP From 10/2008
2.5 WRX SE AWD (GVE, GEE) 2457 CCM 265 HP 01/2009 - 12/2014
2.5 AWD 2457 CCM 270 HP From 07/2007
2.5 AWD 2457 CCM 272 HP 01/2007 - 12/2007
2.5 AWD 2457 CCM 320 HP 02/2007 - 12/2007
IMPREZA Hatchback (GR, GH, G3)
Description Cylinder Capacity Horse Power Year
2.5 AWD (GHE) 2457 CCM 230 HP 01/2008 - 09/2011
2.5 WRX STI 330S AWD 2457 CCM 330 HP 05/2009 - 12/2010

The Gates VVS164 Control Valve, camshaft adjustment is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records Male plug type, metal construction, 123 mm length, and 28 mm width. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.

Function : Control Valve, camshaft adjustment
Number of pins : 2
Pin Shape : Flat
Plug Type : Male
Material : Metal
Length [mm] : 123
Width [mm] : 28
Height [mm] : 28
Construction Year from : 03.2005
Construction Year to : 05.2005
Required quantity : 2
  • Vendor GATES
  • SKU VVS164
  • Barcode 5400608513448
  • SUBARU : 10921AA080
  • FEBI BILSTEIN : 178556
  • WAI : VVTS1743
  • GATES : 747311164
