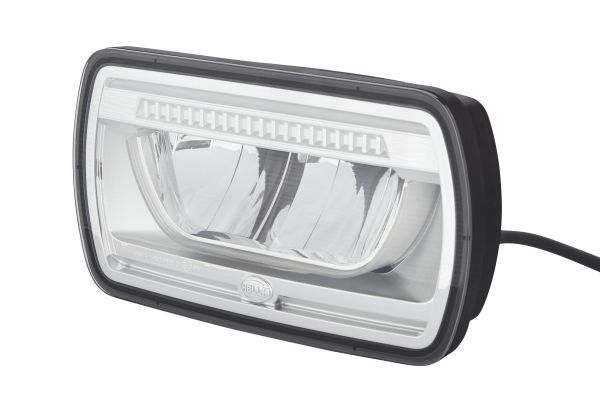

Hella 1FE016773-001 High Beam Headlight
Your selected vehicle
Regular price
£181.25
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 1FE016773-001 High Beam Headlight is a replacement vehicle-lighting component that provides the specified lighting or signalling function when used in a compatible lamp unit. Its catalogue specification records Bolted mounting type, Vertical fastening type, LED lamp type, and Clear diffusing lens diffusing lens type. Confirm the reference, lamp type, voltage, wattage, base and fitting position before ordering; use only a road-legal specification for the intended exterior-lighting application.
Function :
High Beam Headlight
Mounting Type :
Bolted
Fastening Type :
Vertical
Lamp Type :
LED
Light colour :
white
Voltage [V] :
12
Voltage [V] :
24
Voltage from [V] :
9
Voltage to [V] :
32
Height [mm] :
132
Overall Height [mm] :
141
Width [mm] :
238
Depth [mm] :
113
Fitting Depth [mm] :
23
Length [inch] :
5
Light Function :
with high beam (LED)
Light Function :
with position light (LED)
Number of light functions :
2
Registration Type :
ECE approved
fulfils ECE standard :
R10
fulfils ECE standard :
R148
fulfils ECE standard :
R149
Reference number :
25
Cable Length [mm] :
800
Housing Colour :
black
Lens Colour :
Crystal clear
Shape :
rectangular
Light Distribution :
Long-range illumination
Diffusing Lens Type :
Clear diffusing lens
Diffusing Lens Material :
Plastic
Protection Type (IP Code) :
IP6K7
Protection Type (IP Code) :
IPX9K
Plug Type :
open cable ends
Colour Temperature [K] :
6,000
Luminous Flux [lm] :
541
Weight [g] :
680
Power Consumption [W] :
1.3
Power Consumption [W] :
2.7
Housing material :
Thermoplast
Quantity :
1
MPN
1FE016773001
- Vendor HELLA
- SKU 1FE016773-001
- User manual
- HELLA : E1 9032
- HELLA : E24 5931
