Hella 1G4003470-031 Worklight
Your selected vehicle
Regular price
£41.51
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

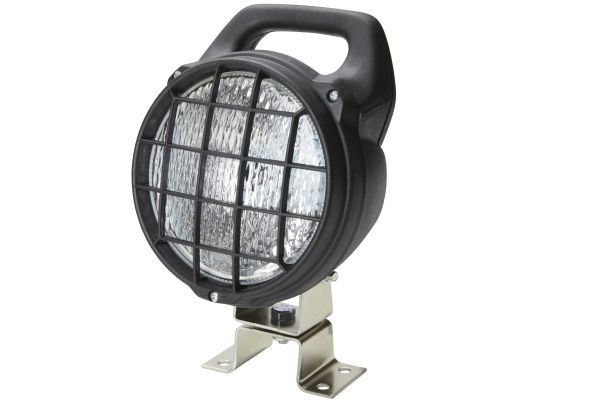

The Hella 1G4003470-031 Worklight is a replacement vehicle-lighting component that provides the specified lighting or signalling function when used in a compatible lamp unit. Its catalogue specification records mounting and Screw Connection mounting type, Four-point attachment fastening type, Halogen light design, and H3 lamp type. Confirm the reference, lamp type, voltage, wattage, base and fitting position before ordering; use only a road-legal specification for the intended exterior-lighting application.
Function :
Worklight
Mounting Type :
mounting
Mounting Type :
Screw Connection

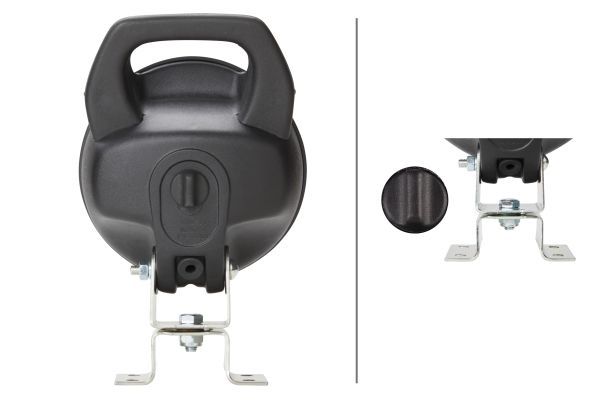

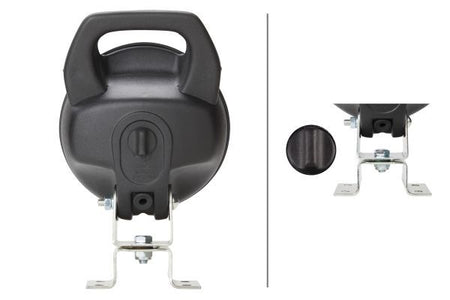

Fastening Type :
Four-point attachment
Light Design :
Halogen
Lamp Type :
H3
Voltage [V] :
12
Voltage [V] :
24

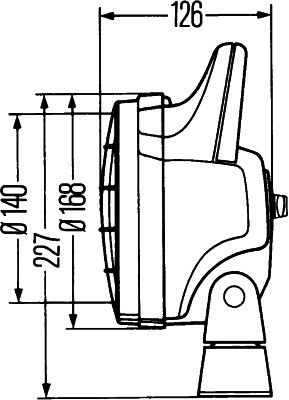

Height [mm] :
263
Width [mm] :
168
Depth [mm] :
126

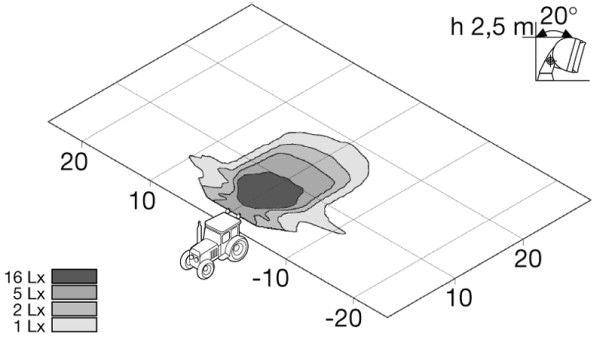

Light Distribution :
Short-Range Illumination
Plug Type :
open cable ends
Protection Type (IP Code) :
IP5K4K
Power Consumption [W] :
35
Power Consumption [W] :
70
Supplementary Article/Supplementary Info 2 :
without bulbs
Supplementary Article/Supplementary Info 2 :
with integrated grille
Housing Type :
Synthetic Material Housing
Housing Colour :
black
Diffusing Lens Material :
Glass
Diffusing Lens Type :
Patterned diffusing lens
MPN
1G4003470031
- Vendor HELLA
- SKU 1G4003470-031
- AUDI : KDWHLO9430
- DAF : 0867386 1341734 273336
- FORD : 5C46 13N429 AA 5C46 13N4299AA V1C4415592AA
- INTERNATIONAL HARV. : 1 089 208 R 91
- MAN : 81.25103-6033 ZF251036033
- MERCEDES-BENZ : 000 482 57 02 531 551 1 A 000 482 57 02 A 000 531 55 11 A 531 551 1
- SCANIA : 1934127 20223815
- VAN HOOL : 10704399
- VW : KDWHLO9430
- CASE IH : 1 089208 R91 1133292R1
- MASSEY FERGUSON : 3 248 394 0
- O&K : 1185972
- LIEBHERR : 6 071 388 08
- JOHN DEERE : 26.01.102 WZ 26 01102
- DEMAG : 00053012 32483940
- KÖGEL : 77799
- SPIERINGS : 1055439
- HAKO : 90-19447-3
- ATLAS COPCO : 1786294
- CATERPILLAR : 826850
- KOMATSU : 32483940
- LINDE : FM8 112 64 0
- LAND ROVER : 10501
- PUTZMEISTER : 065255.007
- PAUS : 519137
- KRONE : 5804155/0
- LANGENDORF : 1084173
- TEREX : 32483940
- JUNGHEINRICH : 025416 50153283
- LAMBERET : 02433904
- SOMMER : 2800726001
- BOBCAT : L000008711
- BUCHER : 622030
- VDL : 10704399
- KAMAG : 80077799
- SCHWARZMÜLLER : 15834
- FAYMONVILLE : 3491
- FELDBINDER : 007101
- ROSENBAUER : 036417 FE0014
- SANY : B241100000067
- ZOOMLION : 1020401035
- HELLA : 1G4 003 470-001
- HELLA : 1G4 003 470-051
- HELLA : 1G4 003 470-141
- HELLA : 1G4 003 470-147
- HELLA : 1GA 007 506-681
- HELLA : Matador
