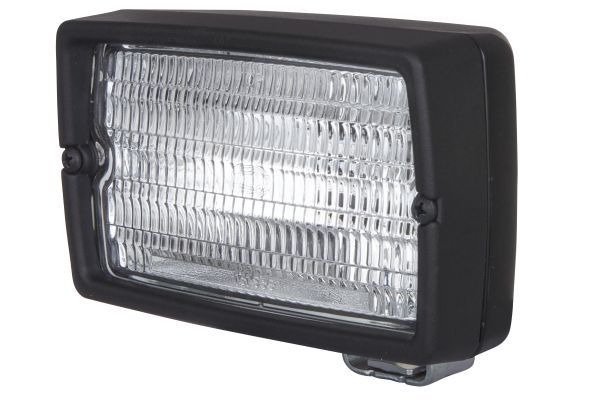

Hella 1GA005060-001 Worklight
Your selected vehicle
Regular price
£22.66
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 1GA005060-001 Worklight is a replacement vehicle-lighting component that provides the specified lighting or signalling function when used in a compatible lamp unit. Its catalogue specification records Bolted and mounting mounting type, Suspended and Vertical fastening type, H3 lamp type, and Halogen light design. Confirm the reference, lamp type, voltage, wattage, base and fitting position before ordering; use only a road-legal specification for the intended exterior-lighting application.
Function :
Worklight
Mounting Type :
Bolted
Mounting Type :
mounting
Fastening Type :
Suspended
Fastening Type :
Vertical
Lamp Type :
H3
Light Design :
Halogen
Voltage [V] :
12
Voltage [V] :
24
Power Consumption [W] :
35
Power Consumption [W] :
70

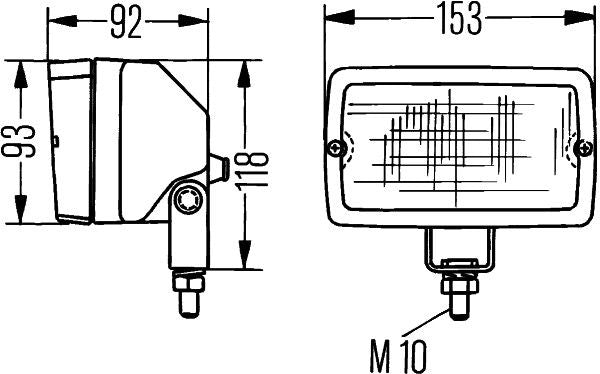

Width [mm] :
153
Height [mm] :
118
Depth [mm] :
92
Diffusing Lens Material :
Glass
Plug Type :
Blade Terminal
Housing Type :
Synthetic Material Housing
Housing Colour :
black
Diffusing Lens Type :
Patterned diffusing lens
Protection Type (IP Code) :
IP5K4K

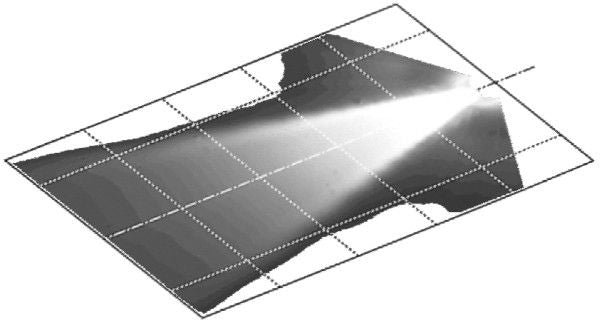

Light Distribution :
Long-range illumination
Supplementary Article/Supplementary Info 2 :
without bulbs
MPN
1GA005060001
- Vendor HELLA
- SKU 1GA005060-001
- AEBI : 12-97700696
- DAF : 1359959
- FRUEHAUF : L-SX0311-555
- IVECO : 41635108
- MERCEDES-BENZ : 000 544 09 47 532 300 4 A 000 532 30 04 A 000 544 09 47 A 532 300 4
- SCANIA : 1906626
- VAN HOOL : 11159831
- FAUN : 5231-056 ES0028
- CASE IH : 1960077
- MASSEY FERGUSON : 3 105 630 M1 3387 863 M91
- O&K : 1960077 1960077X
- SAME : 091 200007-7826
- STEINBOCK : 000 32851 079 39863
- LIEBHERR : 6 000 804
- CLAAS : 4-60000280000
- DEUTZ-FAHR : 091 200007-7826
- JOHN DEERE : AL 75 393 ZZ 10 006
- DEMAG : 63424440
- GOLDHOFER : 141205700-
- JCB : 8424/01085
- RENDERS : 30009008
- SPIERINGS : 400213
- STILL : 000 974 04 12 525016
- HAKO : 90321928 90321928 (30)ALT
- AHLMANN : 55290371/6929001
- ATLAS COPCO : 1744761 5350661210
- CATERPILLAR : 196-0077
- HYSTER : S01121270002
- KOMATSU : 4220 512 M91 4230 6H2 140 423-06-H2140
- KRAMER : 56513
- KUBOTA : 30-W-00910
- LINDE : 000 974 04 12 8112587 FM8 112 58 7
- AGCO : E400018
- DRONNINGBORG : 45084700
- SPERRY NEW HOLLAND : 1960077 920019495
- YANMAR : 17215917400 5350661210
- PACTON : 181574
- LAND ROVER : 10503
- ZIEGLER : 407241
- PUTZMEISTER : 404122
- PAUS : 512125
- KRONE : 505806987 5806987/0
- SCHMITZ CARGOBULL : 612791
- TEREX : 1744761 1960077 5350661210 63424440 94763424440
- JUNGHEINRICH : 07939863 50120411
- MANITOU : N750000506001
- DOLL : 899800
- HYDREMA : 10001010
- LAMBERET : 23523
- SOMMER : 2801160001.
- SOLARIS : 1503-060-001 1503-148-300
- DOOSAN : 534-00076 9534-9003
- BUCHER : 46/45 622036 76553510 7-655-3705
- VDL : 11159831
- LINDNER : 3000242
- DELVANO : 8040796
- AGRIFAC : 7788677
- FAYMONVILLE : 5861
- FELDBINDER : 1014493
- ROSENBAUER : 04407656 4012842
- CARNEHL : 9795
- HELLA : 1A8 003 060-551
- HELLA : 1G3 005 760-221
- HELLA : 1G3 005 760-227
- HELLA : 1GA 005 060-005
- HELLA : 1GA 005 060-041
- HELLA : 1GA 005 060-047
- HELLA : 1GA 006 876-001
- HELLA : 1GA 998 522-011
- HELLA : 1GB 006 213-111
- HELLA : 1GB 006 213-117
- HELLA : 1GB 996 102-101
- HELLA : 1GD 003 590-701
- HELLA : Master 5060
