HELLA

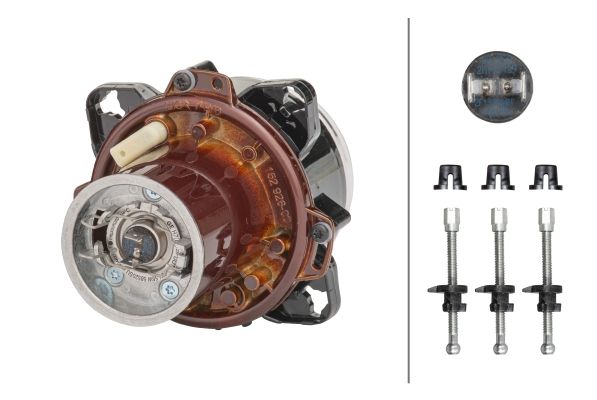

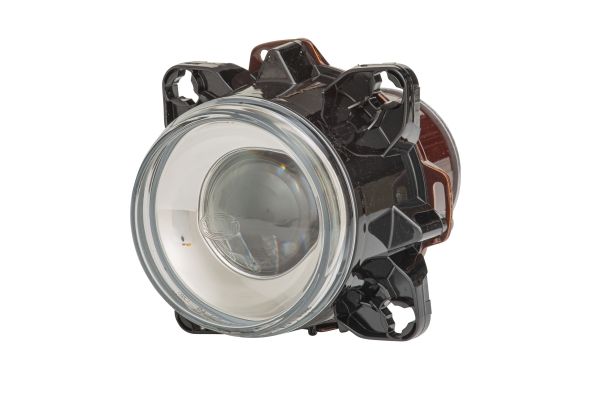

Hella 1LL008193-117 Insert, headlight

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 1LL008193-117
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£96.28 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

The Hella 1LL008193-117 Insert, headlight is a replacement vehicle-lighting component that provides the specified lighting or signalling function when used in a compatible lamp unit. Its catalogue specification records Fitting and mounting mounting type, 3-point attachment fastening type, Halogen, Asymmetric, and DE light design, and front fitting position. Confirm the reference, lamp type, voltage, wattage, base and fitting position before ordering; use only a road-legal specification for the intended exterior-lighting application.

Function : Insert, headlight
Mounting Type : Fitting
Mounting Type : mounting
Fastening Type : 3-point attachment
Light Design : Halogen
Light Design : Asymmetric
Light Design : DE
Lamp Type : H7
Voltage [V] : 12
Fitting Position : Front
Height [mm] : 118
Width [mm] : 113
Length [mm] : 140
Depth [mm] : 151
Diameter [mm] : 90
Light Function : with low beam
Number of light functions : 1
fulfils ECE standard : R8
fulfils ECE standard : R112
Plug Type : Blade Terminal
Reference number : 12.5
Left-hand/Right-hand Traffic : for left-hand traffic
Lens Colour : Crystal clear
Housing Colour : black
Illuminated Area [mm] : 90
Shape : round
Diffusing Lens Material : Glass
Supplementary Article/Supplementary Info 2 : with fastening material
Supplementary Article/Supplementary Info : with bulb
Quantity : 36
SVHC : 7439-92-1; Lead
MPN 1LL008193117
  • Vendor HELLA
  • SKU 1LL008193-117
  • Barcode 4082300225204
  • IVECO : 69502067
  • MITSUBISHI : SMME31640S9
  • HITACHI : AA01BAW
  • MASSEY FERGUSON : 4 296 404 M2
  • FENDT : 4296404M2 72437699 A CW1 979 240 F 931 901 020 010 G931901020180
  • HAKO : 45614159000
  • AGCO : 7105368M91 72437699 ACW1979240 F931 901 020 010 G931 901 020 180
  • WIESMANN : 063-05-03-ET-009
  • HELLA : 1BL 008 193-011
  • HELLA : 90 mm Classic
  • HELLA : E1 917
