HELLA

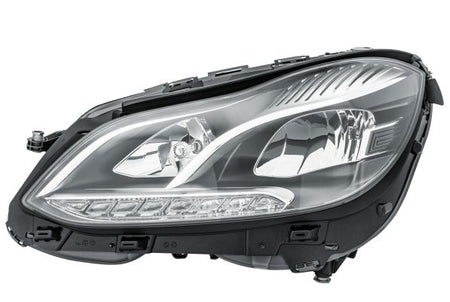

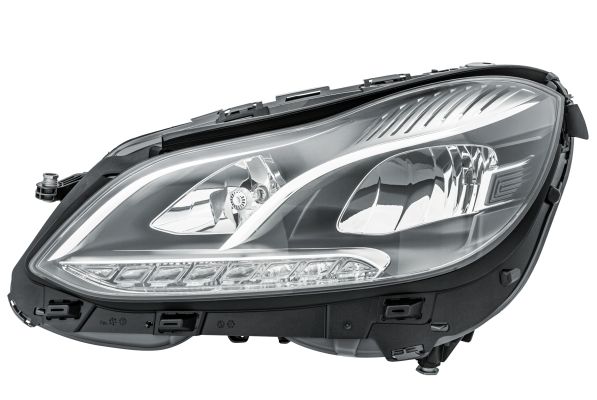

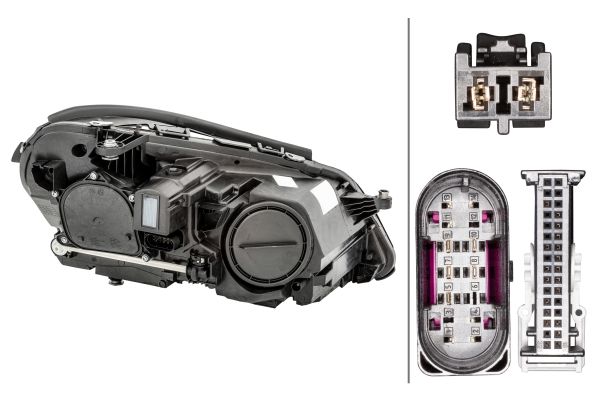

Hella 1LX011066-631 Headlight

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 1LX011066-631

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£980.24 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
E-CLASS (W212)
Description Cylinder Capacity Horse Power Year
E 250 CDI / BlueTEC 4-matic (212.082, 212.097) 2143 CCM 204 HP 01/2011 - 12/2015
E 300 CDI / BlueTEC (212.020, 212.021, 212.027) 2987 CCM 231 HP 03/2011 - 12/2015
E 350 CDI (212.023) 2987 CCM 265 HP 03/2011 - 12/2015
E 350 CDI 4-matic (212.093) 2987 CCM 265 HP 03/2011 - 12/2015
E 200 NGT (212.041) 1796 CCM 163 HP 03/2011 - 12/2015
E 63 AMG (212.074) 5461 CCM 525 HP 02/2011 - 12/2016
E 300 (212.054) 2996 CCM 231 HP 01/2009 - 12/2013
E 500 (212.073) 4663 CCM 408 HP 09/2011 - 12/2015
E 500 4-matic (212.091) 4663 CCM 408 HP 09/2011 - 12/2015
E 350 4-matic (212.088) 3498 CCM 306 HP 09/2011 - 12/2015
E 350 (212.059) 3498 CCM 306 HP 09/2011 - 12/2015
E 300 (212.055) 3498 CCM 252 HP 07/2011 - 12/2015
E 300 4-matic (212.080) 3498 CCM 252 HP 07/2011 - 12/2015
E 200 (212.034) 1991 CCM 184 HP 01/2013 - 12/2016
E 250 CGI (212.047, 212.147) 1796 CCM 204 HP 01/2009 - 12/2015
E-CLASS T-Model (S212)
Description Cylinder Capacity Horse Power Year
E 63 AMG (212.274) 5461 CCM 525 HP 02/2011 - 12/2016
E 350 CDI (212.223) 2987 CCM 265 HP 07/2011 - 12/2013
E 350 CDI 4-matic (212.293) 2987 CCM 265 HP 07/2011 - 12/2013
E 500 4-matic (212.291) 4663 CCM 408 HP 09/2011 - 12/2016
E 500 (212.273) 4663 CCM 408 HP 09/2011 - 12/2016
E 350 (212.259) 3498 CCM 306 HP 09/2011 - 12/2014
E 350 4-matic (212.288) 3498 CCM 306 HP 09/2011 - 12/2016
E 250 CDI / BlueTEC 4-matic (212.282, 212.297) 2143 CCM 204 HP 07/2010 - 12/2016
E 300 4-matic (212.280) 3498 CCM 252 HP 07/2011 - 12/2016
E 300 (212.255) 3498 CCM 252 HP 07/2011 - 12/2016
E 200 CDI / BlueTEC (212.205, 212.206) 2143 CCM 136 HP 11/2009 - 12/2016
E 220 CDI / BlueTEC (212.202, 212.201) 2143 CCM 170 HP 11/2009 - 12/2016
E 250 CDI / BlueTEC (212.203, 212.204) 2143 CCM 204 HP 11/2009 - 12/2016

The Hella 1LX011066-631 Headlight is a replacement vehicle-lighting component that provides the specified lighting or signalling function when used in a compatible lamp unit. Its catalogue specification records left fitting position, PSY24W, H7, and LED lamp type, LED and Halogen light design, and Europe country specific design. Confirm the reference, lamp type, voltage, wattage, base and fitting position before ordering; use only a road-legal specification for the intended exterior-lighting application.

Function : Headlight
Fitting Position : Left
Left-hand/Right-hand Traffic : for left-hand traffic
Lamp Type : PSY24W
Lamp Type : H7
Lamp Type : LED
Voltage [V] : 12
Light Design : LED
Light Design : Halogen
Number of light functions : 5
Light Function : with high beam
Light Function : with indicator
Light Function : with position light (LED)
Light Function : with daytime running light (LED)
Light Function : with low beam (LED)
Supplementary Article/Supplementary Info : with bulb
Supplementary Article/Supplementary Info : without LED control unit for low beam/high beam
Supplementary Article/Supplementary Info : without LED control unit for daytime running-/position ligh
Registration Type : ECE approved
Paired article number : 1LX 011 066-641
Country Specific Design : Europe
without lettering : Mercedes Benz
MPN 1LX011066631
  • Vendor HELLA
  • SKU 1LX011066-631
  • Barcode 4082300478914
  • MERCEDES-BENZ : 212 820 03 59 212 820 19 39 212 820 47 39 212 820 99 61 212 906 37 03 A 212 820 03 59 A 212 820 19 39 A 212 820 47 39 A 212 820 99 61 A 212 906 37 03
  • HELLA : E1 3451
