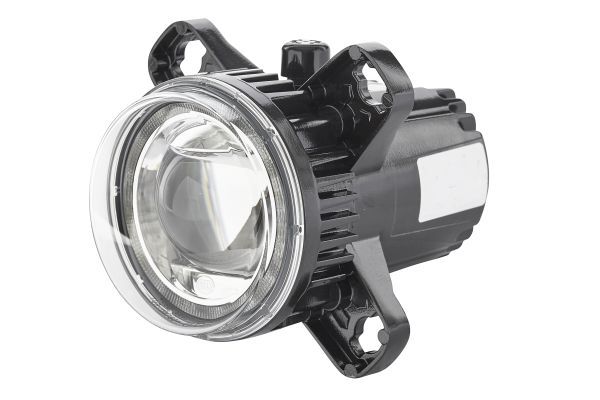

Hella 1ML012488-011 Insert, headlight
Your selected vehicle
Regular price
£335.72
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 1ML012488-011 Insert, headlight is a replacement vehicle-lighting component that provides the specified lighting or signalling function when used in a compatible lamp unit. Its catalogue specification records Fitting and Screw Connection mounting type, 3-point attachment fastening type, DE light design, and both sides fitting position. Confirm the reference, lamp type, voltage, wattage, base and fitting position before ordering; use only a road-legal specification for the intended exterior-lighting application.
Function :
Insert, headlight
Mounting Type :
Fitting
Mounting Type :
Screw Connection
Fastening Type :
3-point attachment
Light Design :
DE
Lamp Type :
LED
Voltage [V] :
12
Voltage [V] :
24
Fitting Position :
both sides

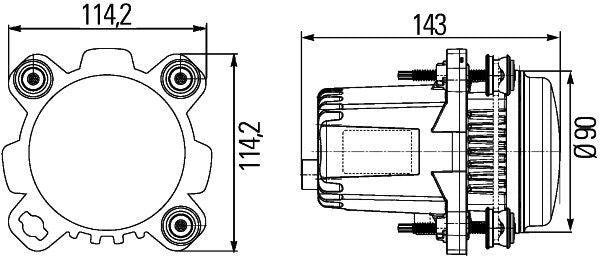

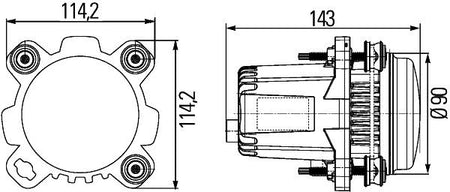

Height [mm] :
126
Length [mm] :
125
Depth [mm] :
143
Diameter [mm] :
90
Light Function :
with low beam (LED)
Number of light functions :
1
fulfils ECE standard :
R112
fulfils ECE standard :
R87
fulfils ECE standard :
R7
Plug Type ID :
FEP
Left-hand/Right-hand Traffic :
for left-hand traffic
Lens Colour :
Crystal clear
Housing Colour :
black
Illuminated Area [mm] :
62
Shape :
round
Diffusing Lens Material :
Thermoplast
Supplementary Article/Supplementary Info 2 :
Electromagnetic Compatibility (EMC)

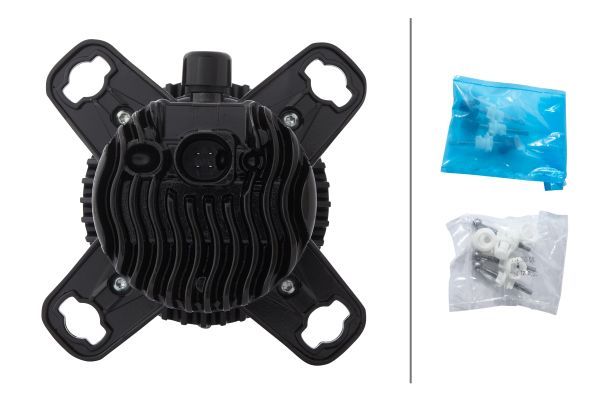

Supplementary Article/Supplementary Info :
with accessories
Quantity :
1
MPN
1ML012488011
- Vendor HELLA
- SKU 1ML012488-011
- HELLA : 90 mm LED Modul
- HELLA : E1 3831
- HELLA : E1 4090
