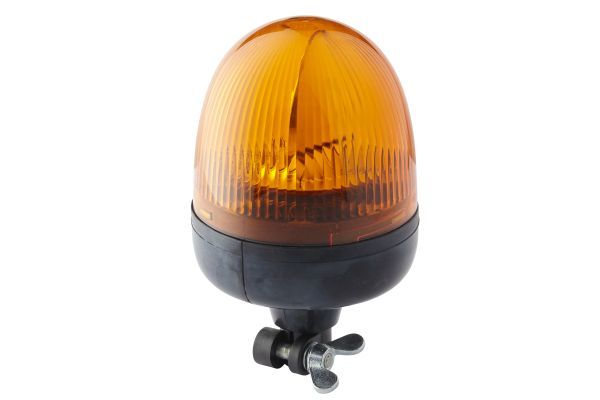

Hella 2RL009506-011 Rotating Beacon
Your selected vehicle
Regular price
£44.86
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 2RL009506-011 Rotating Beacon is a replacement vehicle-lighting component that provides the specified lighting or signalling function when used in a compatible lamp unit. Its catalogue specification records Flexible pipe sockets mounting type, Halogen light design, H1 lamp type, and IPX9K and IP5K4K protection type (ip code). Confirm the reference, lamp type, voltage, wattage, base and fitting position before ordering; use only a road-legal specification for the intended exterior-lighting application.
Function :
Rotating Beacon

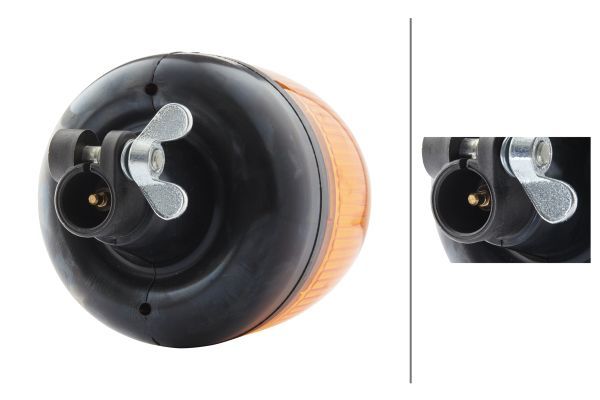

Mounting Type :
Flexible pipe sockets
Light Design :
Halogen
Voltage [V] :
24
Height [mm] :
167
Outer Diameter 1 [mm] :
135
Light Function :
with rotating warning signal
Light colour :
yellow (amber)
Supplementary Article/Supplementary Info :
with bulb
Lamp Type :
H1
Protection Type (IP Code) :
IPX9K
Protection Type (IP Code) :
IP5K4K
fulfils ECE standard :
R10
fulfils ECE standard :
R65
Registration Type :
SAE approved
Lens Colour :
yellow (amber)
Housing Colour :
black
Rotating beacon RPM [1/min] :
180
Power Consumption [W] :
70
Housing material :
EPDM (ethylene propylene diene Monomer (M-class) rubber)
Temperature range from [°C] :
-40
Supplementary Article/Supplementary Info 2 :
Electromagnetic Compatibility (EMC)
Temperature range to [°C] :
+60
Weight [g] :
720
Diffusing Lens Material :
PC (Polycarbonate)
Quantity :
1
MPN
2RL009506011
- Vendor HELLA
- SKU 2RL009506-011
- AEBI : 1150682-7
- DAF : 906565
- FRUEHAUF : L-SX0460-001
- VOLVO : 14619743
- FAUN : 7030 395 9970 7030395
- LIEBHERR : 1 047 003 2
- CLAAS : 001 719 60
- GOLDHOFER : 201718
- KÖGEL : 410.00034
- NOOTEBOOM : 0225420
- ABG : 14619743
- ATLAS COPCO : 5050022299 8801217
- YANMAR : 5050022299
- VÖGELE : 2008542
- PUTZMEISTER : 507653
- TEREX : 1305237 5050022296 5050022299 57620840 8801217 94757620840
- DOLL : 8176221
- DELVANO : 8040189
- HUMBAUR : 410.00034
- HELLA : 2XD 013 979-011
- User manual
- HELLA : E1 2076
