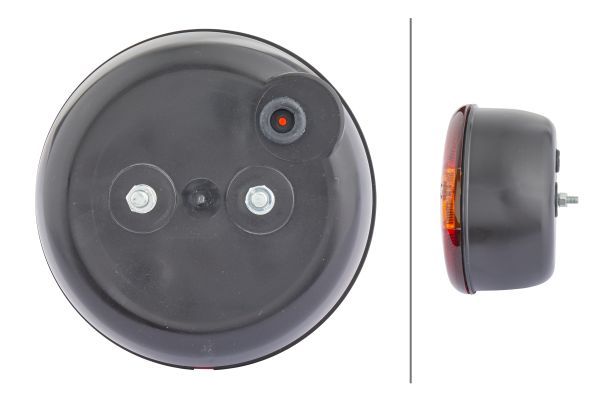

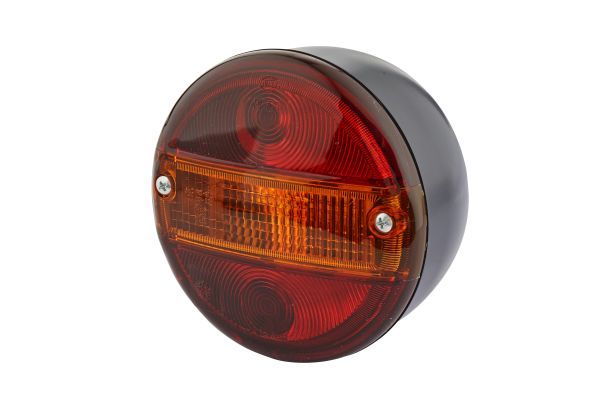

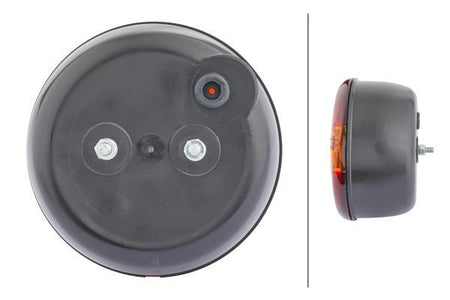

Hella 2SD001685-211 Tail Light Assembly
Your selected vehicle
Regular price
£18.25
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 2SD001685-211 Tail Light Assembly is a replacement vehicle-lighting component that provides the specified lighting or signalling function when used in a compatible lamp unit. Its catalogue specification records Bolted and mounting mounting type, for horizontal fastening fastening type, left and right fitting position, and P21W and R5W lamp type. Confirm the reference, lamp type, voltage, wattage, base and fitting position before ordering; use only a road-legal specification for the intended exterior-lighting application.
Function :
Tail Light Assembly
Mounting Type :
Bolted
Mounting Type :
mounting
Fastening Type :
for horizontal fastening
Fitting Position :
Left
Fitting Position :
Right
Lamp Type :
P21W
Lamp Type :
R5W
Light Function :
with indicator
Light Function :
with stop light
Light Function :
with taillight
Light Design :
Bulb Technology
Voltage [V] :
12
Voltage [V] :
24

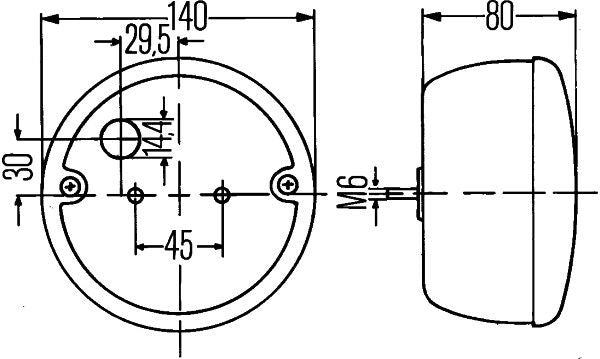

Length [mm] :
140
Height [mm] :
80
Plug Type :
Blade Terminal
Housing Type :
Synthetic Material Housing
Housing Colour :
black
Lens Colour :
red/yellow
Protection Type (IP Code) :
IP5K4K
Quantity :
1
Number of light functions :
3
Registration Type :
ECE approved
Registration Type :
ADR/GGVS approved
Supplementary Article/Supplementary Info 2 :
without bulbs
Supplementary Article/Supplementary Info 2 :
with bolts/screws
Supplementary Article/Supplementary Info 2 :
without direction indicator failure control
SVHC :
80-05-7; 4,4-isopropylidenediphenol
MPN
2SD001685211
- Vendor HELLA
- SKU 2SD001685-211
- AEBI : 97702634
- DAF : 563048
- FIAT : 42024987
- FRUEHAUF : L-SX0435-888
- IVECO : 3416722 41200526 42024987
- MAN : 90.81615-9135
- MERCEDES-BENZ : 001 544 63 03 A 001 544 63 03 A0015446303
- OPEL : V27600050
- SCANIA : 1934225 20223824
- HYUNDAI : 21EK-10180
- MASSEY FERGUSON : 56091
- O&K : 0718942 4158831
- LIEBHERR : 6 071 065 01
- JOHN DEERE : 16 51 4023
- DEMAG : 641987
- GOLDHOFER : 152626
- KÖGEL : 77896
- SPIERINGS : 402131
- AHLMANN : 4160513A
- ATLAS COPCO : 0337846
- KOMATSU : X 842 070 990 002 X 860 400 050 250 X 880 000 922 244
- VÖGELE : 3515160139
- PUTZMEISTER : 235733003
- KRONE : 5802071 5802071/0
- SCHMITZ CARGOBULL : 060516
- TEREX : 0337846 641987
- MANITOU : 4160513A
- DOLL : 8176131
- HYDREMA : 10001450
- MAFI : 000 580 0500
- REISCH : 5002586
- SOMMER : 2800036001
- BUCHER : 7653-3220
- HOLMER : 1020000350
- SCHWARZMÜLLER : 2749
- FAYMONVILLE : 3360
- FELDBINDER : 004918
- ROSENBAUER : 022345
- ALEXANDER DENNIS : DP012166
- HYUNDAI (CNJ) : 21EK-10180
- WIELTON : M0703020216
- CARNEHL : 5254
- FEBI BILSTEIN : 177125
- HELLA : 2SD 001 685-218
- HELLA : E12 7146
