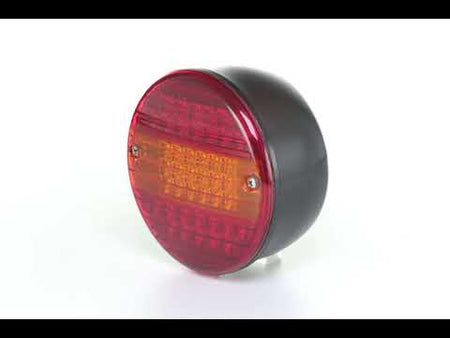

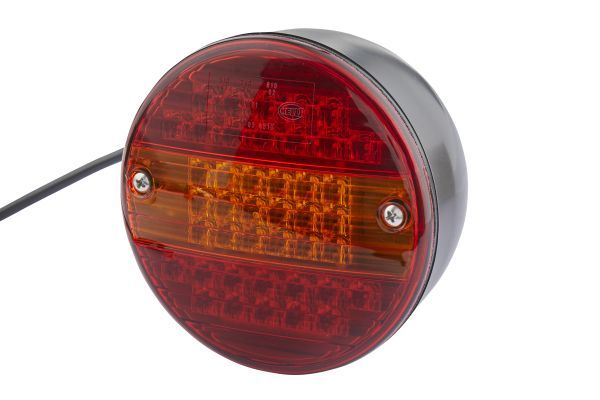

Hella 2SD001685-347 Tail Light Assembly
Your selected vehicle
Regular price
£84.51
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 2SD001685-347 Tail Light Assembly is a replacement vehicle-lighting component that provides the specified lighting or signalling function when used in a compatible lamp unit. Its catalogue specification records mounting and Bolted mounting type, for horizontal fastening fastening type, LED light design, and left and right fitting position. Confirm the reference, lamp type, voltage, wattage, base and fitting position before ordering; use only a road-legal specification for the intended exterior-lighting application.
Function :
Tail Light Assembly
Mounting Type :
mounting
Mounting Type :
Bolted
Fastening Type :
for horizontal fastening
Light Design :
LED
Lamp Type :
LED
Voltage [V] :
24
Fitting Position :
Left
Fitting Position :
Right

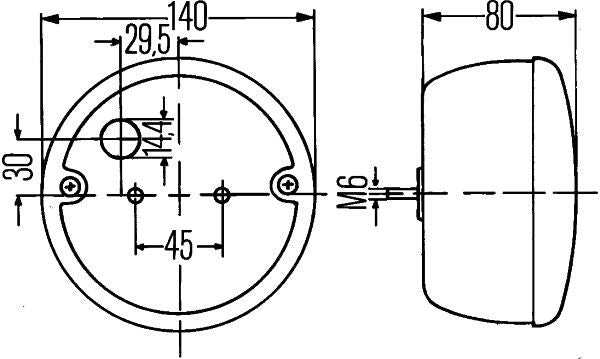

Height [mm] :
80
Length [mm] :
140
Light Function :
with indicator (LED)
Light Function :
with stop light (LED)
Light Function :
with taillight (LED)
Number of light functions :
3
Plug Type :
Blade Terminal
Protection Type (IP Code) :
IP5K4K
Registration Type :
ECE approved
Registration Type :
ADR/GGVS approved
Registration Type :
not SAE approved
Number of LEDs :
42
Cable Length [mm] :
500
Housing Type :
Synthetic Material Housing
Housing Colour :
black
Lens Colour :
red/yellow
Supplementary Article/Supplementary Info 2 :
without bulbs
Supplementary Article/Supplementary Info 2 :
without direction indicator failure control
Supplementary Article/Supplementary Info 2 :
Electromagnetic Compatibility (EMC)

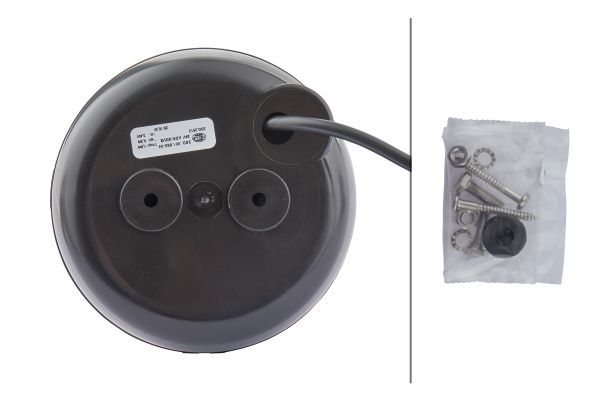

Supplementary Article/Supplementary Info 2 :
with bolts/screws
Quantity :
20
SVHC :
7439-92-1; Lead
MPN
2SD001685347
- Vendor HELLA
- SKU 2SD001685-347
- FEBI BILSTEIN : 177125
- HELLA : 2SD 357 026-001
- HELLA : E17 0102
- HELLA : E24 5911
