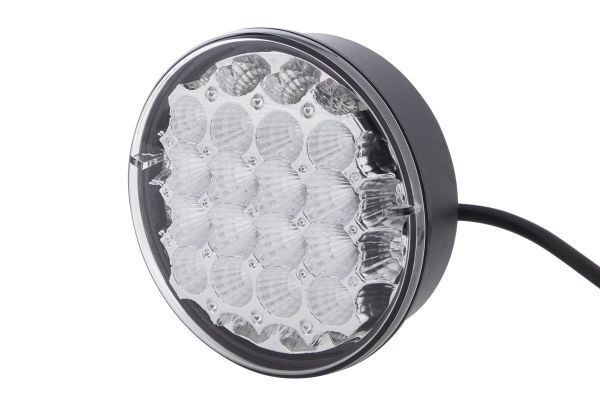

Hella 2SD344200-001 Tail Light Assembly

SKU: 2SD344200-001
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£114.25 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

The Hella 2SD344200-001 Tail Light Assembly is a replacement vehicle-lighting component that provides the specified lighting or signalling function when used in a compatible lamp unit. Its catalogue specification records Bolted and mounting mounting type, for horizontal fastening and for vertical fastening fastening type, left and right fitting position, and LED lamp type. Confirm the reference, lamp type, voltage, wattage, base and fitting position before ordering; use only a road-legal specification for the intended exterior-lighting application.

Function : Tail Light Assembly
Mounting Type : Bolted
Mounting Type : mounting
Fastening Type : for horizontal fastening
Fastening Type : for vertical fastening
Fitting Position : Left
Fitting Position : Right
Lamp Type : LED
Light Function : with indicator (LED)
Light Function : with stop light (LED)
Light Function : with taillight (LED)
Light Design : LED
LED Colour : yellow (amber)
LED Colour : red
Voltage [V] : 12
Voltage [V] : 24
Current Strength [A] : 0.24

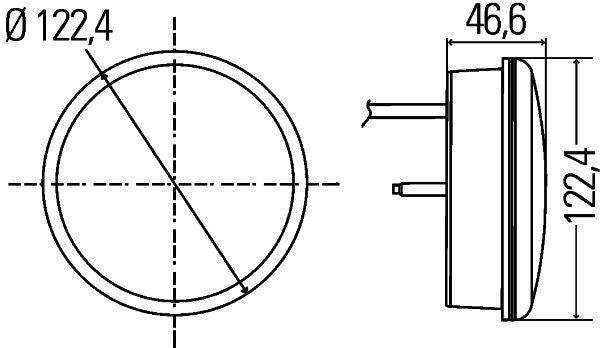

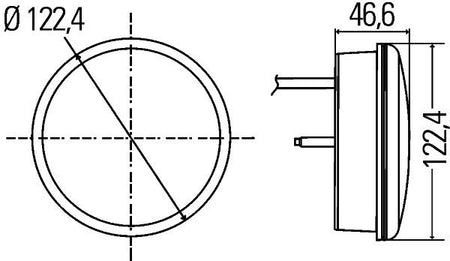

Length [mm] : 123
Height [mm] : 53
Diameter [mm] : 122.5
Cable Length [mm] : 500
Plug Type : open cable ends
Housing Type : Synthetic Material Housing
Housing Colour : black
Lens Colour : Crystal clear
Protection Type (IP Code) : IP6K9K
Quantity : 1
Number of light functions : 3
Number of LEDs : 24
Registration Type : ECE approved
Registration Type : ADR/GGVS approved
Tightening Torque [Nm] : 4
Supplementary Article/Supplementary Info 2 : with screw
SVHC : 7439-92-1; Lead
MPN 2SD344200001
  • Vendor HELLA
  • SKU 2SD344200-001
  • Barcode 6416386914802
  • DAF : 1529554
  • SCANIA : 1936427 20223599 2197469 N005342
  • MANITOU : 306126
  • SOMMER : 2882000001
  • HELLA : 2SD 344 200-007
  • User manual
  • HELLA : E4 12371
  • HELLA : E4 12658
  • HELLA : E4 14198
