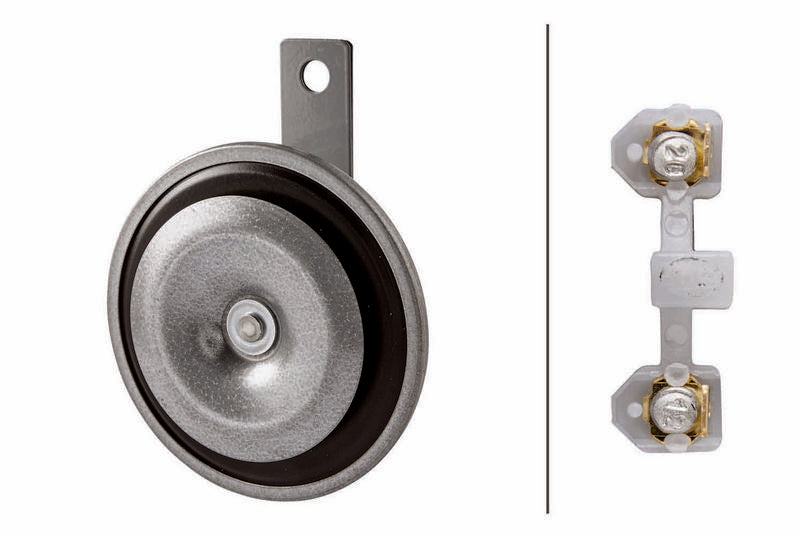

Hella 3AL002952-811 Signal Horn
Your selected vehicle
Regular price
£11.94
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 3AL002952-811 Signal Horn is a replacement vehicle electrical component that provides the switching, connection or actuation function stated in its catalogue specification. Its catalogue specification records 12 V electrical rating, IPX9K protection type (ip code), electric operation, and Flat Plug-in Connector mounting type. Match the reference, voltage, connector, pin count, mounting and vehicle application before fitting; isolate the circuit and diagnose the underlying fault before replacement.
Function :
Signal Horn
Voltage [V] :
12
Power Consumption [W] :
66
Sound Level [dB(A)] :
105
Frequency Range [Hz] :
400
Power consumption [A] :
5.5
Protection Type (IP Code) :
IPX9K
fulfils ECE standard :
R28
Registration Type :
ECE approved
Housing Colour :
grey/black
Quantity :
1
Signal :
High Tone
Operating Mode :
Electric

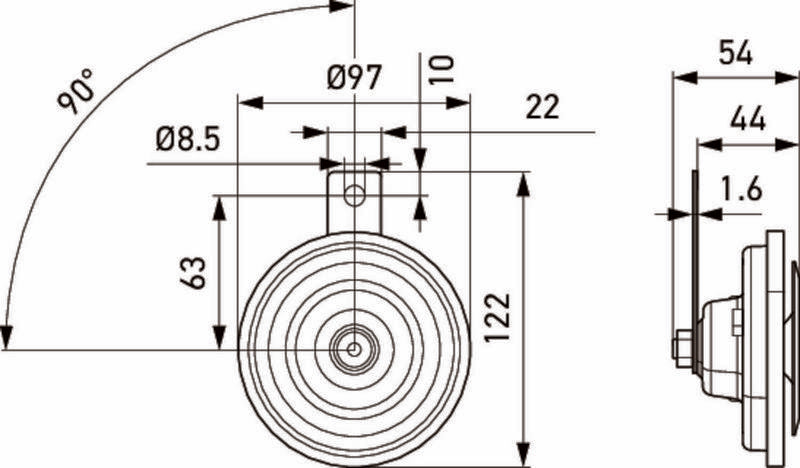

Overall Height [mm] :
122
Depth [mm] :
54
Diameter [mm] :
97
Temperature range from [°C] :
-40
Temperature range to [°C] :
+60
Mounting Type :
Flat Plug-in Connector
Supplementary Article/Supplementary Info 2 :
with E quality seal
MPN
3AL002952811
- Vendor HELLA
- SKU 3AL002952-811
- BMW : 1 367 310 1 367 312 61 33 1 367 310 61 33 1 367 312
- DAF : 867508
- FORD : 1 825 723
- MERCEDES-BENZ : 001 542 86 20 002 542 04 20 002 542 79 20 003 542 07 02 003 542 07 20 003 542 13 20 003 542 17 20 003 542 31 20 A 001 542 86 20 A 002 542 04 20 A 002 542 79 20 A 003 542 07 02 A 003 542 07 20 A 003 542 13 20 A 003 542 17 20 A 003 542 31 20
- OPEL : 09255071 12 28 057
- SCANIA : 589680
- VOLVO : 11802744 80778319
- VW : 111 951 213 D 411 951 213
- AGRIA : 4767 5
- CASE IH : 216547
- HOLDER : 0001801206 021098
- MASSEY FERGUSON : 1 678 404 M1 1 678 404 MO1A 4 355 332 M1
- O&K : 0216547 0718811
- CLAAS : 0071729.2
- FENDT : 1 678 404 M1 4 355 332 M1 72481193 F 238 900 020 041 Y 253 101 1
- JOHN DEERE : AL 12 135 AZ 12 135
- DEMAG : 966527
- HAKO : 90-00553-9
- AHLMANN : 4153088A
- KOMATSU : 000 1801 206 X86097518000 Y253 101 1
- KRAMER : 1000156059
- VALMET : 589680
- AGCO : 4355332M1 72481193
- YANMAR : 5050022200
- HYMER : 0866730-00
- TEREX : 3600136023 5050022200. 6108843M1
- JUNGHEINRICH : 50428801
- MANITOU : 945995
- AMAZONE : ZU030
- BOBCAT : 100417-11D 100417-11D_100
- AMMANN : 1579727
- ISEKI : 2310-4015-00-A
- DOOSAN : 100417-11D
- BUCHER : 30-14
- AGRIFAC : 7709415
- FELDBINDER : 008766
- HELLA : 3AL 002 952-887
- MEYLE : 100 951 0007
- HELLA : E1 20011
- HELLA : M 26
