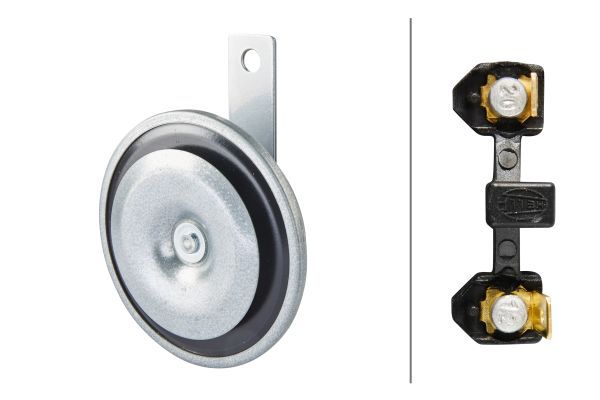

Hella 3AL002952-871 Signal Horn
Your selected vehicle
Regular price
£12.20
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 3AL002952-871 Signal Horn is a replacement vehicle electrical component that provides the switching, connection or actuation function stated in its catalogue specification. Its catalogue specification records 24 V electrical rating, IPX7 and IPX9K protection type (ip code), electric operation, and Flat Plug-in Connector mounting type. Match the reference, voltage, connector, pin count, mounting and vehicle application before fitting; isolate the circuit and diagnose the underlying fault before replacement.
Function :
Signal Horn
Voltage [V] :
24
Power Consumption [W] :
84
Sound Level [dB(A)] :
105
Frequency Range [Hz] :
335
Power consumption [A] :
3.5
Protection Type (IP Code) :
IPX7
Protection Type (IP Code) :
IPX9K
fulfils ECE standard :
R28
Registration Type :
ECE approved
Housing Colour :
grey
Signal :
Low Tone
Quantity :
1
Operating Mode :
Electric

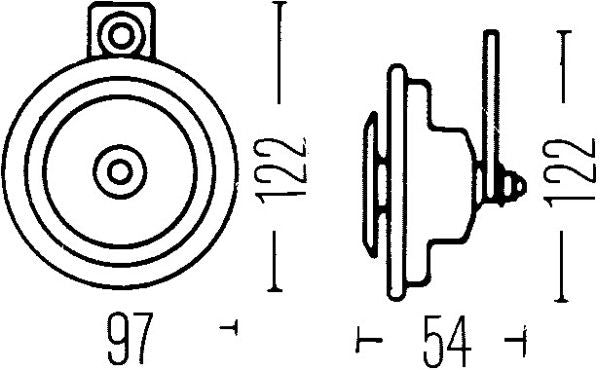

Overall Height [mm] :
122
Diameter [mm] :
97
Depth [mm] :
54
Temperature range from [°C] :
-40
Temperature range to [°C] :
+60
Mounting Type :
Flat Plug-in Connector
Supplementary Article/Supplementary Info 2 :
with E quality seal
Supplementary Article/Supplementary Info 2 :
with moisture protection
MPN
3AL002952871
- Vendor HELLA
- SKU 3AL002952-871
- DAF : 867509
- FAUN : 99700033262
- CASE IH : 2974166
- O&K : 0033262 1709056 2974166
- STEINBOCK : 000 948 050 09366
- LIEBHERR : 6 140 031 08 6 200 008
- DEMAG : 05843140
- STILL : 0009731503 401754 8401754 930673
- TIMBERJACK : F005312
- LINDE : 000 973 15 03
- SPERRY NEW HOLLAND : 2974166 87620003
- TEREX : 3600136113 5050022226
- JUNGHEINRICH : 28300010
- AMMANN : 4-5358020334
- BUCHER : 09301505-0 30-394
- HOLMER : 1021038222
- HELLA : E1 20011
- HELLA : M 26
