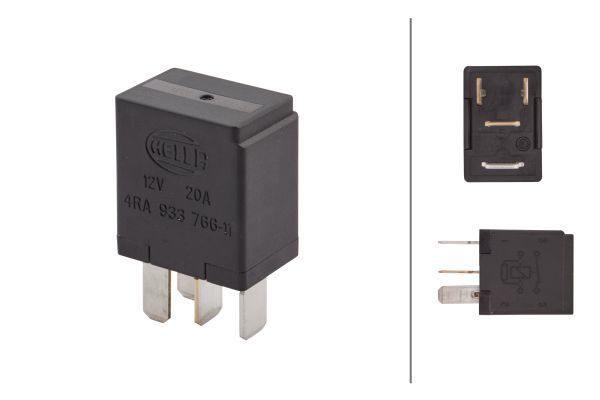

Hella 4RA933766-111 Relay, main current
Regular price
£4.96
inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK delivery
Free shipping available on all orders across the UK.
- Royal Mail Tracked 48 = Free
- Royal Mail Tracked 24 = £2.99
- FedEx Next Day = £4.99
Function :
Relay, main current
Supplementary Article/Supplementary Info 2 :
with resistor
Supplementary Article/Supplementary Info :
without holder
Switch Function :
Normally Open Contact
Protection Type (IP Code) :
IP54

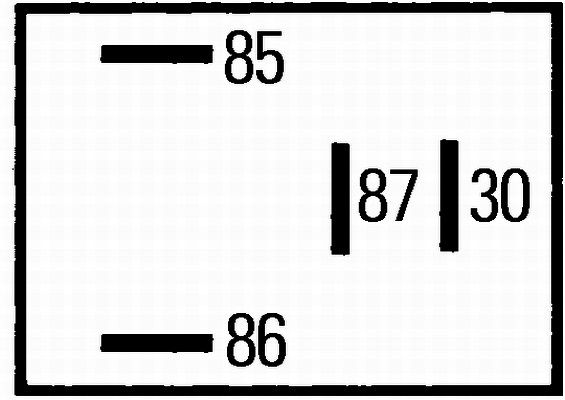

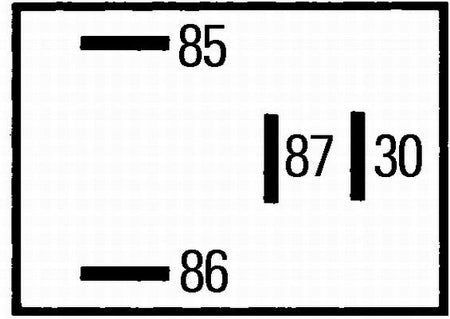

Number of pins :
4
Voltage [V] :
12
Temperature range from [°C] :
-40
Temperature range to [°C] :
+125
Colour :
black
Inductive Load [A] :
20
Capacitive Load [A] :
20
Ohmic Load [A] :
20

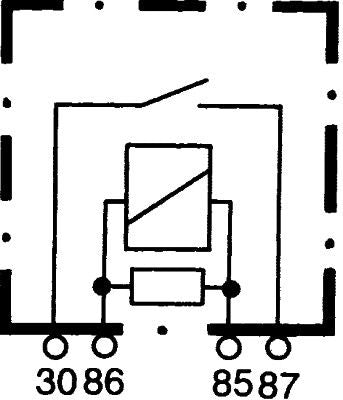

Wiring Diagramme :
S2
Plug Type ID :
C
Relay function :
Comfort Equipment Variant (trim package)
Relay function :
Park Distance Control
Relay function :
ABS
Relay function :
Low Beam
Relay function :
High Beam
Relay function :
Heated rear window
Relay function :
ESP
Relay function :
Window Regulator
Relay function :
Starter
Relay function :
Klaxon
Relay function :
Air Conditioning
Relay function :
Light switch
Relay function :
Fan, heater/air conditioning
Relay function :
Interior Blower
Relay function :
Clamp 15
Relay function :
Daytime Running Light
Relay function :
Convertible Roof Hydraulics
Relay function :
Central Locking
Relay function :
ABS recovery pump
Relay function :
Exterior Mirror Adjustment
Relay function :
Heatable exterior mirror
Relay function :
Electric booster heater
Relay function :
Interior Lighting
Relay function :
Clamp 15R
Relay function :
Clamp 87
Relay function :
Fuel Pump
Relay function :
Oxygen Sensor
Relay function :
Fan, engine cooling
Relay function :
Front Fog Light
Relay function :
Windscreen Wiper
Relay function :
Windscreen Wiper Rest Heating
Relay function :
Sunroof
Relay function :
Secondary Air System
Relay function :
Seat Heating
MPN
4RA933766111
- Vendor HELLA
- SKU 4RA933766-111
- MERCEDES-BENZ : 002 542 11 19 002 542 83 19 002 542 84 19 002 545 11 19 A 002 542 11 19 A 002 542 83 19 A 002 542 84 19 A 002 545 11 19
- TOYOTA : 9098702028
- STEINBOCK : 510 84965
- LIEBHERR : 9 000 024 23
- HAKO : 0873320017
- YANMAR : 5050650992
- MAYBACH : 002 542 11 19 002 542 83 19 002 542 84 19 002 545 11 19 A 002 542 11 19 A 002 542 83 19 A 002 542 84 19 A 002 545 11 19
- TEREX : 5050650990 5050650992
- JUNGHEINRICH : 51084965
- MANITOU : 52675572
- BOSCH : 0 332 011 007
- BOSCH : 0 332 017 300
- BOSCH : 0 986 AH0 300
- MEYLE : 014 830 0006
