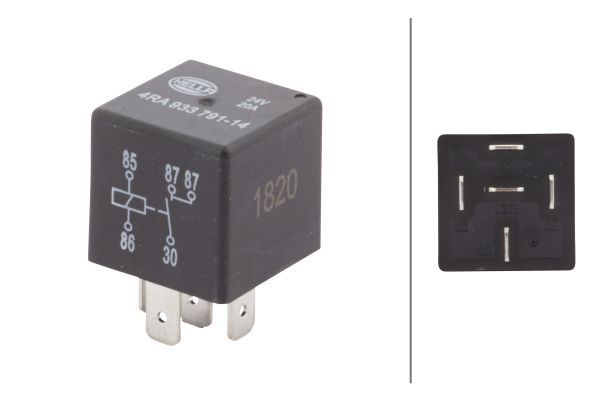

Hella 4RA933791-141 Relay, main current
Your selected vehicle
Regular price
£8.30
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 4RA933791-141 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, 20A capacity at 24v, -40 °C temperature range from, and +125 °C temperature range to. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Voltage [V] :
24
Capacity at 24V :
20A
Number of pins :
5
Switch Function :
Normally Open Contact
Temperature range from [°C] :
-40
Temperature range to [°C] :
+125
Inductive Load [A] :
5
Capacitive Load [A] :
5
Rated current [A] :
20
Ohmic Load [A] :
30
MPN
4RA933791141
- Vendor HELLA
- SKU 4RA933791-141
- DAF : 1523982 1527511 1541939
- MAN : 81.25902-0439
- SCANIA : 2782076 433294
- NEOPLAN : 1505.521.00
- TEREX : 5350248630
- BOSCH : 0 332 014 213
- BOSCH : 0 332 015 008
- BOSCH : 0 332 019 213
- BOSCH : 0 986 332 202
- BOSCH : 0 986 AH0 603
