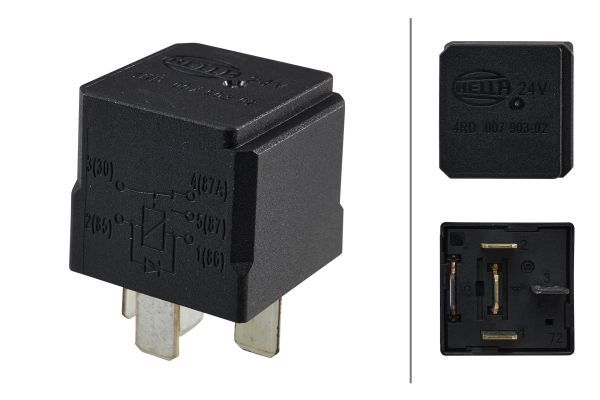

Hella 4RD007903-021 Relay, main current
Your selected vehicle
Regular price
£8.73
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 4RD007903-021 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records with diode, IP54 protection type (ip code), 24 V electrical rating, and B1 plug type id. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Supplementary Article/Supplementary Info 2 :
with diode
Supplementary Article/Supplementary Info :
without holder
Protection Type (IP Code) :
IP54
Voltage [V] :
24
Capacity at 24V :
10/20A
Colour :
black
Inductive Load [A] :
16
Capacitive Load [A] :
15
Capacitive Load [A] :
5
Ohmic Load [A] :
20

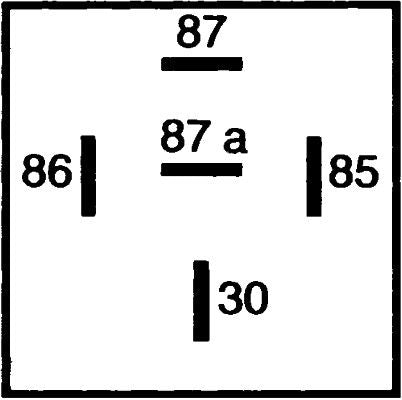

Number of pins :
5

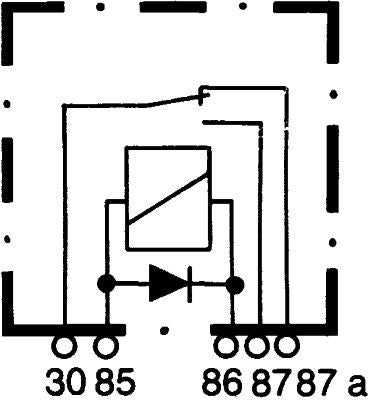

Wiring Diagramme :
W3
Switch Function :
Normally Closed Contact
Switch Function :
Normally Open Contact
Switch Function :
Changeover Contact
Plug Type ID :
B1
Temperature range [°C] :
80
MPN
4RD007903021
- Vendor HELLA
- SKU 4RD007903-021
- MACK : 4381 87427B
- BARKAS : D921830.0002
- STEINBOCK : 511 39816
- GOLDHOFER : 153833
- JCB : 716/11100
- KÖGEL : 134306
- AHLMANN : 23132687
- HYSTER : 1616235
- KOMATSU : 20K 0632 130 20K0632130
- KRONE : 505821657
- LANGENDORF : 1204689
- NOVABUS : N11613
- TEREX : 1186320
- JUNGHEINRICH : 51139816
- SOLARIS : 1082-004597-00 1570 050 000
- DOOSAN : 9544-9001
- KAMAG : 134306
- ALEXANDER DENNIS : 29-0019-000
- CARNEHL : 26543
- BOSCH : 0 332 209 204
- BOSCH : 0 986 332 403
- BOSCH : 0 986 AH0 612
- FEBI BILSTEIN : 45400
- HELLA : 4RD 933 332-447
- HELLA : 4RD007903021
