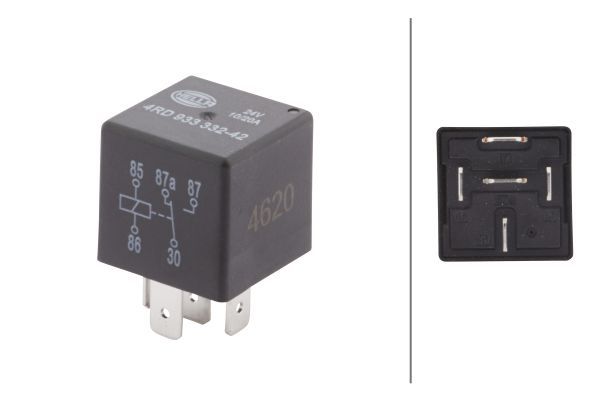

Hella 4RD933332-421 Relay, main current
Your selected vehicle
Regular price
£4.96
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 4RD933332-421 Relay, main current is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records 24 V electrical rating, 20A/10A capacity at 24v, -40 °C temperature range from, and +125 °C temperature range to. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Relay, main current
Voltage [V] :
24
Capacity at 24V :
20A/10A
Switch Function :
Changeover Contact
Number of pins :
5
Temperature range from [°C] :
-40
Temperature range to [°C] :
+125
Inductive Load [A] :
5
Capacitive Load [A] :
5
Rated current [A] :
20
Ohmic Load [A] :
20
Quantity :
1
MPN
4RD933332421
- Vendor HELLA
- SKU 4RD933332-421
- DAF : 118159 1403871 867515
- FIAT : 1164018
- FORD : 5 100 820 001 26
- IVECO : 1164018 41040442 4718222
- MAN : 81.25902-0102 81.25902-0130 81.25902-0171 81.25902-0199 81.25902-0248 81.25902-0435 81.25902-0461
- MERCEDES-BENZ : 000 545 84 05 000 545 84 25 000 820 17 10 001 531 02 60 A 000 545 84 05 A 000 545 84 25 A 000 820 17 10 A 001 531 02 60
- RENAULT : 5000084772
- SCANIA : 237722 243460 243879 400782 SP1068037
- FAUN : 99700589082
- NEOPLAN : 1102.569.6 1505.513.00
- CASE IH : 198161A1
- LIEBHERR : 6 002 153 6 202 511
- FENDT : R1 863 700 014
- SCHMITZ CARGOBULL : 062864 1123
- MANITOU : 681116
- SOMMER : 2801566001
- WEIRO : 12308
- SCHWARZMÜLLER : 251713
- FELDBINDER : 010683 010683WIRD ERSETZT
- ALEXANDER DENNIS : DP075367
- SANY : B240700000006
- HÜFFERMANN : 2-ES0001-001
- BOSCH : 0 332 204 101
- BOSCH : 0 332 204 118
- BOSCH : 0 332 204 201
- BOSCH : 0 332 204 202
- BOSCH : 0 332 209 151
- BOSCH : 0 332 209 211
- BOSCH : 0 986 332 401
- BOSCH : 0 986 332 405
- BOSCH : 0 986 AH0 615
- BOSCH : 0 986 AH0 811
- FEBI BILSTEIN : 11931
- FEBI BILSTEIN : 35475
- FEBI BILSTEIN : 45400
