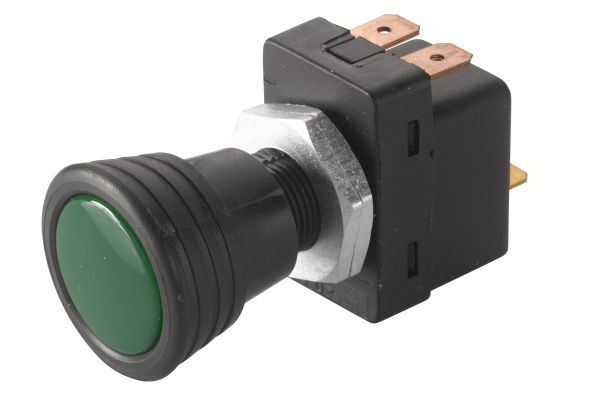

Hella 6ED004778-001 Switch
Your selected vehicle
Regular price
£13.94
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 6ED004778-001 Switch is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records Pull Actuation actuation type, Bolted mounting type, Halogen light design, and W1,2W lamp type. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Switch
Actuation Type :
Pull Actuation
Mounting Type :
Bolted
Supplementary Article/Supplementary Info :
with bulb
Voltage [V] :
12

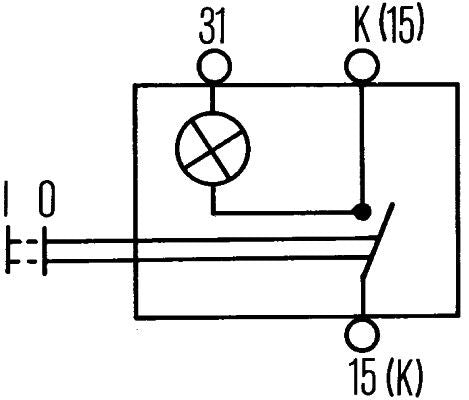

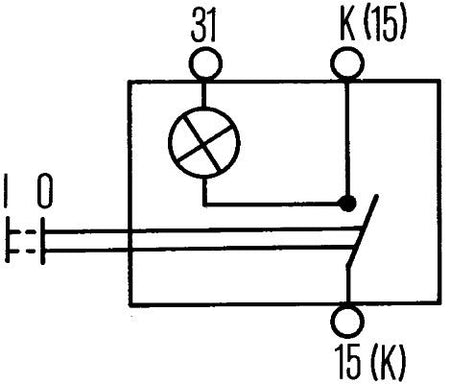

Number of connectors :
3
Capacity at 12V :
8A
Capacity at 24V :
4A

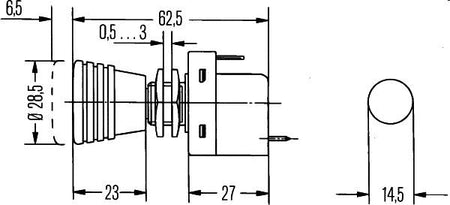

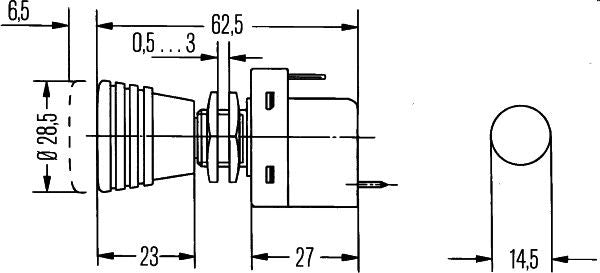

Bore Diameter [mm] :
14.5
Light Design :
Halogen
Lamp Type :
W1,2W

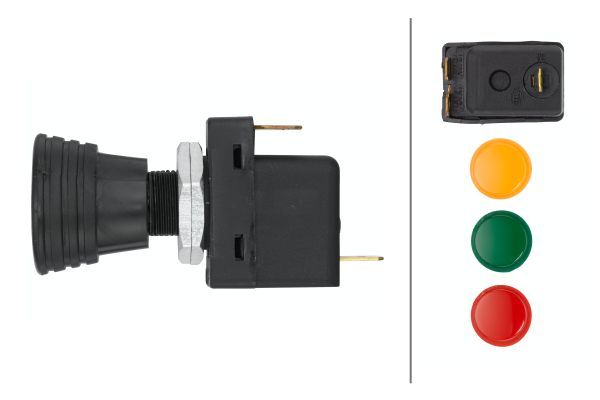

Switch Lighting :
green
Switch Lighting :
Orange
Switch Lighting :
red
Switch Function :
On/Off Switch
SVHC :
117-81-7; Bis (2-ethylhexyl)phthalate (DEHP)
SVHC :
7439-92-1; Lead
MPN
6ED004778001
- Vendor HELLA
- SKU 6ED004778-001
- AUDI : 4A0 035 787 KDWHL09246 KDWHLO9246
- DAF : 867520
- KÄSSBOHRER : 7.312.020.000.0
- MACK : 4381 80201
- OPEL : 17 76 212 90188724 E-X0531306AA
- PORSCHE : 914.613.419.11
- SCANIA : 1906757 SP1050899
- VW : 4A0 035 787 AC8570001 KDWHLO9246
- HITACHI : 503.425
- MASSEY FERGUSON : 1 654 364 M1 50976
- EVOBUS : 7.312.018.000.0
- CATERPILLAR : 316-2368
- ZIEGLER : 000062
- SCHMITZ CARGOBULL : 062559
- WEIDEMANN : 1000205006
- DON-BUR : GE-00-091
- REISCH : 5003526
- WEIRO : 15463
- ISEKI : 2310-4020-00-A
- VDL : 20500067 500067
- AGRIFAC : 7774025
- ROSENBAUER : 008348
