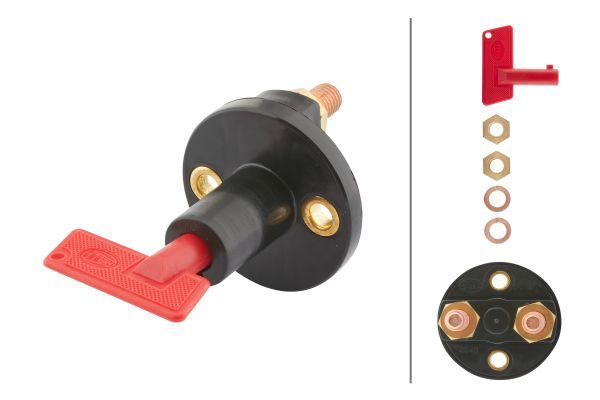

Hella 6EK002843-001 Main Switch, battery
Your selected vehicle
Regular price
£15.46
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Hella 6EK002843-001 Main Switch, battery is a replacement sensing or control component that provides an electrical or mechanical input used by the relevant vehicle system. Its catalogue specification records Bolted mounting type, max 1000A/10 sek/12V capacity at 12v, Rotary Operation actuation type, and with nuts. Match the reference, connector, operating specification, fitting location and vehicle application before ordering; diagnosis should confirm the component rather than relying on a fault code alone.
Function :
Main Switch, battery
Mounting Type :
Bolted

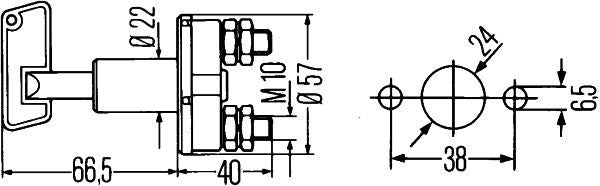

Connecting thread :
M10
Number of connectors :
2
Capacity at 12V :
max 1000A/10 sek/12V
Actuation Type :
Rotary Operation
DIN/ISO :
40050-IPX2
Thread Pitch [mm] :
1.5

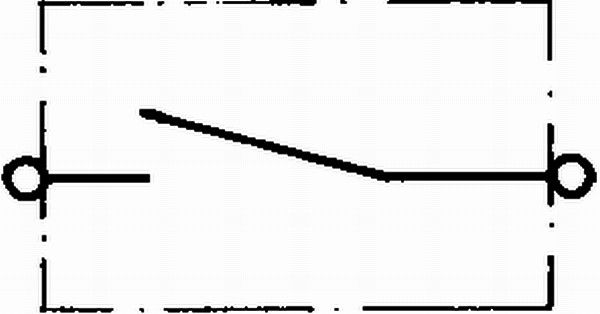

Switch Function :
Normally Open Contact
Current Strength [A] :
50
Supplementary Article/Supplementary Info :
with nuts
SVHC :
7439-92-1; Lead
MPN
6EK002843001
- Vendor HELLA
- SKU 6EK002843-001
- AUDI : KDWHLO9085
- BMW : 4 192 725 8 356 483
- DAF : 1359968
- IVECO : 5801290643 E5801290643
- MERCEDES-BENZ : 000 545 03 08 000 545 49 08 000 545 97 08 A 000 545 03 08 A 000 545 49 08 A 000 545 97 08 A0005454908
- SCANIA : SP1050361
- VOLVO : 1263488
- VW : KDWHLO9085
- FAUN : 5240-775 5240-875
- CASE IH : 2168586
- O&K : 2168586
- SAME : 06262072
- STEINBOCK : 632 418
- CLAAS : 032 472 70 034 999 20
- DEUTZ-FAHR : 062 62072 06288179 626 1016
- JOHN DEERE : 57 04 6
- EVOBUS : 000 545 49 08 000 545 97 08 A0005454908
- KÖGEL : 87369
- SPIERINGS : 405251
- STILL : 527489
- CATERPILLAR : 03247270 216-8586
- KRAMER : 000 333 96 08 1000027437 27437
- HYMER : 0416390 0477208 0864906 9974640 9974970
- PAUS : 528899
- LANGENDORF : 1134810
- SCHMITZ CARGOBULL : 061638 1145232
- TEREX : 0335888 3600133125 5350538959 5350638999
- JUNGHEINRICH : 00632418 71344040
- MANITOU : T 446725
- KNAUS : 605147 K605147
- BOBCAT : 53846.2_100 538462
- SOLARIS : 1544-761-000
- MERLO : CN372
- LINDNER : 3002543
- AGRIFAC : 7748105
- HUMBAUR : 74 02 022
- SCHWARZMÜLLER : 26371
- FELDBINDER : 065167
- ROSENBAUER : 008285
- LAIKA : 0477208
- HELLA : 6EK 002 843-007
- User manual
- HELLA : S 33
