Lemforder 1150503 Tie Rod End
Your selected vehicle
Regular price
£29.09
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

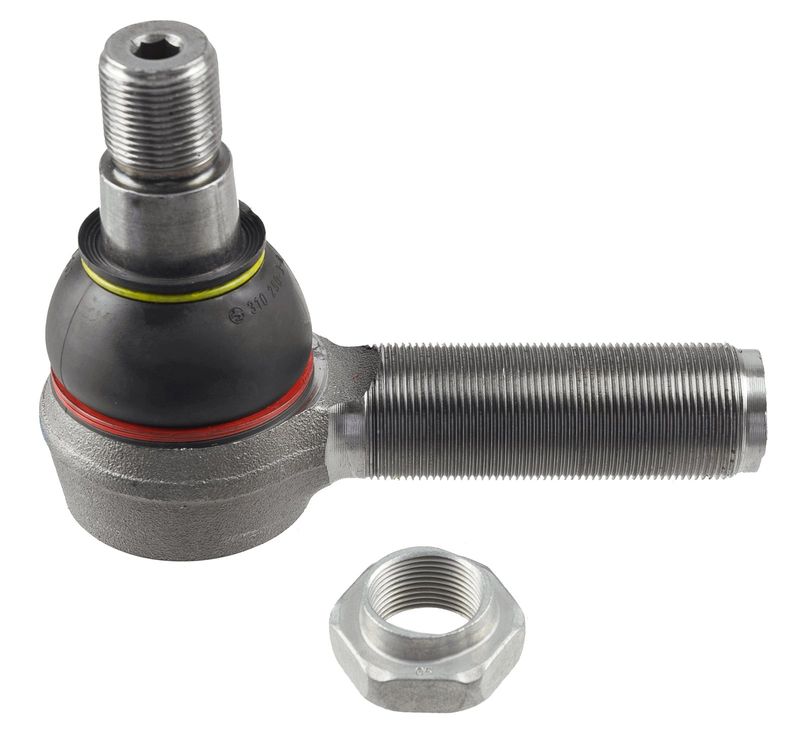

The Lemforder 1150503 Tie Rod End is a replacement steering or suspension joint component that locates connected chassis parts while allowing their intended movement. Its catalogue specification records 120 mm length, M30x1,5 mm external thread, with right-hand thread thread type, and with fastening material and with self-locking nut. Match the reference, side, axle position, joint or thread dimensions and vehicle application before fitting; steering geometry should be checked after replacement where applicable.
Function :
Tie Rod End
Length [mm] :
120
External Thread [mm] :
M30x1,5
Thread Type :
with right-hand thread
Cone Size [mm] :
30
Supplementary Article/Supplementary Info 2 :
with fastening material
Supplementary Article/Supplementary Info 2 :
with self-locking nut
SVHC :
No information available, please contact the manufacturer!
- Vendor LEMFORDER
- SKU 1150503
- SCANIA : 1370720 1420822 1738381 1767328 1899667 1914427 2051166 283784 395010
- VAN HOOL : 10 984 432 11241762 63 430 12 50
- VOLVO : 20350395 20742127 20745043 20821160 20862494 85114212
- BOVA : 20 264 074
- DENNIS : 655357
- FAUN : 99708408375
- HEULIEZ : 2233501
- NEOPLAN : 1101 9659 1203 250 00 1223 532 02 14013769 N1.01102.0300
- SISU : 1605300183 1605300184
- TATA : 218633100116 289232103002
- HYUNDAI : 56811-7M100
- BMC : 9P914836
- DAF : 0607981 0698450 1149907 1152350 1257890 1454169 1603789 1618048 ACHF060
- SOLARIS : 0801 211 835 0820 352 140
- VDL : 20 264 074 30017788
- IKARUS : 4030 R 11377
- IVECO : 2966252 2969808 42483386 42488269 42489573 42489594 42491638 42537936 4802443 4833822 4833829 8122752 93194576
- KÄSSBOHRER : 6.851.475.000 6.851.480.000 6.851.484.000 6.851.531.000 8.226.236.059
- CASE IH : 3221270R91
- LIEBHERR : 5718 666 08 7250 100 08
- MAN : 81.95301-0016 81.95301-0075 81.95301-0084 81.95301-0088 81.95301-6048 81.95301-6049 81.95301-6053 81.95301-6090 81.95301-6108 81.95301-6112 81.95301-6126 81.95301-6143 81.95301-6149 81.95301-6154 81.95301-6156 81.95301-6178 81.95301-6194 81.95301-6206 81.95301-6224 81.95301-6234 81.95301-6242 81.95301-6252 81.95301-6274 81.95301-6278 81.95301-6308 81.95301-6312 81.95301-6350 81.95301-6352 81.95301-6374
- RENAULT TRUCKS : 00 03 406 169 00 03 406 236 00 03 406 251 00 03 406 254 00 03 406 260 00 03 406 261 50 00 288 360 50 00 590 236 50 00 804 824 50 00 819 349 50 01 836 298 50 01 858 760 50 01 858 773 74 20 894 052 77 01 011 412
- MERCEDES-BENZ : 000 338 73 10 000 460 03 48 000 460 28 48 000 460 29 48 000 460 89 48 001 460 02 48 001 460 08 48 001 460 12 48 001 460 18 48 001 460 22 48 001 460 77 48 002 460 01 48 A 000 338 73 10 A 000 460 03 48 A 000 460 28 48 A 000 460 29 48 A 000 460 89 48 A 001 460 02 48 A 001 460 08 48 A 001 460 12 48 A 001 460 18 48 A 001 460 22 48 A 001 460 77 48 A 002 460 01 48
- DEUTZ-FAHR : 04311552
- EVOBUS : 000 338 73 10 8.226.236.059 A 000 338 73 10
- FODEN TRUCKS : Y04505003
- JCB : 458/M1380 477/49873
- PREVOST : 611128
- RABA : 754376
- BORG & BECK : BTR32195
- BORG & BECK : BTR32440
- BORG & BECK : BTR32441
- BORG & BECK : BTR32807
- FEBI BILSTEIN : 02954
- FEBI BILSTEIN : 07280
- FEBI BILSTEIN : 27207
- FEBI BILSTEIN : 29219
- FEBI BILSTEIN : 36136
- FEBI BILSTEIN : 44521
- MONROE : L90G31
- SKF : VKDCV 06001
- TRW : JTE0201
- TRW : JTE4072
- LEMFÖRDER : C:30/TH:M30x1,5R/L:120
