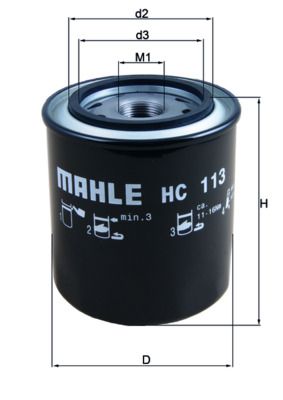

Mahle HC113 Hydraulic Filter, automatic transmission
Your selected vehicle
Regular price
£15.97
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Mahle HC113 Hydraulic Filter, automatic transmission is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 96 mm diameter, 72.5 mm diameter 2, and 63.1 mm seal ring diameter. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Hydraulic Filter, automatic transmission
Filter type :
Spin-on Filter
Diameter [mm] :
96
Height [mm] :
117
Thread Size :
M23x1,5
Height 1 [mm] :
117
Diameter 2 [mm] :
72.5
Seal Ring Diameter [mm] :
63.1
Packaging length [cm] :
11
Packaging width [cm] :
11
Packaging height [cm] :
12
Net Weight [g] :
634
- Vendor MAHLE
- SKU HC113
- MAN : 81321180021 81321180027
- SCANIA : 1301696 1768402 2002705
- BOSCH : 0 451 103 330
- BOSCH : F 026 407 197
- FEBI BILSTEIN : 38975
- HENGST FILTER : H24W05
- LUCAS : LFHS100
- MANN-FILTER : W 9023/1
- UFI : 80.059.00
- WIX FILTERS : 92017E
- MAHLE : 70349468
