MAHLE

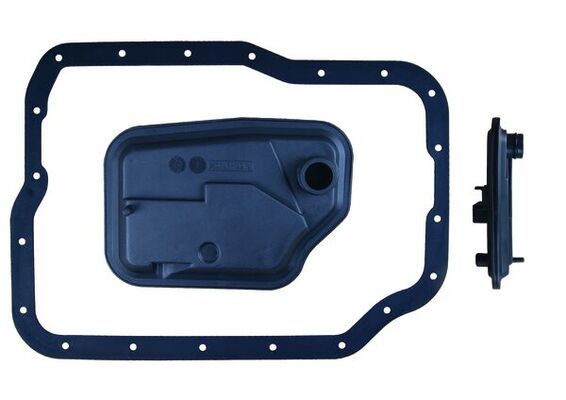

Mahle HX149D Hydraulic Filter, automatic transmission

SKU: HX149D
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£23.59 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 122 HP 02/2007 - 09/2010
2.0 TDCi 1997 CCM 133 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 101 HP 02/2007 - 09/2010
1.6 1596 CCM 100 HP 02/2007 - 09/2010
1.8 1798 CCM 125 HP 02/2007 - 09/2010
1.8 Flexifuel 1798 CCM 125 HP 02/2007 - 09/2010
2.0 1999 CCM 145 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 90 HP 02/2007 - 09/2010
1.6 TDCi 1560 CCM 109 HP 02/2007 - 09/2010
2.0 TDCi 1997 CCM 136 HP 02/2007 - 09/2010
2.0 TDCi 1997 CCM 110 HP 02/2008 - 09/2010
1.8 TDCi 1753 CCM 115 HP 02/2007 - 09/2010
2.0 CNG 1999 CCM 145 HP 04/2009 - 09/2010
2.0 LPG 1999 CCM 145 HP 06/2008 - 09/2010
FIESTA Mk IV (JA_, JB_)
Description Cylinder Capacity Horse Power Year
1.6 16V Sport 1596 CCM 103 HP 02/2000 - 01/2002
1.8 DI 1753 CCM 75 HP 04/2000 - 01/2002
FIESTA V (JH_, JD_)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 80 HP 11/2001 - 06/2008
1.3 1299 CCM 60 HP 11/2001 - 06/2008
1.3 1299 CCM 69 HP 11/2001 - 06/2008
1.6 16V 1596 CCM 100 HP 11/2001 - 06/2008
1.6 TDCi 1560 CCM 90 HP 11/2004 - 06/2008
FIESTA V Van
Description Cylinder Capacity Horse Power Year
1.3 1299 CCM 69 HP 10/2003 - 07/2005
1.4 TDCi 1399 CCM 68 HP 10/2003 - 12/2010
FIESTA VI (CB1, CCN)
Description Cylinder Capacity Horse Power Year
1.6 Ti 1596 CCM 134 HP 12/2010 - 04/2017
1.4 TDCi 1399 CCM 70 HP 07/2010 - 09/2012
1.25 1242 CCM 60 HP 06/2008 - 04/2017
1.25 1242 CCM 82 HP 06/2008 - 04/2017
1.6 TDCi 1560 CCM 90 HP 06/2008 - 12/2012
1.4 1388 CCM 97 HP 10/2008 - 12/2017
1.6 Ti 1596 CCM 120 HP 06/2008 - 09/2012
1.4 TDCi 1399 CCM 68 HP 08/2008 - 09/2012
1.6 TDCi 1560 CCM 75 HP 06/2008 - 12/2012
1.4 LPG 1388 CCM 97 HP 01/2009 - 04/2017
1.6 TDCi 1560 CCM 95 HP 02/2010 - 12/2015
1.6 Ti 1596 CCM 105 HP 09/2012 - 04/2017
FIESTA VI Van
Description Cylinder Capacity Horse Power Year
1.4 TDCi 1399 CCM 70 HP 07/2010 - 04/2017
1.6 TDCi 1560 CCM 95 HP 02/2010 - 05/2015
1.25 1242 CCM 82 HP 01/2009 - 04/2017
1.4 TDCi 1399 CCM 68 HP 01/2009 - 04/2017
1.6 TDCi 1560 CCM 90 HP 01/2009 - 04/2017
1.5 TDCi 1499 CCM 75 HP 10/2012 - 04/2017
1.6 ST 1596 CCM 182 HP 03/2013 - 04/2017
1.5 TDCi 1499 CCM 95 HP 05/2015 - 04/2017
1.6 Ti-VCT 1596 CCM 120 HP 10/2008 - 12/2012
1.4 1388 CCM 97 HP 10/2008 - 12/2012
FOCUS I Estate Van (DNW)
Description Cylinder Capacity Horse Power Year
1.8 TDDi 1753 CCM 75 HP 08/1999 - 03/2005
1.6 1596 CCM 101 HP 04/1999 - 03/2005
1.8 1796 CCM 116 HP 04/1999 - 03/2005
1.8 TDDi 1753 CCM 90 HP 08/1998 - 03/2005
1.8 TDCi 1753 CCM 101 HP 08/2002 - 03/2005
1.8 TDCi 1753 CCM 116 HP 08/2001 - 03/2005
FOCUS I (DAW, DBW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 10/1998 - 11/2004
1.6 16V 1596 CCM 100 HP 10/1998 - 11/2004
1.8 16V 1796 CCM 115 HP 10/1998 - 11/2004
2.0 16V 1988 CCM 131 HP 10/1998 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 90 HP 10/1998 - 11/2004
1.8 DI / TDDi 1753 CCM 75 HP 08/1999 - 11/2004
1.8 TDCi 1753 CCM 115 HP 03/2001 - 11/2004
ST170 1988 CCM 173 HP 03/2002 - 11/2004
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
RS 1988 CCM 215 HP 10/2002 - 11/2004
1.4 16V 1388 CCM 75 HP 10/1998 - 09/1999
FOCUS I Turnier (DNW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 02/1999 - 11/2004
1.6 16V 1596 CCM 100 HP 02/1999 - 11/2004
1.8 16V 1796 CCM 115 HP 02/1999 - 11/2004
2.0 16V 1988 CCM 131 HP 02/1999 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 90 HP 02/1999 - 11/2004
1.8 DI / TDDi 1753 CCM 75 HP 08/1999 - 11/2004
1.8 TDCi 1753 CCM 115 HP 03/2001 - 11/2004
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
1.8 BiFuel 1796 CCM 111 HP 02/2003 - 01/2005
FOCUS I Saloon (DFW)
Description Cylinder Capacity Horse Power Year
1.4 16V 1388 CCM 75 HP 02/1999 - 11/2004
1.6 16V 1596 CCM 100 HP 02/1999 - 11/2004
1.8 16V 1796 CCM 115 HP 02/1999 - 11/2004
2.0 16V 1988 CCM 131 HP 02/1999 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 90 HP 02/1999 - 11/2004
1.8 TDCi 1753 CCM 115 HP 10/2001 - 04/2005
1.8 TDCi 1753 CCM 100 HP 08/2002 - 11/2004
1.8 Turbo DI / TDDi 1753 CCM 75 HP 08/2001 - 03/2005
FOCUS C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 133 HP 10/2003 - 03/2007
1.8 1798 CCM 120 HP 10/2003 - 03/2007
1.6 TDCi 1560 CCM 109 HP 10/2003 - 03/2007
2.0 TDCi 1997 CCM 136 HP 10/2003 - 03/2007
1.6 1596 CCM 100 HP 10/2003 - 03/2007
2.0 1999 CCM 145 HP 03/2004 - 03/2007
1.8 1798 CCM 125 HP 04/2004 - 03/2007
1.6 Ti 1596 CCM 115 HP 08/2004 - 03/2007
1.6 TDCi 1560 CCM 90 HP 02/2005 - 03/2007
1.8 TDCi 1753 CCM 115 HP 01/2005 - 03/2007
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 03/2007
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 133 HP 07/2004 - 01/2008
1.6 1596 CCM 100 HP 07/2004 - 09/2012
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.4 1388 CCM 80 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 136 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 10/2005 - 03/2012
1.8 TDCi 1753 CCM 115 HP 10/2005 - 06/2010
2.5 ST 2522 CCM 225 HP 10/2005 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
2.5 RS 2521 CCM 305 HP 01/2009 - 07/2011
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 133 HP 07/2004 - 01/2008
1.4 1388 CCM 80 HP 07/2004 - 09/2012
1.6 1596 CCM 100 HP 07/2004 - 07/2011
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 136 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 07/2004 - 09/2012
1.8 TDCi 1753 CCM 115 HP 10/2005 - 06/2010
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
2.0 LPG 1999 CCM 145 HP 06/2008 - 07/2011
FOCUS II Saloon (DB_, FCH, DH)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 04/2005 - 09/2012
1.4 1388 CCM 80 HP 04/2005 - 09/2012
1.6 1596 CCM 100 HP 04/2005 - 09/2012
1.6 Ti 1596 CCM 115 HP 04/2005 - 09/2012
2.0 1999 CCM 145 HP 04/2005 - 07/2011
1.6 TDCi 1560 CCM 90 HP 04/2005 - 09/2012
1.6 TDCi 1560 CCM 109 HP 04/2005 - 09/2012
1.8 TDCi 1753 CCM 115 HP 04/2005 - 09/2012
2.0 TDCi 1997 CCM 136 HP 04/2005 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 06/2006 - 07/2011
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Convertible
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 100 HP 10/2006 - 09/2010
2.0 1999 CCM 145 HP 10/2006 - 09/2010
2.0 TDCi 1997 CCM 136 HP 10/2006 - 09/2010
MAZDA
3 Saloon (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK12) 1598 CCM 105 HP 02/2004 - 06/2009
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
1.6 DI Turbo (BK12Y) 1560 CCM 109 HP 06/2004 - 06/2009
2.0 MZR-CD (BK12) 1998 CCM 143 HP 12/2006 - 06/2009
3 (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK14) 1598 CCM 105 HP 10/2003 - 06/2009
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
1.6 DI Turbo 1560 CCM 109 HP 06/2004 - 06/2009
1.3 (BK14) 1349 CCM 84 HP 10/2003 - 06/2009
2.3 DiSi Turbo MPS (BK3P) 2261 CCM 250 HP 06/2006 - 06/2009
2.3 MPS Turbo (BK14) 2261 CCM 260 HP 12/2006 - 06/2009
2.0 MZR-CD (BK14) 1998 CCM 143 HP 07/2006 - 06/2009
5 (CR)
Description Cylinder Capacity Horse Power Year
2.0 (CREW, CR19) 1999 CCM 146 HP 02/2005 - 05/2010
6 Station Wagon (GY)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 120 HP 08/2002 - 08/2007
2.0 (GYEW) 1999 CCM 141 HP 08/2002 - 08/2007
2.3 (GY3W, GY10) 2261 CCM 166 HP 01/2002 - 02/2008
2.0 DI (GY19) 1998 CCM 136 HP 08/2002 - 02/2005
2.0 DI (GY19) 1998 CCM 121 HP 08/2002 - 08/2007
2.3 AWD (GY3W) 2261 CCM 162 HP 11/2002 - 08/2007
2.0 DI (GY19) 1998 CCM 143 HP 06/2005 - 08/2007
2.0 (GYEW) 1999 CCM 147 HP 03/2005 - 08/2007
6 Saloon (GG)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 120 HP 08/2002 - 08/2007
2.0 (GGEP, GG10) 1999 CCM 141 HP 06/2002 - 08/2007
2.3 (GG3P) 2261 CCM 166 HP 06/2002 - 08/2007
2.0 DI (GG14) 1998 CCM 136 HP 06/2002 - 08/2007
2.0 DI (GG14) 1998 CCM 121 HP 08/2002 - 08/2007
2.0 DI (GG14) 1998 CCM 143 HP 06/2005 - 08/2007
2.0 (GGEP, GG10) 1999 CCM 147 HP 03/2005 - 08/2007
2.3 MPS Turbo (GG3P) 2261 CCM 260 HP 12/2005 - 08/2007
2.3 2261 CCM 163 HP 03/2005 - 07/2007
6 Hatchback (GG)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 120 HP 08/2002 - 08/2007
2.0 (GGES) 1999 CCM 141 HP 08/2002 - 08/2007
2.3 (GG3S) 2261 CCM 166 HP 08/2002 - 08/2007
2.0 DI (GG14) 1998 CCM 136 HP 08/2002 - 08/2007
2.0 DI (GG14) 1998 CCM 121 HP 08/2002 - 08/2007
2.0 DI (GG14) 1998 CCM 143 HP 06/2005 - 08/2007
2.0 (GGES) 1999 CCM 147 HP 03/2005 - 08/2007
323 S Mk VI Saloon (BJ)
Description Cylinder Capacity Horse Power Year
1.5 16V (BJ5P) 1498 CCM 88 HP 09/1998 - 01/2001
1.9 16V (BJ10M) 1840 CCM 114 HP 09/1998 - 05/2004
1.6 (BJ10M) 1598 CCM 98 HP 01/2001 - 05/2004
2.0 (BJFP) 1991 CCM 131 HP 01/2001 - 05/2004
323 F/P Mk VI Hatchback (BJ)
Description Cylinder Capacity Horse Power Year
1.5 16V (BJ5W) 1498 CCM 88 HP 09/1998 - 01/2001
1.9 16V (BJ14) 1840 CCM 114 HP 09/1998 - 01/2001
1.6 (BJ10M) 1598 CCM 98 HP 01/2001 - 05/2004
2.0 (BJFW) 1991 CCM 131 HP 01/2001 - 05/2004
PREMACY (CP)
Description Cylinder Capacity Horse Power Year
1.9 (CP10P) 1840 CCM 114 HP 07/1999 - 03/2005
2.0 (CP10S) 1991 CCM 131 HP 11/2001 - 03/2005

The Mahle HX149D Hydraulic Filter, automatic transmission is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records automatic Transmission and 4-Speed Automatic Transmission transmission, filter Insert filter design, 27 mm inner diameter 2, and Soft Material Gasket gasket design. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Hydraulic Filter, automatic transmission
Transmission Type : Automatic Transmission
Transmission Type : 4-Speed Automatic Transmission
Filter type : Filter Insert
Length [mm] : 178.6
Width [mm] : 126
Height [mm] : 54.9
Inner Diameter 2 [mm] : 27
Transmission Code : 4F27E
Supplementary Article/Supplementary Info : with gasket/seal
Gasket Design : Soft Material Gasket
Number of Holes : 20
Recommended change interval [km] : 60,000
Net Weight [g] : 163
Packaging length [cm] : 19.7
Packaging height [cm] : 23.3
Packaging width [cm] : 4.8
  • Vendor MAHLE
  • SKU HX149D
  • Barcode 4009026968437
  • FORD : 1 217 470 3044026 5046305 XS4P7B155AB XS4P7B155AC
  • MAZDA : FN0121500 FN0121500A
  • BLUE PRINT : ADF122124
  • BLUE PRINT : ADM52128
  • FEBI BILSTEIN : 104505
  • FEBI BILSTEIN : 106891
  • HENGST FILTER : EG191H D659
  • MEYLE : 714 135 0004
  • MEYLE : 714 135 0004/SK
  • MEYLE : 714 136 0001
  • MEYLE : 714 137 0001
  • MAHLE : 72437246
