Mahle HX153D Hydraulic Filter, automatic transmission - 1
Mahle HX153D Hydraulic Filter, automatic transmission - 1
MAHLE

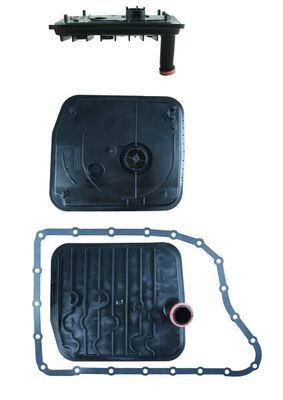

Mahle HX153D Hydraulic Filter, automatic transmission

SKU: HX153D
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£48.08 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
FOCUS C-MAX (DM2)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 133 HP 10/2003 - 03/2007
1.8 1798 CCM 120 HP 10/2003 - 03/2007
1.6 TDCi 1560 CCM 109 HP 10/2003 - 03/2007
2.0 TDCi 1997 CCM 136 HP 10/2003 - 03/2007
1.6 1596 CCM 100 HP 10/2003 - 03/2007
2.0 1999 CCM 145 HP 03/2004 - 03/2007
1.8 1798 CCM 125 HP 04/2004 - 03/2007
1.6 Ti 1596 CCM 115 HP 08/2004 - 03/2007
1.6 TDCi 1560 CCM 90 HP 02/2005 - 03/2007
1.8 TDCi 1753 CCM 115 HP 01/2005 - 03/2007
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 03/2007
1.8 1798 CCM 122 HP 09/2005 - 03/2007
FOCUS II (DA_, HCP, DP)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 133 HP 07/2004 - 01/2008
1.6 1596 CCM 100 HP 07/2004 - 09/2012
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.4 1388 CCM 80 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 136 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 10/2005 - 03/2012
1.8 TDCi 1753 CCM 115 HP 10/2005 - 06/2010
2.5 ST 2522 CCM 225 HP 10/2005 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
2.5 RS 2521 CCM 305 HP 01/2009 - 07/2011
FOCUS II Station Wagon (DA_, FFS, DS)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 133 HP 07/2004 - 01/2008
1.6 TDCi 1560 CCM 110 HP 12/2007 - 09/2012
1.4 1388 CCM 80 HP 07/2004 - 09/2012
1.6 1596 CCM 100 HP 07/2004 - 07/2011
1.6 Ti 1596 CCM 115 HP 07/2004 - 09/2012
2.0 1999 CCM 145 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 109 HP 07/2004 - 09/2012
2.0 TDCi 1997 CCM 136 HP 07/2004 - 09/2012
1.6 TDCi 1560 CCM 90 HP 07/2004 - 09/2012
1.8 TDCi 1753 CCM 115 HP 10/2005 - 06/2010
1.8 Flexifuel 1798 CCM 125 HP 01/2006 - 09/2012
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
2.0 LPG 1999 CCM 145 HP 06/2008 - 07/2011
FOCUS II Saloon (DB_, FCH, DH)
Description Cylinder Capacity Horse Power Year
1.6 TDCi 1560 CCM 100 HP 04/2005 - 09/2012
1.4 1388 CCM 80 HP 04/2005 - 09/2012
1.6 1596 CCM 100 HP 04/2005 - 09/2012
1.6 Ti 1596 CCM 115 HP 04/2005 - 09/2012
2.0 1999 CCM 145 HP 04/2005 - 07/2011
1.6 TDCi 1560 CCM 90 HP 04/2005 - 09/2012
1.6 TDCi 1560 CCM 109 HP 04/2005 - 09/2012
1.8 TDCi 1753 CCM 115 HP 04/2005 - 09/2012
2.0 TDCi 1997 CCM 136 HP 04/2005 - 09/2012
1.8 Flexifuel 1798 CCM 125 HP 06/2006 - 07/2011
2.0 TDCi 1997 CCM 110 HP 02/2008 - 07/2011
1.8 1798 CCM 125 HP 03/2006 - 09/2012
FOCUS II Convertible
Description Cylinder Capacity Horse Power Year
1.6 1596 CCM 100 HP 10/2006 - 09/2010
2.0 1999 CCM 145 HP 10/2006 - 09/2010
2.0 TDCi 1997 CCM 136 HP 10/2006 - 09/2010

The Mahle HX153D Hydraulic Filter, automatic transmission is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records automatic Transmission and CVT automatic transmission (stepless) transmission, filter Insert filter design, 29 mm inner diameter 2, and Soft Material Gasket gasket design. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Hydraulic Filter, automatic transmission
Transmission Type : Automatic Transmission
Transmission Type : CVT automatic transmission (stepless)
Filter type : Filter Insert
Length [mm] : 203.2
Width [mm] : 179
Height [mm] : 118.5
Inner Diameter 2 [mm] : 29
Transmission Code : CFT23
Supplementary Article/Supplementary Info : with gasket/seal
Gasket Design : Soft Material Gasket
Number of Holes : 21
Recommended change interval [km] : 60,000
Packaging height [cm] : 11.8
Net Weight [g] : 292
Packaging length [cm] : 38
Packaging width [cm] : 55
  • Vendor MAHLE
  • SKU HX153D
  • Barcode 4009026968468
  • FORD : 1305775 1305783 1406310 4M5P7A191AA 4M5P7B155AA 4M5P7B155AB
  • MEYLE : 714 135 0003
  • MEYLE : 714 135 0003/SK
  • MEYLE : 714 135 0003/XK
  • MEYLE : 714 136 0003
  • MEYLE : 714 137 0003
  • MAHLE : 72437257
