Mahle HX158D Hydraulic Filter, automatic transmission

SKU: HX158D
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£22.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
A-CLASS (W169)
Description Cylinder Capacity Horse Power Year
A 200 CDI (169.308, 169.008) 1991 CCM 136 HP 09/2004 - 06/2012
A 170 (169.032, 169.332) 1699 CCM 116 HP 09/2004 - 06/2012
A 150 (169.031, 169.331) 1498 CCM 95 HP 09/2004 - 06/2012
A 200 (169.033, 169.333) 2034 CCM 136 HP 09/2004 - 06/2012
A 160 CDI (169.006, 169.306) 1991 CCM 82 HP 09/2004 - 06/2012
A 180 CDI (169.007, 169.307) 1991 CCM 109 HP 09/2004 - 06/2012
A 200 CDI (169.008, 169.308) 1991 CCM 140 HP 09/2004 - 06/2012
A 200 TURBO (169.034, 169.334) 2034 CCM 193 HP 09/2005 - 06/2012
A 160 (169.031, 169.331) 1498 CCM 95 HP 04/2009 - 06/2012
A 180 (169.032, 169.332) 1699 CCM 116 HP 04/2009 - 06/2012
B-CLASS Sports Tourer (W245)
Description Cylinder Capacity Horse Power Year
B 180 CDI (245.207) 1991 CCM 109 HP 03/2005 - 11/2011
B 200 CDI (245.208) 1991 CCM 140 HP 03/2005 - 11/2011
B 170 (245.232) 1699 CCM 116 HP 03/2005 - 11/2011
B 200 (245.233) 2034 CCM 136 HP 03/2005 - 11/2011
B 200 TURBO (245.234) 2034 CCM 193 HP 03/2005 - 11/2011
B 150 (245.231) 1498 CCM 95 HP 03/2005 - 11/2011
B 170 NGT (245.233) 2034 CCM 116 HP 04/2008 - 11/2011
B 180 NGT (245.233) 2034 CCM 116 HP 04/2008 - 11/2011
B 160 (245.231) 1498 CCM 95 HP 04/2009 - 11/2011
B 180 (245.232) 1699 CCM 116 HP 04/2009 - 11/2011
B 200 CDI (245.208) 1991 CCM 136 HP 03/2005 - 11/2011

The Mahle HX158D Hydraulic Filter, automatic transmission is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records automatic Transmission and CVT automatic transmission (stepless) transmission, filter Insert filter design, 25 mm inner diameter 2, and Soft Material Gasket gasket design. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Hydraulic Filter, automatic transmission
Transmission Type : Automatic Transmission
Transmission Type : CVT automatic transmission (stepless)
Filter type : Filter Insert

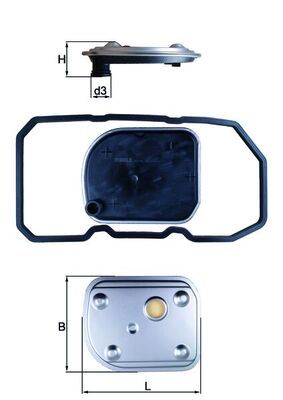

Length [mm] : 190.6
Width [mm] : 154
Height [mm] : 46.5
Inner Diameter 2 [mm] : 25
Transmission Code : 722.8
Supplementary Article/Supplementary Info : with gasket/seal
Gasket Design : Soft Material Gasket
Recommended change interval [km] : 50,000
Packaging length [cm] : 19.7
Packaging height [cm] : 23.3
Net Weight [g] : 359
Packaging width [cm] : 4.8
  • Vendor MAHLE
  • SKU HX158D
  • Barcode 4009026968895
  • MERCEDES-BENZ : 1693710480 1693770995 1693771195 1693771295 1693771395 A1693710480 A1693770995 A1693771195 A1693771295 A1693771395
  • BLUE PRINT : ADBP210042
  • BLUE PRINT : ADBP210046
  • BLUE PRINT : ADU172115
  • FEBI BILSTEIN : 107829
  • FEBI BILSTEIN : 171507
  • FEBI BILSTEIN : 171509
  • FEBI BILSTEIN : 171767
  • FEBI BILSTEIN : 171769
  • FEBI BILSTEIN : 199658
  • FEBI BILSTEIN : 199663
  • HENGST FILTER : EG955H D501
  • MEYLE : 014 037 0004/S
  • MAHLE : 72440112
