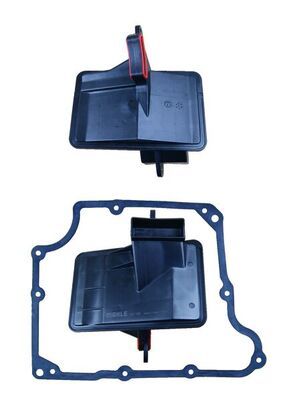

Mahle HX166D Hydraulic Filter, automatic transmission

SKU: HX166D
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
Regular price £26.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

The Mahle HX166D Hydraulic Filter, automatic transmission is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records automatic Transmission and 4-Speed Automatic Transmission transmission, filter Insert filter design, Soft Material Gasket gasket design, and 11 mounting holes. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Hydraulic Filter, automatic transmission
Transmission Type : Automatic Transmission
Transmission Type : 4-Speed Automatic Transmission
Filter type : Filter Insert

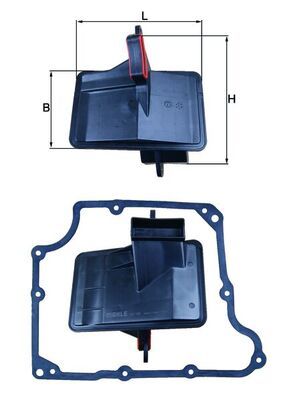

Length [mm] : 177
Width [mm] : 112
Height [mm] : 121.2
Transmission Code : AW50-40
Supplementary Article/Supplementary Info : with gasket/seal
Gasket Design : Soft Material Gasket
Number of Holes : 11
Recommended change interval [km] : 80,000
Net Weight [g] : 186
Packaging length [cm] : 19.7
Packaging height [cm] : 23.3
Packaging width [cm] : 7.9
  • Vendor MAHLE
  • SKU HX166D
  • Barcode 4009026968871
  • GMC : 90541934
  • OPEL : 0703300 0703301 0703302 0703303 703300 703301 703302 703303 90348728 90444695 90510748 90541934
  • SAAB : 5164553 90541934
  • VAUXHALL : 90348728 90444695 90510748 90541934
  • MAHLE : 72440108
