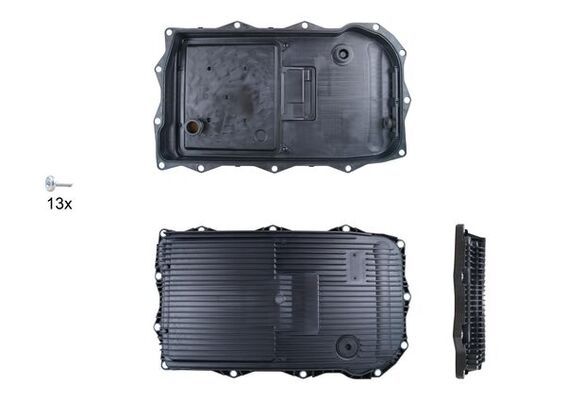

Mahle HX184KIT Oil Sump, automatic transmission
Your selected vehicle
Regular price
£90.08
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

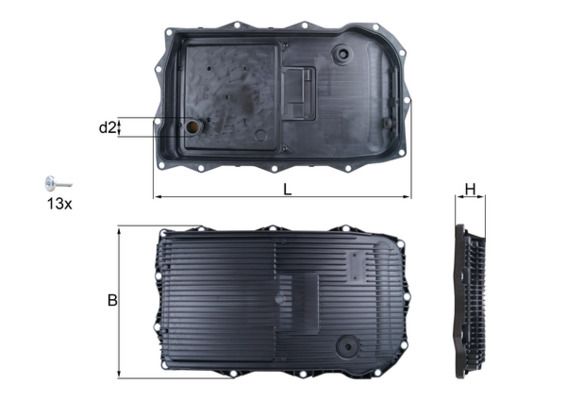

The Mahle HX184KIT Oil Sump, automatic transmission is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records 35 mm inner diameter 2, 13 mounting holes, Plastic oil sump material, and 8-Speed Automatic Transmission transmission. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Sump, automatic transmission
Height [mm] :
53.5
Overall Length [mm] :
486.5
Width [mm] :
285
Inner Diameter 2 [mm] :
35
Number of Holes :
13
Supplementary Article/Supplementary Info :
with gasket/seal
Transmission Code :
8HP45Z
Transmission Code :
8HP50Z
Transmission Code :
8HP70Z
Transmission Code :
8HP75Z
Oil Sump Material :
Plastic
Supplementary Article/Supplementary Info 2 :
with filter
Transmission Type :
8-Speed Automatic Transmission
Net Weight [g] :
1,777
Packaging width [cm] :
33
Packaging length [cm] :
52
Packaging height [cm] :
7
- Vendor MAHLE
- SKU HX184KIT
- ALFA ROMEO : 77367950
- BMW : 24 11 5 A13 115 24115A13116 24117604960 24117613253 24117624192 24118612901 7604960 7613253 7624192 8612901
- CHRYSLER : 68142478AB
- DODGE : 68142478AB
- JAGUAR : JDE26442 JDE36541
- LAND ROVER : LR023294 LR065238
- MAHLE : 72546977
- MAHLE : 79948780
