Home / Car Parts / Fuel System / Filtration / Transmission Filter

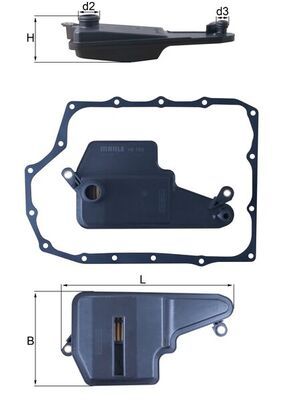

Mahle HX193D Hydraulic Filter, automatic transmission - 1

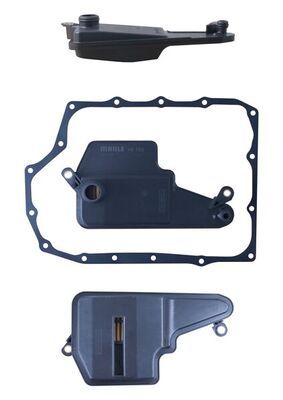

Mahle HX193D Hydraulic Filter, automatic transmission - 2
Mahle HX193D Hydraulic Filter, automatic transmission - 1
Mahle HX193D Hydraulic Filter, automatic transmission - 2
MAHLE

Mahle HX193D Hydraulic Filter, automatic transmission

5.0/5 78 reviews
SKU: HX193D

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£25.10 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

MAZDA
3 Saloon (BL)
Description Cylinder Capacity Horse Power Year
2.0 MZR DISI (BL12) 1999 CCM 151 HP 02/2009 - 05/2013
3 (BM, BN)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 120 HP 09/2013 - 05/2019
2.2 D 2191 CCM 150 HP 09/2013 - 05/2019
1.5 1496 CCM 120 HP 10/2013 - 05/2019
1.5 D (BMLFS, BM4, BN4) 1499 CCM 105 HP 02/2016 - 05/2019
3 Saloon (BM_, BN_)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 120 HP 09/2013 - 05/2019
2.0 1998 CCM 165 HP 11/2014 - 05/2019
1.5 1496 CCM 120 HP 10/2013 - 05/2019
3 Saloon (BP_)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G M Hybrid 1998 CCM 122 HP From 11/2018
1.8 SKYACTIV-D (BP8P) 1759 CCM 116 HP From 01/2019
2.0 SKYACTIV-X M Hybrid (BP2S) 1998 CCM 179 HP From 06/2019
2.0 SKYACTIV-G M Hybrid (BP5S, BP6S) 1998 CCM 150 HP From 07/2020
2.0 SKYACTIV-X M Hybrid 1998 CCM 186 HP From 02/2021
2.5 e-SKYACTIV-G (BP5S) 2488 CCM 140 HP From 06/2024
3 Hatchback (BP)
Description Cylinder Capacity Horse Power Year
2.0 SKYACTIV-G M Hybrid 1998 CCM 122 HP From 11/2018
1.8 SKYACTIV-D (BP8P) 1759 CCM 116 HP From 01/2019
SKYACTIV-X M Hybrid (BP2H) 1998 CCM 179 HP From 06/2019
SKYACTIV-X M Hybrid AWD (BP2H) 1998 CCM 179 HP From 06/2019
2.0 SKYACTIV-G (BP5H, BP6H) 1998 CCM 150 HP From 11/2018
2.0 SKYACTIV-G M Hybrid 1998 CCM 150 HP From 01/2020
SKYACTIV-X M Hybrid 1998 CCM 186 HP From 02/2021
SKYACTIV-X M Hybrid AWD 1998 CCM 186 HP From 02/2021
2.5 e-SKYACTIV-G (BP5H) 2488 CCM 140 HP From 06/2024
6 Estate (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FW, GJ692) 2191 CCM 175 HP 08/2012 - 02/2018
2.0 (GJEFW) 1998 CCM 146 HP From 01/2013
2.0 (GJEFW) 1998 CCM 165 HP From 01/2013
2.2 D 2191 CCM 150 HP 10/2012 - 12/2020
2.5 2488 CCM 192 HP From 12/2012
2.2 D AWD 2191 CCM 175 HP From 02/2015
2.5 2488 CCM 194 HP From 03/2018
2.2 D 2191 CCM 184 HP 03/2018 - 12/2020
2.2 D AWD 2191 CCM 184 HP 03/2018 - 12/2020
6 Saloon (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FP, GJ1021, GJ1022, GL1021) 2191 CCM 175 HP From 12/2012
2.0 (GJ2, GL2, GL6) 1998 CCM 146 HP From 01/2013
2.0 (GJEFP) 1998 CCM 165 HP From 01/2013
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 192 HP From 01/2013
2.2 D (GJ2FP) 2191 CCM 150 HP 12/2012 - 11/2020
2.0 1998 CCM 150 HP 12/2012 - 02/2018
2.5 2488 CCM 194 HP From 03/2018
2.2 D 2191 CCM 184 HP 03/2018 - 11/2020
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 231 HP From 03/2018
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 190 HP From 03/2018
CX-3 (DK)
Description Cylinder Capacity Horse Power Year
1.5 SKYACTIV-D AWD (DK4WS, DK5AW) 1499 CCM 105 HP 02/2015 - 01/2018
2.0 SKYACTIV-G (DK5W, DK6W) 1998 CCM 120 HP From 05/2015
2.0 SKYACTIV-G AWD (DK4W7, DKEAW) 1998 CCM 150 HP From 05/2015
1.8 SKYACTIV-D AWD (DK2WS) 1759 CCM 116 HP From 02/2018
1.8 SKYACTIV-D (DK4WS) 1759 CCM 116 HP From 02/2018
2.0 SKYACTIV-G 1998 CCM 121 HP From 02/2018
2.0 SKYACTIV-G (DK2W7, DKEFW) 1998 CCM 150 HP From 05/2018
CX-5 (KE, GH)
Description Cylinder Capacity Horse Power Year
2.0 (KEEFW) 1998 CCM 165 HP 11/2011 - 02/2017
2.0 AWD (KEEAW) 1998 CCM 160 HP 11/2011 - 02/2017
2.2 D (KE2FW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE2AW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE102) 2191 CCM 175 HP 04/2012 - 02/2017
2.5 AWD 2488 CCM 192 HP 02/2015 - 02/2017
CX-5 (KF)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 165 HP From 05/2017
2.0 AWD 1998 CCM 160 HP From 05/2017
2.5 AWD 2488 CCM 194 HP From 05/2017
2.2 D (KF6W) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KFGW) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KF4W2) 2191 CCM 175 HP 05/2017 - 02/2018
2.2 D AWD 2191 CCM 188 HP From 03/2018
2.2 D AWD 2191 CCM 184 HP From 06/2018
2.0 AWD 1998 CCM 165 HP From 06/2018
2.0 1998 CCM 150 HP From 03/2018
2.0 AWD 1998 CCM 150 HP From 03/2018
2.5 2488 CCM 194 HP 03/2019 - 11/2022
2.0 SKYACTIV-G 1998 CCM 163 HP From 03/2018
2.0 SKYACTIV-G AWD 1998 CCM 163 HP From 03/2018
2.2 SKYACTIV-D 2191 CCM 184 HP From 02/2021
CX-30 (DM, DT, ED)
Description Cylinder Capacity Horse Power Year
SKYACTIV-G M Hybrid 1998 CCM 122 HP From 07/2019
SKYACTIV-G M Hybrid AWD 1998 CCM 122 HP From 07/2019
SKYACTIV-X M Hybrid (DMFP) 1998 CCM 179 HP From 07/2019
SKYACTIV-X M Hybrid AWD (DM4W7, DMFP) 1998 CCM 179 HP From 07/2019
1.8 SKYACTIV-D 1759 CCM 116 HP From 07/2019
1.8 SKYACTIV-D AWD 1759 CCM 116 HP From 07/2019
SKYACTIV-G M Hybrid (DM5W, DM6W) 1998 CCM 150 HP From 01/2020
SKYACTIV-G M Hybrid AWD (DMEW, DMFW) 1998 CCM 150 HP From 01/2020
e-SKYACTIV-X M Hybrid AWD 1998 CCM 186 HP From 06/2021
e-SKYACTIV-X M Hybrid 1998 CCM 186 HP From 06/2021
2.5 e-SKYACTIV-G (ED5W) 2488 CCM 140 HP From 06/2024

The Mahle HX193D Hydraulic Filter, automatic transmission is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records automatic Transmission and 6-Speed Automatic Transmission transmission, filter Insert filter design, 24 mm inner diameter 2, and Soft Material Gasket gasket design. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Hydraulic Filter, automatic transmission
Transmission Type : Automatic Transmission
Transmission Type : 6-Speed Automatic Transmission
Filter type : Filter Insert
Length [mm] : 244
Width [mm] : 126
Height [mm] : 58.5
Inner Diameter 2 [mm] : 24
Transmission Code : JATCO FW6A-EL
Supplementary Article/Supplementary Info : with gasket/seal
Gasket Design : Soft Material Gasket
Number of Holes : 16
Packaging length [cm] : 13.2
Packaging height [cm] : 26
Net Weight [g] : 278
Packaging width [cm] : 6.5
  • Vendor MAHLE
  • SKU HX193D
  • Barcode 4057635166256
  • MAZDA : FZ0121500 R2Y1-10-431
  • BLUE PRINT : ADM52129
  • FEBI BILSTEIN : 107828
  • MAHLE : 72493883
