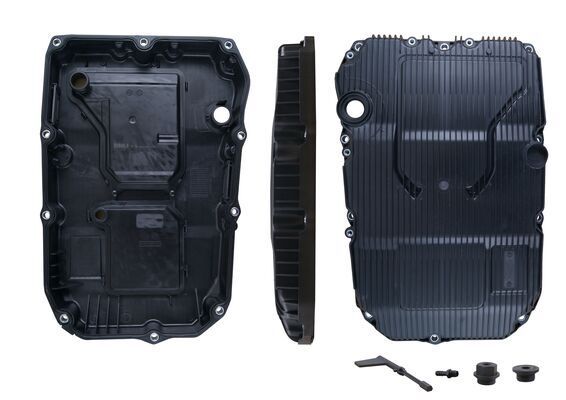

Mahle HX196KIT Oil Sump, automatic transmission
Your selected vehicle
Regular price
£64.12
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Mahle HX196KIT Oil Sump, automatic transmission is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records 10 mounting holes, with gasket/seal, Plastic oil sump material, and 9-Speed Automatic Transmission transmission. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Sump, automatic transmission
Height [mm] :
53.7
Overall Length [mm] :
437.43
Width [mm] :
299
Number of Holes :
10
Supplementary Article/Supplementary Info :
with gasket/seal
Transmission Code :
725.0
Oil Sump Material :
Plastic
Supplementary Article/Supplementary Info 2 :
with filter
Transmission Type :
9-Speed Automatic Transmission
Net Weight [g] :
1,260
Packaging length [cm] :
30
Packaging height [cm] :
44.1
Packaging width [cm] :
5.8
- Vendor MAHLE
- SKU HX196KIT
- MERCEDES-BENZ : 7252703707 7252708704 7252708804 A7252703707 A7252708704 A7252708804
- MAHLE : 72522540
