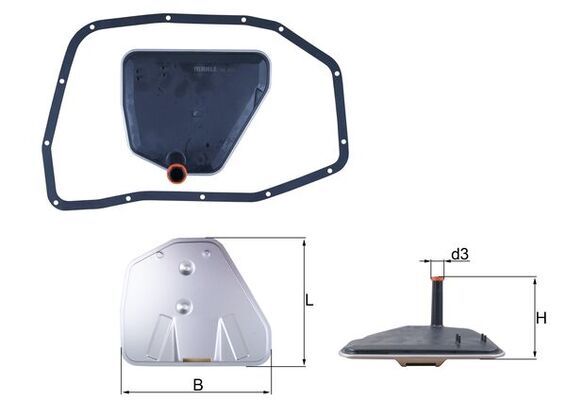

Mahle HX233D Hydraulic Filter, automatic transmission - 1
Mahle HX233D Hydraulic Filter, automatic transmission - 1
MAHLE

Mahle HX233D Hydraulic Filter, automatic transmission

SKU: HX233D
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£38.24 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A4 B8 (8K2)
Description Cylinder Capacity Horse Power Year
3.2 FSI quattro 3197 CCM 265 HP 11/2007 - 03/2012
3.0 TDI quattro 2967 CCM 240 HP 11/2007 - 03/2012
A4 B8 Avant (8K5)
Description Cylinder Capacity Horse Power Year
3.2 FSI quattro 3197 CCM 265 HP 04/2008 - 03/2012
3.0 TDI quattro 2967 CCM 240 HP 04/2008 - 03/2012
A5 (8T3)
Description Cylinder Capacity Horse Power Year
3.2 FSI 3197 CCM 265 HP 01/2008 - 03/2012
S5 quattro 4163 CCM 354 HP 06/2007 - 03/2012
3.0 TDI quattro 2967 CCM 240 HP 06/2007 - 03/2012
3.2 FSI quattro 3197 CCM 265 HP 01/2008 - 03/2012
A5 Sportback (8TA)
Description Cylinder Capacity Horse Power Year
2.0 TFSI 1984 CCM 211 HP 09/2009 - 11/2013
A5 Convertible (8F7)
Description Cylinder Capacity Horse Power Year
2.0 TFSI quattro 1984 CCM 211 HP 08/2009 - 12/2013
3.2 FSI quattro 3197 CCM 265 HP 08/2009 - 03/2012
Q5 (8RB)
Description Cylinder Capacity Horse Power Year
3.2 FSI quattro 3197 CCM 270 HP 11/2008 - 12/2012
BENTLEY
CONTINENTAL Coupe (3W_, 393)
Description Cylinder Capacity Horse Power Year
6.0 FLEX 5998 CCM 575 HP 11/2010 - 12/2013
6.0 Supersports 5998 CCM 630 HP 10/2009 - 12/2011
CONTINENTAL Convertible (3W_, 394)
Description Cylinder Capacity Horse Power Year
6.0 AWD 5998 CCM 575 HP 11/2011 - 07/2018
6.0 CS ISR 5998 CCM 641 HP 03/2011 - 06/2014
6.0 FLEX AWD 5998 CCM 630 HP 03/2010 - 12/2013

The Mahle HX233D Hydraulic Filter, automatic transmission is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records filter Insert filter design, 25 mm inner diameter 2, 6-Speed Automatic Transmission transmission, and Soft Material Gasket gasket design. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Hydraulic Filter, automatic transmission
Filter type : Filter Insert
Length [mm] : 231.5
Width [mm] : 196
Height [mm] : 114
Inner Diameter 2 [mm] : 25
Transmission Type : 6-Speed Automatic Transmission
Transmission Code : 6HP26 A61
Transmission Code : 6HP28 AF
Supplementary Article/Supplementary Info : with gasket/seal
Gasket Design : Soft Material Gasket
Number of Holes : 13
Packaging height [cm] : 13
Packaging width [cm] : 20
Packaging length [cm] : 25
Net Weight [g] : 383
  • Vendor MAHLE
  • SKU HX233D
  • Barcode 4057635188395
  • AUDI : 09E321371A 0B6325429
  • VW : 09E321371A 0B6325429
  • CUPRA : 09E321371A 0B6325429
  • BLUE PRINT : ADBP210048
  • BLUE PRINT : ADBP640001
  • BLUE PRINT : ADV182151
  • FEBI BILSTEIN : 105812
  • FEBI BILSTEIN : 107830
  • FEBI BILSTEIN : 171640
  • FEBI BILSTEIN : 171641
  • MEYLE : 100 136 0009
  • MEYLE : 100 137 0009
  • MAHLE : 72522719
