Home / Car Parts / Service Parts / Filters / Fuel Filter
Mahle KC261D Fuel Filter - 1
Mahle KC261D Fuel Filter - 1
MAHLE

Mahle KC261D Fuel Filter

SKU: KC261D
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£15.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
RANGER (ER, EQ, R_)
Description Cylinder Capacity Horse Power Year
2.5 TD 4x4 2500 CCM 109 HP 10/1999 - 06/2006
2.5 D 2499 CCM 78 HP 10/1999 - 04/2002
2.5 D 4x4 2499 CCM 78 HP 10/1999 - 04/2002
2.5 TD 2500 CCM 84 HP 04/2002 - 06/2006
2.5 TD 4x4 2500 CCM 84 HP 04/2002 - 06/2006
RANGER (ET)
Description Cylinder Capacity Horse Power Year
2.5 TDCi 4x4 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 4x4 2953 CCM 156 HP 05/2006 - 07/2012
2.5 TDdi 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 2953 CCM 156 HP 05/2006 - 07/2012
MAZDA
BT-50 Platform/Chassis (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 CDVi (UNY0W3) 2500 CCM 143 HP From 12/2006
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP From 12/2006
BT-50 Pickup (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 MRZ-CD 4x4 (UNY0W3) 2499 CCM 143 HP 12/2006 - 12/2015
3.0 CDVi (UNY0E3) 2953 CCM 156 HP 12/2006 - 12/2015
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP 10/2006 - 12/2015
2.5 MRZ-CD (UNY0W3) 2499 CCM 143 HP 08/2006 - 06/2013

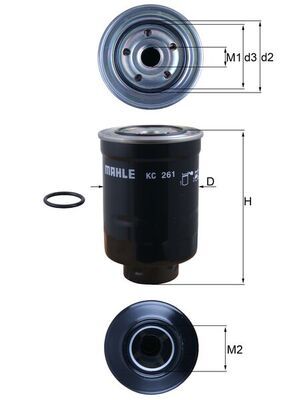

The Mahle KC261D Fuel Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 86.5 mm diameter, 62.5 mm diameter 2, and 56.5 mm seal ring diameter. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Fuel Filter
Filter type : Spin-on Filter
Diameter [mm] : 86.5
Height [mm] : 137
Thread Size : 3/4"-16UNF
Diameter 2 [mm] : 62.5
Seal Ring Diameter [mm] : 56.5
Housing Diameter [mm] : 87
Packaging height [cm] : 14
Net Weight [g] : 413
Packaging length [cm] : 9.5
Packaging width [cm] : 9.5
  • Vendor MAHLE
  • SKU KC261D
  • Barcode 4009026953303
  • BLUE PRINT : ADM52342
  • BORG & BECK : BFF8034
  • BOSCH : 1 457 434 438
  • Fahren : FFF5003
  • FEBI BILSTEIN : 184272
  • HELLA : 8ZF 366 110-511
  • HENGST FILTER : H17WK07
  • LUCAS : LFDS189
  • MANN-FILTER : WK 8018 x
  • NAPA : NFF2010
  • UFI : 24.374.00
  • VALEO : 587709
  • WIX FILTERS : WF8061
  • User manual
  • MAHLE : 72392354
