Mahle KC510D Fuel Filter

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: KC510D

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£19.64 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

CITROËN
C4 AIRCROSS
Description Cylinder Capacity Horse Power Year
1.8 HDi 150 1798 CCM 150 HP From 04/2012
1.8 HDi 150 AWC 1798 CCM 150 HP From 04/2012
MITSUBISHI
ASX (GA_W_)
Description Cylinder Capacity Horse Power Year
1.8 DI-D (GA6W) 1798 CCM 116 HP From 06/2010
1.8 DI-D 4WD (GA6W) 1798 CCM 116 HP From 06/2010
1.8 DI-D (GA6W) 1798 CCM 150 HP From 06/2010
1.8 DI-D 4WD (GA6W) 1798 CCM 150 HP From 06/2010
2.2 DI-D 4WD (GA8W) 2268 CCM 150 HP From 04/2013
ASX Van (GA_W_)
Description Cylinder Capacity Horse Power Year
1.8 DI-D 4WD 1798 CCM 150 HP From 06/2010
ECLIPSE CROSS (GK_, GL_)
Description Cylinder Capacity Horse Power Year
2.2 DiD 4WD (GK9W) 2268 CCM 148 HP From 03/2019
LANCER VIII (CY_A, CZ_A)
Description Cylinder Capacity Horse Power Year
1.8 DI-D 1798 CCM 116 HP From 05/2010
LANCER VIII Sportback (CX_A)
Description Cylinder Capacity Horse Power Year
1.8 DI-D 1798 CCM 116 HP From 05/2010
1.8 DI-D (CX9A) 1798 CCM 150 HP From 06/2010
OUTLANDER II (CW_W)
Description Cylinder Capacity Horse Power Year
2.2 DI-D 2268 CCM 177 HP 11/2006 - 11/2012
2.2 DI-D 4WD 2268 CCM 177 HP 11/2006 - 11/2012
2.2 DI-D 4WD 2268 CCM 140 HP 09/2010 - 11/2012
OUTLANDER II Van (CW_W)
Description Cylinder Capacity Horse Power Year
Di-D 4WD (CW1W) 2268 CCM 177 HP 09/2010 - 12/2012
OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK)
Description Cylinder Capacity Horse Power Year
2.2 DI-D (GF6W) 2268 CCM 150 HP 08/2012 - 12/2022
2.2 DI-D 4WD (GF6W) 2268 CCM 150 HP 08/2012 - 12/2022
OUTLANDER III Van (GF_W, GG_W)
Description Cylinder Capacity Horse Power Year
Di-D 4WD (GF6W) 2268 CCM 150 HP From 04/2013
PEUGEOT
4008
Description Cylinder Capacity Horse Power Year
1.8 HDi AWC 1798 CCM 150 HP From 05/2012
1.8 HDi 1798 CCM 150 HP From 05/2012
SUBARU
FORESTER (SJ_)
Description Cylinder Capacity Horse Power Year
2.0 D AWD (SJD) 1998 CCM 147 HP From 03/2013
LEGACY V Estate (BR)
Description Cylinder Capacity Horse Power Year
2.0 D AWD 1998 CCM 147 HP 01/2013 - 12/2014
OUTBACK (BS)
Description Cylinder Capacity Horse Power Year
2.0 D AWD (BSD) 1998 CCM 150 HP From 03/2015
XV (_GP_)
Description Cylinder Capacity Horse Power Year
2.0 D AWD (GPD) 1998 CCM 147 HP 03/2012 - 12/2017
TOYOTA
LAND CRUISER PRADO (_J15_)
Description Cylinder Capacity Horse Power Year
3.0 D-4D (KDJ155_, KDJ150_, KDJ150R, KDJ155R) 2982 CCM 190 HP From 08/2009
3.0 D-4D (KDJ150_, KDJ150, KDJ155) 2982 CCM 173 HP From 08/2009
2.8 D-4D (GDJ150_, GDJ155_, GDJ150, GDJ151) 2755 CCM 177 HP From 06/2015
2.8 D-4D (GDJ150, GDJ155) 2755 CCM 200 HP From 10/2018
2.8 D-4D (GDJ155, GDJ150) 2755 CCM 204 HP From 07/2020
LAND CRUISER VAN (_J15_)
Description Cylinder Capacity Horse Power Year
3.0 D4d 4WD (KDJ155, KDJ150) 2982 CCM 190 HP From 01/2011

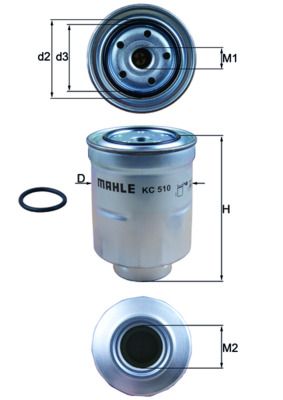

The Mahle KC510D Fuel Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 86 mm diameter, 63.5 mm diameter 2, and 57 mm seal ring diameter. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Fuel Filter
Filter type : Spin-on Filter
Diameter [mm] : 86
Height [mm] : 129.5
Thread Size : 3/4"-16UNF-2B
Diameter 2 [mm] : 63.5
Seal Ring Diameter [mm] : 57
Tightening Torque [Nm] : 14
Packaging length [cm] : 10
Packaging width [cm] : 10
Packaging height [cm] : 14.6
Net Weight [g] : 438
  • Vendor MAHLE
  • SKU KC510D
  • Barcode 4009026000403
  • CITROËN : 1608933780
  • MITSUBISHI : 1770A172 1770A253
  • PEUGEOT : 1608933780
  • SUBARU : 42072AJ130
  • TOYOTA : 2330030340 2339030340 2339036760
  • BLUE PRINT : ADC42364
  • BORG & BECK : BFF8243
  • BOSCH : F 026 402 172
  • BOSCH : F 026 402 830
  • DELPHI : HDF688
  • FEBI BILSTEIN : 176328
  • HELLA : 8ZF 366 112-721
  • HENGST FILTER : H877WK D998
  • LUCAS : LFDS221
  • MANN-FILTER : WK 9057 z
  • NAPA : NFF2166
  • UFI : 24.465.00
  • VALEO : 587179
  • WIX FILTERS : WF8468
  • User manual
  • MAHLE : 72390728
