Home / Car Parts / Service Parts / Filters / Cabin Filter
Mahle LA346/S Filter, cabin air - 1
Mahle LA346/S Filter, cabin air - 1
MAHLE

Mahle LA346/S Filter, cabin air

SKU: LA346/S
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£13.61 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 Saloon (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK12) 1598 CCM 105 HP 02/2004 - 06/2009
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
1.6 DI Turbo (BK12Y) 1560 CCM 109 HP 06/2004 - 06/2009
2.0 MZR-CD (BK12) 1998 CCM 143 HP 12/2006 - 06/2009
3 (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK14) 1598 CCM 105 HP 10/2003 - 06/2009
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
1.6 DI Turbo 1560 CCM 109 HP 06/2004 - 06/2009
1.3 (BK14) 1349 CCM 84 HP 10/2003 - 06/2009
2.3 DiSi Turbo MPS (BK3P) 2261 CCM 250 HP 06/2006 - 06/2009
2.3 MPS Turbo (BK14) 2261 CCM 260 HP 12/2006 - 06/2009
2.0 MZR-CD (BK14) 1998 CCM 143 HP 07/2006 - 06/2009
1.6 MZ-CD 1560 CCM 90 HP 06/2006 - 12/2009
5 (CR)
Description Cylinder Capacity Horse Power Year
1.8 (CR19) 1798 CCM 116 HP 02/2005 - 05/2010
2.0 (CREW, CR19) 1999 CCM 146 HP 02/2005 - 05/2010
2.0 CD (CR19) 1998 CCM 110 HP 02/2005 - 05/2010
2.0 CD (CR19) 1998 CCM 143 HP 02/2005 - 05/2010
5 (CW)
Description Cylinder Capacity Horse Power Year
1.6 CD 1560 CCM 116 HP From 07/2010
2.0 (CWEFW) 1999 CCM 150 HP From 09/2010
2.0 (CWEFW) 1999 CCM 144 HP From 06/2010
1.8 MZR 1798 CCM 116 HP From 09/2010
2.0 (CWFFW) 1998 CCM 151 HP From 08/2014
2.0 1999 CCM 147 HP From 01/2011
SUZUKI
GRAND VITARA I Open Off-Road Vehicle (GT)
Description Cylinder Capacity Horse Power Year
1.6 4x4 (SQ416) 1590 CCM 94 HP 03/1998 - 07/2003
2.0 4x4 (SQ420) 1995 CCM 128 HP 03/1998 - 07/2003

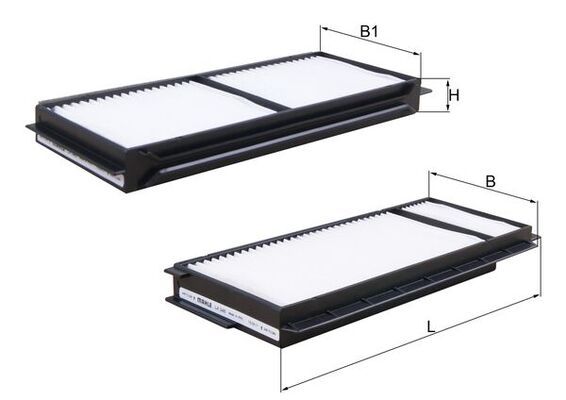

The Mahle LA346/S Filter, cabin air is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records particulate Filter filter design, 236.5 mm length, 101 and 97 mm width, and 21.6 mm height. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Filter, cabin air
Filter type : Particulate Filter
Basic version with active carbon (Art. No.) : LAK 346/S
Length [mm] : 236.5
Width [mm] : 101
Width [mm] : 97
Height [mm] : 21.6
Packaging length [cm] : 11
Net Weight [g] : 128
Packaging height [cm] : 24.1
Packaging width [cm] : 5.5
  • Vendor MAHLE
  • SKU LA346/S
  • Barcode 027067729262
  • MAZDA : B32L61J6X BP4K61A03 BP4K61J6X BP4K61J6X9A BP4K61J6XA BP4K61J6XA9A BP4M61A01 BP4M61A02 BP5E61J6X BP8P61J6X BP8P61J6X9A BP8P61J6XA9A CC2961J6X CC6461J6X KJ6X0CC29
  • BLUE PRINT : ADM52508
  • BLUE PRINT : ADM52519
  • BORG & BECK : BFC1056
  • BOSCH : 1 987 432 163
  • CORTECO : 80000405
  • CORTECO : 80000406
  • DELPHI : TSP0325202
  • DENSO : DCF563P
  • FEBI BILSTEIN : 27243
  • HELLA : 8ZC 366 122-751
  • HENGST FILTER : E1937LI
  • HENGST FILTER : E2970LI-2
  • LUCAS : LFCP195S
  • MANN-FILTER : CU 22 001-2
  • NAPA : NFC4115
  • UFI : 53.120.00
  • VALEO : 698892
  • WIX FILTERS : WP9282
  • User manual
  • MAHLE : 70346566
  • MAHLE : LAK 346/S
