MAHLE

Mahle LX314 Air Filter

SKU: LX314
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£13.79 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
TRANSPORTER Mk IV Platform/Chassis (70E, 70L, 70M, 7DE, 7DL,
Description Cylinder Capacity Horse Power Year
1.9 D 1896 CCM 61 HP 07/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.5 2461 CCM 110 HP 11/1990 - 04/2003
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.0 1968 CCM 84 HP 07/1990 - 04/2003
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
1.9 D 1896 CCM 60 HP 09/1990 - 12/1995
TRANSPORTER Mk IV Van (70A, 70H, 7DA, 7DH, 70J)
Description Cylinder Capacity Horse Power Year
2.0 1968 CCM 84 HP 07/1990 - 04/2003
2.5 2461 CCM 110 HP 11/1990 - 04/2003
1.9 D 1896 CCM 61 HP 07/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 07/1990 - 04/1998
2.5 Syncro 2461 CCM 110 HP 11/1992 - 11/2001
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
TRANSPORTER / CARAVELLE Mk IV Bus (70B, 70C, 7DB, 7DK, 70J,
Description Cylinder Capacity Horse Power Year
2.4 D Syncro 2370 CCM 78 HP 10/1992 - 09/1998
2.5 Syncro 2461 CCM 110 HP 08/1992 - 04/2003
2.5 2461 CCM 110 HP 09/1990 - 06/2003
1.8 1781 CCM 67 HP 12/1990 - 07/1992
1.9 D 1896 CCM 60 HP 09/1990 - 12/1995
1.9 TD 1896 CCM 68 HP 10/1992 - 04/2003
2.4 D 2370 CCM 78 HP 09/1990 - 04/1998
2.0 1968 CCM 84 HP 09/1990 - 04/2003

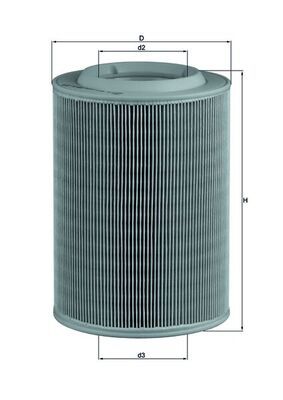

The Mahle LX314 Air Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records filter Insert filter design, 164 mm outer diameter, 93 mm inner diameter 1, and 105 mm diameter 4. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Air Filter
Filter type : Filter Insert
Height [mm] : 237.5
Outer Diameter [mm] : 164
Inner Diameter 1 [mm] : 93
Diameter 4 [mm] : 105
Diameter 3 [mm] : 93
Packaging length [cm] : 17
Packaging width [cm] : 17
Packaging height [cm] : 24
Net Weight [g] : 400
  • Vendor MAHLE
  • SKU LX314
  • Barcode 027067665225
  • AUDI : 044129620 44129620
  • VW : 044129620 44129620
  • CUPRA : 044129620
  • BORG & BECK : BFA2162
  • BOSCH : 1 457 429 795
  • FEBI BILSTEIN : 21106
  • HELLA : 8ZA 366 135-141
  • HENGST FILTER : E169L
  • MANN-FILTER : C 17 201/3
  • MEYLE : 112 129 0041
  • NAPA : NFA1395
  • UFI : 27.195.00
  • VALEO : 585645
  • WIX FILTERS : WA6444
  • MAHLE : 77486392
