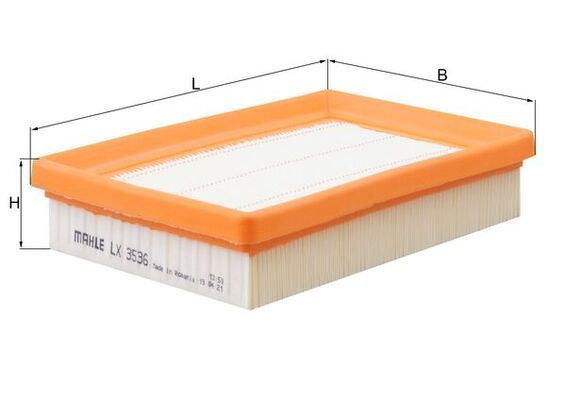

Mahle LX3536 Air Filter - 1

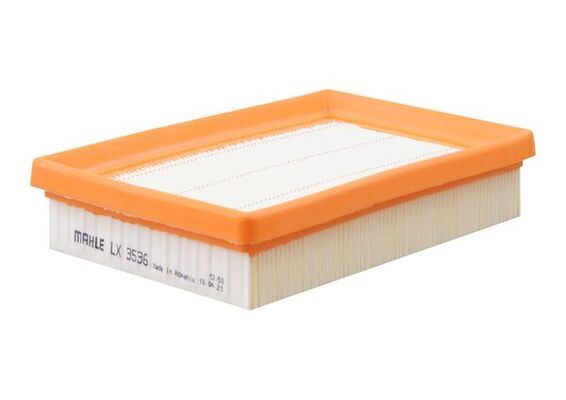

Mahle LX3536 Air Filter - 2

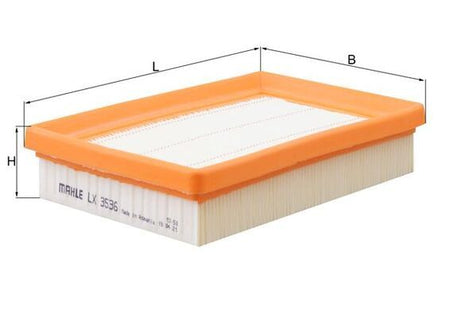

Mahle LX3536 Air Filter - 1
Mahle LX3536 Air Filter - 2
MAHLE

Mahle LX3536 Air Filter

SKU: LX3536
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£10.22 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C1 II (PA_, PS_)
Description Cylinder Capacity Horse Power Year
1.0 VTi 68 998 CCM 69 HP 04/2014 - 04/2018
1.0 VTi 72 998 CCM 72 HP 06/2018 - 07/2021
PEUGEOT
108
Description Cylinder Capacity Horse Power Year
1.0 VTi 998 CCM 69 HP From 05/2014
1.0 VTi 72 998 CCM 72 HP From 05/2018
SUZUKI
SWACE (AMZ_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid 1798 CCM 102 HP From 10/2020
1.8 Hybrid 1798 CCM 122 HP From 10/2020
1.8 Hybrid 1798 CCM 140 HP From 03/2023
TOYOTA
AYGO (_B4_)
Description Cylinder Capacity Horse Power Year
1.0 (KGB40) 998 CCM 69 HP From 05/2014
1.0 VVTi (KGB40) 998 CCM 72 HP From 03/2018
AYGO X (_B7_)
Description Cylinder Capacity Horse Power Year
1.0 VVT-i (KGB70) 998 CCM 72 HP From 03/2022
C-HR (_X1_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZYX10_, ZYX11_, ZYX10R, ZYX11R) 1798 CCM 122 HP From 10/2016
C-HR VAN (_X1_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZYX10, ZYX11) 1798 CCM 122 HP From 10/2016
C-HR (_X2_, _H2_)
Description Cylinder Capacity Horse Power Year
Hybrid (ZYX20) 1798 CCM 140 HP From 10/2023
COROLLA Hatchback (_E21_, _EA1_, _EH1_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZWE211, ZWE219) 1798 CCM 122 HP From 10/2018
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 09/2022
COROLLA Saloon (_E21_)
Description Cylinder Capacity Horse Power Year
1.8 VVTi Hybrid (ZWE211) 1798 CCM 122 HP From 02/2019
1.8 VVTi Hybrid 1798 CCM 126 HP From 01/2019
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 09/2022
COROLLA Estate (_E21_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZWE211W) 1798 CCM 122 HP From 02/2019
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 09/2022
COROLLA COMMERCIAL (_E21_)
Description Cylinder Capacity Horse Power Year
1.8 VVTi Hybrid (ZWE211) 1798 CCM 122 HP From 06/2022
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 01/2023
PRIUS (_W5_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZVW50, ZVW50_, ZVW51_, ZVW50R, ZVW51) 1798 CCM 122 HP 09/2015 - 12/2022
Hybrid (ZVW55_) 1798 CCM 122 HP 09/2015 - 12/2022
PRIUS PHV (_W52_)
Description Cylinder Capacity Horse Power Year
1.8 Plug-in Hybrid (ZVW52) 1798 CCM 122 HP 01/2016 - 12/2022
YARIS Hatchback Van (_P13_)
Description Cylinder Capacity Horse Power Year
1.0 VVTi (KSP130) 998 CCM 69 HP 07/2014 - 06/2020
1.0 VVTi (KSP130) 998 CCM 72 HP 06/2018 - 06/2020
1.5 Hybrid (NHP130) 1497 CCM 101 HP 04/2015 - 06/2020
YARIS/VITZ (_P13_)
Description Cylinder Capacity Horse Power Year
1.5 Hybrid (NHP130_, NHP130) 1497 CCM 101 HP 03/2012 - 06/2020
1.5 Hybrid (NHP130_) 1497 CCM 101 HP 04/2015 - 03/2017
1.0 (KSP130) 998 CCM 72 HP 06/2018 - 06/2020

The Mahle LX3536 Air Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records filter Insert filter design, 176.1 mm length, 118 mm width, and Foam/Rigid Foam seal material. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Air Filter
Filter type : Filter Insert
Length [mm] : 176.1
Width [mm] : 118
Height [mm] : 37.3
Seal Material : Foam/Rigid Foam
Packaging length [cm] : 12.5
Packaging height [cm] : 18
Packaging width [cm] : 4.5
Net Weight [g] : 91
  • Vendor MAHLE
  • SKU LX3536
  • Barcode 4009026931165
  • CITROËN : 1612496780 1616368880 B000958980
  • PEUGEOT : 1612496780 1616368880 B000958980
  • SUZUKI : T178010M04
  • TOYOTA : 177010M060 177050M080 178010M030 178010M040 1780121060
  • BLUE PRINT : ADT322115
  • BORG & BECK : BFA2419
  • BOSCH : F 026 400 438
  • Fahren : FFA1151
  • FEBI BILSTEIN : 176326
  • HELLA : 8ZA 366 130-861
  • HENGST FILTER : E1222L
  • LUCAS : LFAF467
  • MANN-FILTER : C 17 008
  • MEYLE : 40-12 321 0002
  • NAPA : NFA1262
  • UFI : 30.603.00
  • VALEO : 585429
  • WIX FILTERS : WA9787
  • MAHLE : 72344460
