Mahle OC103 Oil Filter
Your selected vehicle
Regular price
£14.80
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

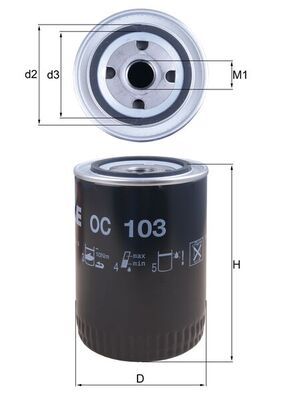

The Mahle OC103 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 93.2 mm diameter, 72 mm diameter 2, and Overflow Valve valve type. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Filter
Filter type :
Spin-on Filter
Diameter [mm] :
93.2
Height [mm] :
141
Thread Size :
13/16"-16UNF-2B
Diameter 2 [mm] :
72
Seal Ring Diameter [mm] :
62
Tightening Torque [Nm] :
20
Article number of the recommended special tool :
OCS 2
Supplementary Article/Supplementary Info 2 :
with one anti-return valve
Valve Type :
Overflow Valve
Packaging height [cm] :
14.4
Net Weight [g] :
527
Packaging length [cm] :
9.8
Packaging width [cm] :
9.8
- Vendor MAHLE
- SKU OC103
- GMC : 6437968
- VOLVO : 152499
- CASE IH : 998457R91
- RENAULT TRUCKS : 0003132302
- CLAAS : 6005012109 CT6005012109
- GENERAL MOTORS : 6436383 6437968
- JOHN DEERE : AR58956 AT19044T T19044 T19044D T19044T T19044TH T19044TL
- CLARK : 6511730
- CATERPILLAR : 9Y4450
- INGERSOLL-RAND : 35308030
- KOMATSU : 152499
- ZETOR : 77010793
- DITCH WITCH : 195873
- BOSCH : 0 451 104 005
- HENGST FILTER : H17W09
- MANN-FILTER : W 936/4
- UFI : 23.112.00
- WIX FILTERS : 51243
- User manual
- MAHLE : 77787849
