MAHLE

Mahle OC196 Oil Filter

SKU: OC196

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£9.54 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

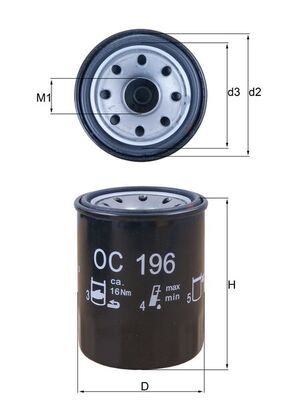

The Mahle OC196 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 65 mm diameter, 62.5 mm diameter 2, and Overflow Valve valve type. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.

Function : Oil Filter

Filter type : Spin-on Filter

Diameter [mm] : 65

Height [mm] : 85.6

Thread Size : M20x1,5

Diameter 2 [mm] : 62.5

Seal Ring Diameter [mm] : 52.4

Tightening Torque [Nm] : 16

Article number of the recommended special tool : OCS 4

Supplementary Article/Supplementary Info 2 : with one anti-return valve

Valve Type : Overflow Valve

Net Weight [g] : 218

Packaging length [cm] : 7

Packaging width [cm] : 7

Packaging height [cm] : 8.8

Mahle OC196 Oil Filter
