Mahle OC26 Oil Filter
Your selected vehicle
Regular price
£12.18
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

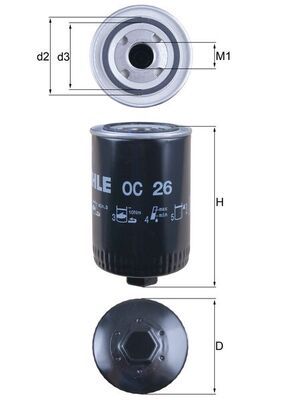

The Mahle OC26 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 93.2 mm diameter, 72 mm diameter 2, and Overflow Valve valve type. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Filter
Filter type :
Spin-on Filter
Diameter [mm] :
93.2
Height [mm] :
151
Thread Size :
1"-12UNF-2B
Diameter 2 [mm] :
72
Seal Ring Diameter [mm] :
62
Tightening Torque [Nm] :
20
Article number of the recommended special tool :
OCS 2
Supplementary Article/Supplementary Info 2 :
with one anti-return valve
Valve Type :
Overflow Valve
Packaging height [cm] :
15.3
Net Weight [g] :
581
Packaging length [cm] :
9.6
Packaging width [cm] :
9.6
- Vendor MAHLE
- SKU OC26
- AUDI : 905411880009 T06115561
- BMW : 11421318932
- DAF : 690260
- FENWICK : 8104270
- FIAT : 61584009 75285484
- FORD : 1879134 5000861 5010666 A730X6714HA A820X6714SA EFL224 WD5T-6731-B WD5T6731A
- GMC : 7984325
- HANOMAG : 971238001
- HANOMAG HENSCHEL : 000922853 711922853 922853 971238001
- ISUZU : 6002115212
- IVECO : 01160024 01173481 1160024 1173481 1902135
- KÄLBLE : 40600493 8600850177
- RENAULT : 6005000735 6005000929
- UNIC-SIMCA : 061584009
- VOLVO : 11700375
- VW : 905411880009 T06115561
- ENASA : 637122
- STEYR : 7101070332
- BOMAG : 01160024 05710639 20608940
- CASE IH : 28006 3917868R1 711922 8888667 905411880009 H411272 O243252EC S1350576
- MASSEY FERGUSON : 2999976M1
- MWM : 605411880009 905411880009
- O&K : 044667
- POCLAIN : 243250 243252 8888667 8888840 C0950546 C95044 E0243252 E243232 E243252 R0950559 R950559 S1350576
- LIEBHERR : 5106133 5502455 7020038
- RENAULT TRUCKS : 5001846637
- CUMMINS : 851220031
- CLAAS : 05919130 5919130 6005000735 6005024443 CT6005000735 CT6005024443
- FENDT : F015200090051 F100001160024 F100001173481 F100001174418 F275203010020
- CLARK : 3779685 4119775
- DEMAG : 20608940
- STILL : 0133791 133791
- PUMA : 905411880009
- ATLAS WEYHAUSEN : 363031 831038
- ATLAS COPCO : 12028495 9709001100 9712540103
- CATERPILLAR : 1R0734 5W5887 629501461 9N5680 9N5860 9Y4474
- DYNAPAC : 300480916 747284 747289 752011 752012 752091 925676
- FUCHS : 1160024
- HAMM : 231495
- HYDROVANE : 57562
- INGERSOLL-RAND : 1160024 35292358 91605204
- KAELBLE : 40600493 8600850177
- KOMATSU : 6002115240 6002115241 6002115242 6002116140L 6002116230 905411880009
- KRAMER : 0001140201 0451140001 1160024 451140001
- KUBOTA : 6002116230
- LOSENHAUSEN : 04999/50338
- RICHIER : 552352603
- SCHAEFF : 5080656022 5411316400
- SULLAIR : 0237 68527266
- VALMET : 215420 836120822 836122208 YT2002
- ZETTELMEYER : 00405712 0040571203 00MU57120 405712 4057120 40571203 MU57120 MU7512
- GUELDNER : 0009830627 0160000002001 7995000510
- LINDE : 0009830627 0160000002001
- CBT : 905411880009
- MAXION : 2999976M1 905411880009
- SLC : 905411880009
- ZETOR : 93407505
- VM : 41150059A 4115059 4115065
- VÖGELE : 4912911351
- DEUTZ : 01160024 01173481 01174418 01182001 0150157510 1160024 1173481 1174418 1182001 363031 605411880009 A1H4123 B0150157510
- BENATI : 1839105
- MANITOU : 1173481 137183
- WEIDEMANN : 5166001005
- SETRA : 8300100540
- NEW HOLLAND : 8888667
- DITCH WITCH : 195814
- ENGESA : 2680600298
- CUPRA : 905411880009 T06115561
- User manual
- MAHLE : 72013084
