Mahle OC275 Oil Filter
Your selected vehicle
Regular price
£10.40
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

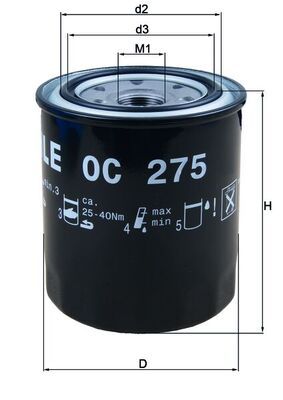

The Mahle OC275 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 100 mm diameter, 79.5 mm diameter 2, and Overflow Valve valve type. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Filter
Filter type :
Spin-on Filter
Diameter [mm] :
100
Height [mm] :
121.6
Thread Size :
M24x1,5-6H
Height 1 [mm] :
120
Diameter 2 [mm] :
79.5
Seal Ring Diameter [mm] :
72
Tightening Torque [Nm] :
30
Supplementary Article/Supplementary Info 2 :
with one anti-return valve
Valve Type :
Overflow Valve
Packaging length [cm] :
10.5
Packaging width [cm] :
10.5
Packaging height [cm] :
12.5
Net Weight [g] :
666
Construction Year to :
06.2000
- Vendor MAHLE
- SKU OC275
- AUDI : I9091503006 J9091503006 J9091530002
- FORD : 1213438 3598332 4089653 9613330 EFL904 XM346731AA XM346731CA XM3J6731AA
- MAZDA : WL5114302 WL9114302 WLY014302 WLY214302 WLY214302TT
- TOYOTA : 0415203006 1154100161 1560054010 9091503006 9091530002 90915300028T
- VW : I9091503006 J9091503006 J9091530002
- FORD USA : 1213438 3598332 XM346731AA XM3J6731AA
- YANMAR : 11977090620
- CUPRA : I9091503006 J9091503006 J9091530002
- User manual
- MAHLE : 72547847
