Mahle OC486 Oil Filter
Your selected vehicle
Regular price
£14.39
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

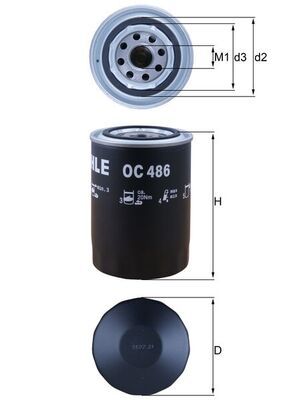

The Mahle OC486 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 93 mm diameter, 71 mm diameter 2, and Overflow Valve valve type. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Filter
Filter type :
Spin-on Filter
Diameter [mm] :
93
Height [mm] :
138.7
Thread Size :
M22x1,5
Diameter 2 [mm] :
71
Seal Ring Diameter [mm] :
61.4
Tightening Torque [Nm] :
20
Article number of the recommended special tool :
OCS 2
Supplementary Article/Supplementary Info 2 :
with one anti-return valve
Valve Type :
Overflow Valve
Packaging height [cm] :
13.9
Net Weight [g] :
495
Packaging length [cm] :
9.6
Packaging width [cm] :
9.6
- Vendor MAHLE
- SKU OC486
- CITROËN : 1109AS 1109Y5 1109Y6 1606267480 1609563780
- FIAT : 504006145 71740064 71753739 8093784
- FORD : 1582036 1582037 1582038 785F6714AA1A 785F6714AA2A 785F6714AA3A EFL252
- IVECO : 2992188 500038746 500378838 8093794
- PEUGEOT : 1109AS 1109Y5 1109Y6 1606267480 1609563780
- O&K : 1407098
- SAME : 244191000 244191002
- MASERATI : ML66523
- FODEN TRUCKS : Y03732901
- CARRARO : 41020
- VM : 41150030A
- MANITOU : 106928
- User manual
- MAHLE : 76886865
