Mahle OC503 Oil Filter
Your selected vehicle
Regular price
£11.95
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

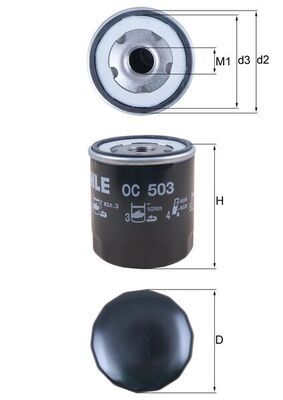

The Mahle OC503 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 75.8 mm diameter, 71.6 mm diameter 2, and Overflow Valve valve type. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Filter
Filter type :
Spin-on Filter
Diameter [mm] :
75.8
Height [mm] :
88.6
Thread Size :
M20x1,5
Diameter 2 [mm] :
71.6
Seal Ring Diameter [mm] :
65.5
Tightening Torque [Nm] :
10
Article number of the recommended special tool :
OCS 1
Supplementary Article/Supplementary Info 2 :
with one anti-return valve
Valve Type :
Overflow Valve
Packaging height [cm] :
10
Net Weight [g] :
393
Packaging length [cm] :
9
Packaging width [cm] :
9
- Vendor MAHLE
- SKU OC503
- CITROËN : 110962 110987 1109AK 1109K7 1109N4 1109N5 1109S7 1109S8 95638903 E149007 E149177 E149178
- DAF : 0192143 192143
- FIAT : 5495251
- FORD : 5016950 860X6714HA EFL306
- GMC : 93156561
- PEUGEOT : 110962 110987 1109AK 1109K7 1109N4 1109N5 1109S7 1109S8 95638903 E149007 E149177 E149178
- HYUNDAI : 0K63123802 K63123802 K80023802
- KIA : 0K63123802 K63123802 K80023802
- CITROËN/PEUGEOT : 1616174980
- User manual
- MAHLE : 76832265
