Mahle OC540 Oil Filter
Your selected vehicle
Regular price
£11.86
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

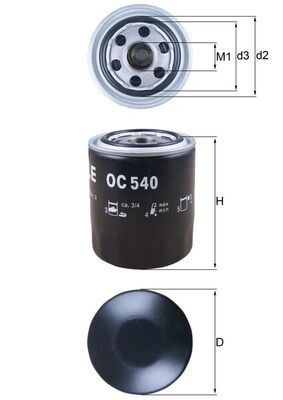

The Mahle OC540 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 94 mm diameter, 72 mm diameter 2, and Overflow Valve valve type. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Filter
Filter type :
Spin-on Filter
Diameter [mm] :
94
Height [mm] :
117.4
Thread Size :
M26x1,5
Diameter 2 [mm] :
72
Seal Ring Diameter [mm] :
62
Tightening Torque [Nm] :
20
Supplementary Article/Supplementary Info 2 :
with one anti-return valve
Valve Type :
Overflow Valve
Packaging height [cm] :
11.5
Net Weight [g] :
565
Packaging length [cm] :
9.5
Packaging width [cm] :
9.5
- Vendor MAHLE
- SKU OC540
- HYUNDAI : 0K55114302 0VS0114302 2630042020 2630042030 2630042040 2630042060 263104A000 263104A010 263304A000 263304A001 263304X000 K55114302 OK55114302 S2630042040 S263104A000 S263104A010 S263304X000
- KIA : 0K55114302 0VS0114302 2630042020 2630042030 2630042040 2630042060 263104A000 263104A010 263304A000 263304A001 263304X000 K55114302 OK55114302 S2630042040 S263104A000 S263104A010 S263304X000
- User manual
- MAHLE : 70355146
