Mahle OC570 Oil Filter
Your selected vehicle
Regular price
£14.20
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

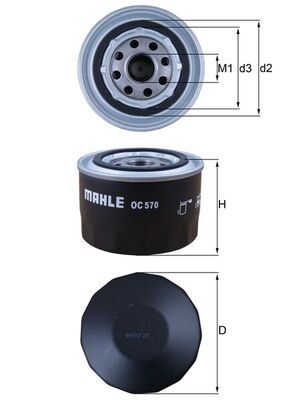

The Mahle OC570 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 93 mm diameter, 71 mm diameter 2, and Overflow Valve valve type. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Filter
Filter type :
Spin-on Filter
Diameter [mm] :
93
Height [mm] :
69.7
Thread Size :
M22x1,5
Diameter 2 [mm] :
71
Seal Ring Diameter [mm] :
61.4
Tightening Torque [Nm] :
20
Article number of the recommended special tool :
OCS 2
Supplementary Article/Supplementary Info 2 :
with one anti-return valve
Valve Type :
Overflow Valve
Net Weight [g] :
368
Packaging height [cm] :
7.5
Packaging length [cm] :
9.5
Packaging width [cm] :
9.5
- Vendor MAHLE
- SKU OC570
- FIAT : 504091563 5801985959 6000633300 70531592 71779555 8094872
- IVECO : 02995811 2995811 500038751 504091563 5802865967
- User manual
- MAHLE : 70355150
