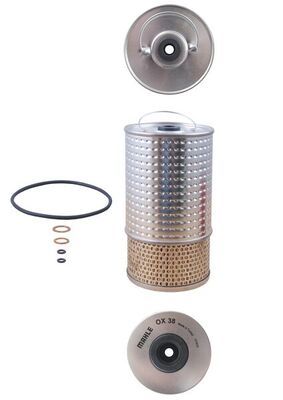

Mahle OX38D Oil Filter
Your selected vehicle
Regular price
£13.36
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Mahle OX38D Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records filter Insert filter design, 88 mm diameter, 12 mm inner diameter 2, and 24.4 mm inner diameter 3. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Filter
Filter type :
Filter Insert

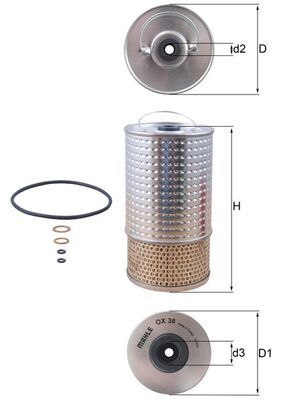

Diameter [mm] :
88
Height [mm] :
167.5
Inner Diameter 2 [mm] :
12
Inner Diameter 3 [mm] :
24.4
Seal Ring Diameter [mm] :
109.2
Thickness [mm] :
3.9
Supplementary Article/Supplementary Info :
with gaskets/seals
Height 1 [mm] :
163
Outer Diameter 1 [mm] :
92
Diameter 4 [mm] :
24.4
Packaging height [cm] :
17
Net Weight [g] :
455
Packaging length [cm] :
9.5
Packaging width [cm] :
9.5
- Vendor MAHLE
- SKU OX38D
- FORD : 5016966 860X6744AA EFL322
- GMC : 93156614
- MERCEDES-BENZ : 6011800009 6011800109 6011800210 6011840025 6011840125 6011840210 A 601 180 01 09 64 A601 180 01 09 A6011800009 A6011800210 A6011840025 A6011840125 A6011840210
- SSANGYONG : 6011800109 6011800109ME 6611803009 6611803409
- DAEWOO : 6611803009
- O&K : 1499514
- RENAULT TRUCKS : 5001846633
- GENERAL MOTORS : 93156614
- STILL : 0146707 146707
- User manual
- MAHLE : 77020878
- MAHLE : 79911752
