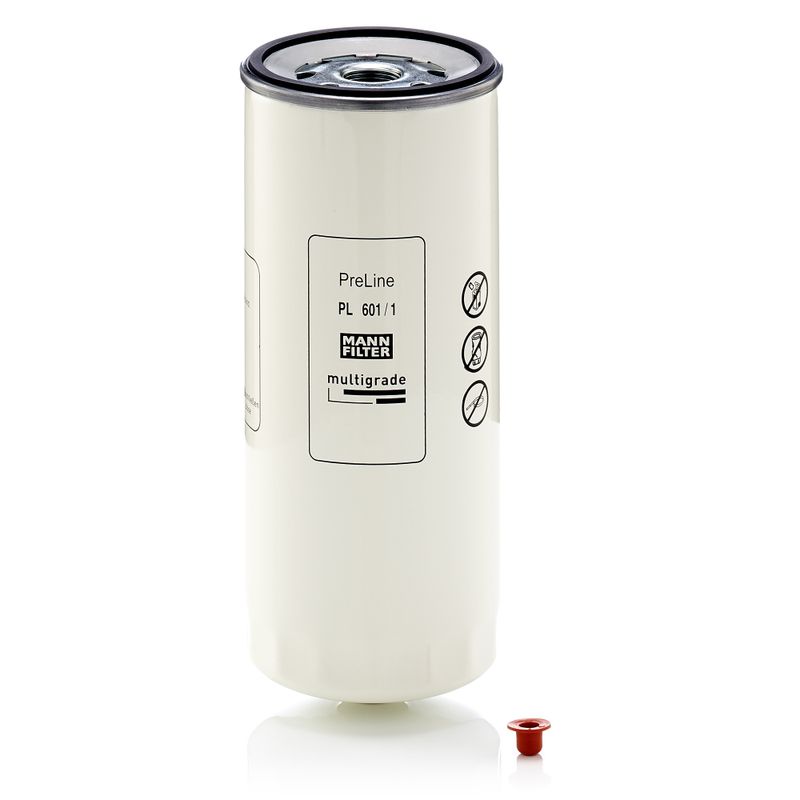

Mann & Hummel PL601/1X Fuel Filter
Your selected vehicle
Regular price
£55.69
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.
The Mann & Hummel PL601/1X Fuel Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 108 mm outer diameter, 93 mm gasket inside diameter, and 103 mm gasket outside diameter. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Fuel Filter
Filter type :
Spin-on Filter
EU General Product Safety Regulation (GPSR) :
IEC 60417-6183 mechanical expertise required
Article number of the recommended special tool :
LS 11
Supplementary Article/Supplementary Info :
with gasket/seal
Height [mm] :
270
Outer Diameter [mm] :
108
Entry Thread Size :
M12x1.5-6H
Exit Thread Size :
1-14 UNS - 1B
Gasket inside diameter [mm] :
93
Gasket outside diameter [mm] :
103
SVHC :
No SVHC present!
- Vendor MANN & HUMMEL
- SKU PL601/1X
- VOLVO : 22733329
- HINO : 23401-1680
- BOMAG : 05718906
- LIEBHERR : 11110248
- DEUTZ-FAHR : 0211 3831 0211 3837 02937814
- DEUTZ : 0211 3831 0211 3837 02937814
- KOBELCO : VH23414E0020 YN30T01007P1
- MERLO : 090233
- UFI : 24.A70.00
