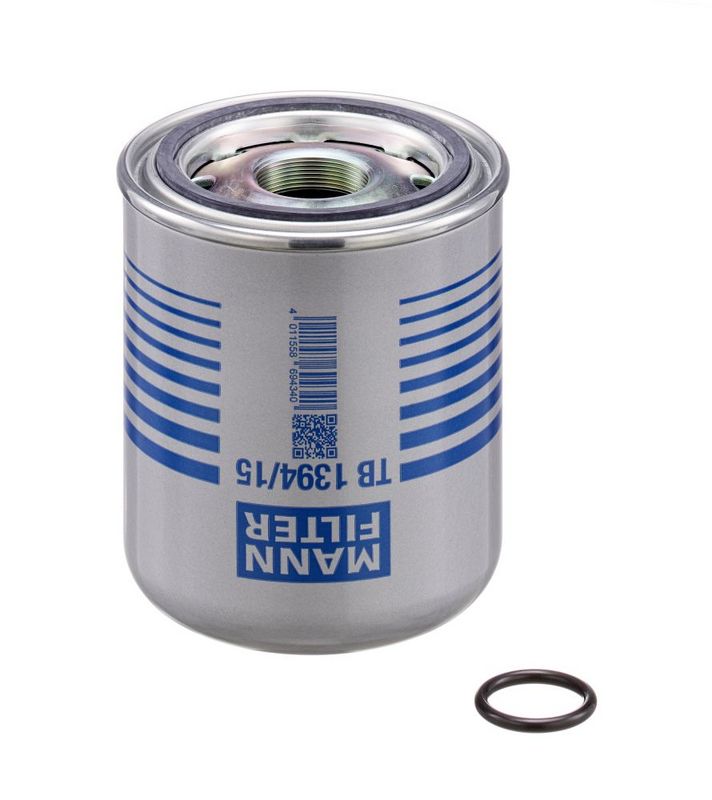

Mann & Hummel TB1394/15X Air Dryer Cartridge, compressed-air system
Your selected vehicle
Regular price
£37.55
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Mann & Hummel TB1394/15X Air Dryer Cartridge, compressed-air system is a replacement vehicle compressed-air component that generates, stores or controls air pressure for the specified vehicle system. Its catalogue specification records SG41 x 1.5 thread size, 136 mm outer diameter, 100 mm inner diameter 1, and 111 mm inner diameter 2. Match the reference, pressure, voltage, port connections, mounting and vehicle application before fitting; inspect the system for leaks and follow the manufacturer's commissioning procedure.
Function :
Air Dryer Cartridge, compressed-air system
EU General Product Safety Regulation (GPSR) :
IEC 60417-6183 mechanical expertise required
Height [mm] :
165
Thread Size :
SG41 x 1.5
Outer Diameter [mm] :
136
Inner Diameter 1 [mm] :
100
Inner Diameter 2 [mm] :
111
SVHC :
1303-86-2; Diboron trioxide
- Vendor MANN & HUMMEL
- SKU TB1394/15X
- MAN : 81.52155-0044
- MAHLE : AL 42
