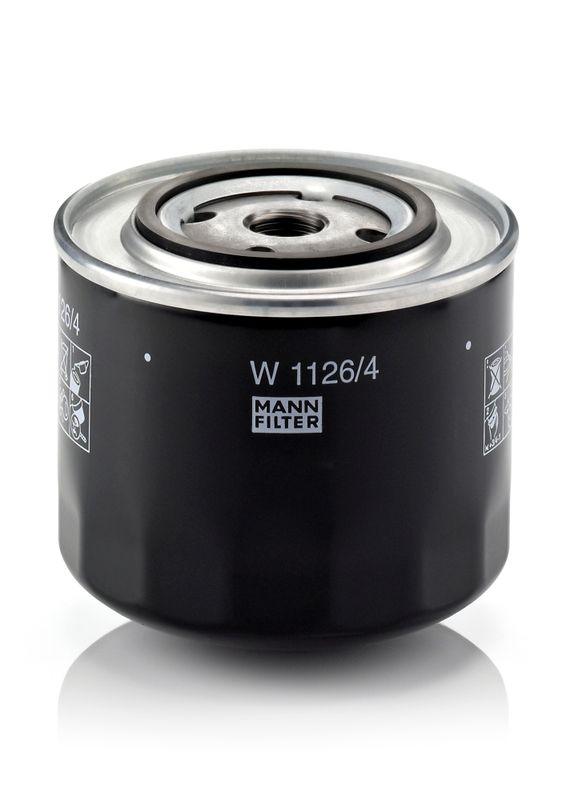

Mann & Hummel W1126 Oil Filter
Your selected vehicle
Regular price
£14.35
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Mann & Hummel W1126 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 108 mm outer diameter, 62 mm gasket inside diameter, and 71 mm gasket outside diameter. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Filter
Filter type :
Spin-on Filter
EU General Product Safety Regulation (GPSR) :
IEC 60417-6183 mechanical expertise required
Article number of the recommended special tool :
LS 11
Height [mm] :
95
Thread Size :
3/4-16 UNF
Outer Diameter [mm] :
108
Supplementary Article/Supplementary Info 2 :
with one anti-return valve
Bypass Valve Opening Pressure [bar] :
0.8
Gasket inside diameter [mm] :
62
Gasket outside diameter [mm] :
71
SVHC :
No SVHC present!
- Vendor MANN & HUMMEL
- SKU W1126
- FORD : 1526 270 5002 798 5006 580 5014 056 5016 946 5018 356 A 720 X 6714 DA A 760 X 6714 RA
- CASE IH : 1 966 279 C 1
- MASSEY FERGUSON : 1 015 511 1015511M91
- SAME : 0.053.1552.0
- RENAULT TRUCKS : 50 00 041 045
- LAMBORGHINI : 0.5391.552.0
- GENERAL MOTORS : 5577281
- MANITOU : 1 814 346 814 346
- BLUE PRINT : ADF122114
- BORG & BECK : BFO4156
- BOSCH : 0 451 203 223
- LUCAS : LFOS127
- MAHLE : OC 133
- MAHLE : OC 17
- NAPA : NFO3208
- UFI : 23.128.00
- VALEO : 586005
- VALEO : 586023
- VALEO : 586077
- WIX FILTERS : 51189E
- WIX FILTERS : WL7125
