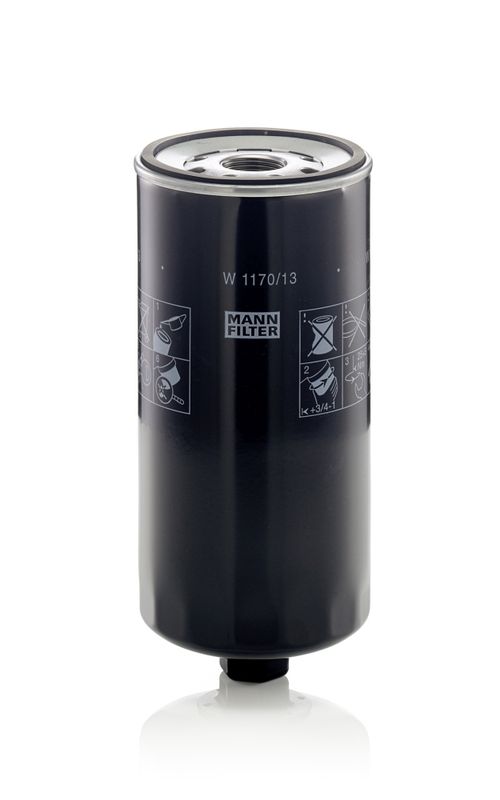

Mann & Hummel W1170/13 Oil Filter
Your selected vehicle
Regular price
£29.47
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Mann & Hummel W1170/13 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 108 mm outer diameter, 93 mm gasket inside diameter, and 104 mm gasket outside diameter. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Filter
Filter type :
Spin-on Filter
EU General Product Safety Regulation (GPSR) :
IEC 60417-6183 mechanical expertise required
Height [mm] :
240
Thread Size :
M30x2
Outer Diameter [mm] :
108
Supplementary Article/Supplementary Info 2 :
with two anti-return valves
Bypass Valve Opening Pressure [bar] :
2.5
Gasket inside diameter [mm] :
93
Gasket outside diameter [mm] :
104
SVHC :
No SVHC present!
- Vendor MANN & HUMMEL
- SKU W1170/13
- LIEBHERR : 10297295 738111123
- JOHN DEERE : AT277119 LW10297295
- HENGST FILTER : H396W
- UFI : 23.592.00
- WIX FILTERS : 57469
