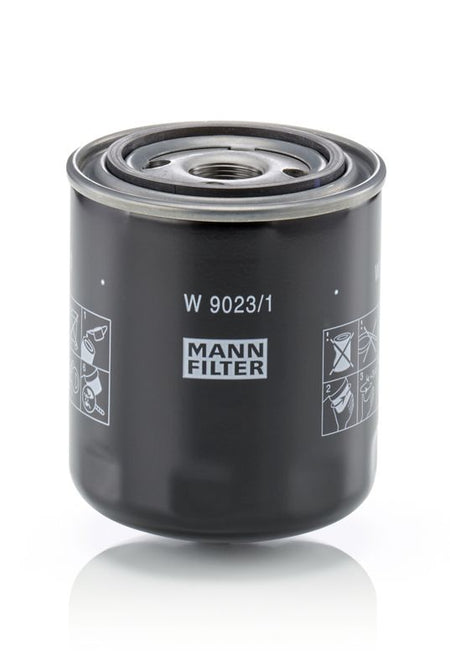

Mann & Hummel W9023/1 Hydraulic Filter, automatic transmission
Your selected vehicle
Regular price
£25.83
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Mann & Hummel W9023/1 Hydraulic Filter, automatic transmission is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 96 mm outer diameter, 63 mm gasket inside diameter, and 72 mm gasket outside diameter. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Hydraulic Filter, automatic transmission
Filter type :
Spin-on Filter
EU General Product Safety Regulation (GPSR) :
IEC 60417-6183 mechanical expertise required
Height [mm] :
116
Thread Size :
M23x1.5
Outer Diameter [mm] :
96
Bypass Valve Opening Pressure [bar] :
1.6
Gasket inside diameter [mm] :
63
Gasket outside diameter [mm] :
72
SVHC :
No SVHC present!
- Vendor MANN & HUMMEL
- SKU W9023/1
- MAN : 81.32118-0021 81.32118-0027
- SCANIA : 130 1696 176 8402 200 2705
- BOSCH : 0 451 103 330
- BOSCH : F 026 407 197
- FEBI BILSTEIN : 38975
- HENGST FILTER : H24W05
- LUCAS : LFHS100
- MAHLE : HC 113
- UFI : 80.059.00
- WIX FILTERS : 92017E
