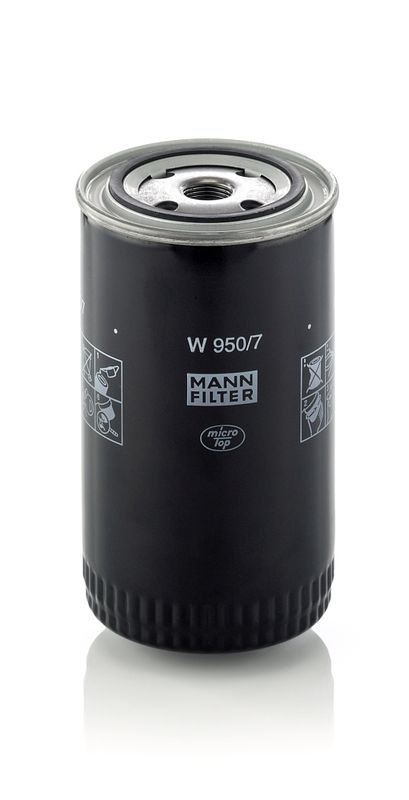

Mann & Hummel W950/7 Oil Filter
Your selected vehicle
Regular price
£13.41
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Mann & Hummel W950/7 Oil Filter is a replacement filtration component that helps retain contamination while allowing the relevant air, oil, fuel or cabin-air flow. Its catalogue specification records spin-on Filter filter design, 93 mm outer diameter, 62 mm gasket inside diameter, and 71 mm gasket outside diameter. Compare the reference, filter design, dimensions and vehicle application data below with the removed part before ordering, because filter formats can vary within the same model range.
Function :
Oil Filter
Filter type :
Spin-on Filter
EU General Product Safety Regulation (GPSR) :
IEC 60417-6183 mechanical expertise required
Article number of the recommended special tool :
LS 9
Height [mm] :
170
Thread Size :
3/4-16 UNF
Outer Diameter [mm] :
93
Supplementary Article/Supplementary Info 2 :
with one anti-return valve
Bypass Valve Opening Pressure [bar] :
0.7
Gasket inside diameter [mm] :
62
Gasket outside diameter [mm] :
71
SVHC :
No SVHC present!
- Vendor MANN & HUMMEL
- SKU W950/7
- CHRYSLER : 75065702
- FORD : 1565 204 5004 775 5019 424 5019 425
- MAN : 86.05500-6005 86.77903-0378
- NISSAN : 15208-9X800 15209-T9005
- TALBOT : 00 750 657 02 75 065 702
- VOLVO : 17262703 3976603 3976603-6 39766035
- FREIGHTLINER : ABP/N10G-LF699
- ENASA : 740 911
- DAEWOO : 2474-6018
- VAG : 061 115 561
- BOMAG : SCA037929
- CASE IH : 2654407 3214797R1
- MASSEY FERGUSON : 1 447 031 1446675M91 1447031M 1447031M1 1447031M2 2 654 407
- RENAULT TRUCKS : 00 03 563 603
- PERKINS : 2 654 407 3 000 323
- CLAAS : 00 0147 222 0 00 1137 275 0 0147 222 0
- GENERAL MOTORS : 7984717
- CLARK : 960698
- JCB : 02/100073 02/100073A 2/100073 2654407
- CATERPILLAR : 265-4410 7W-2326
- HYSTER : 251755
- INGERSOLL-RAND : 88111240 9209 2196
- KOMATSU : PK2654407
- KRAMER : 000 080 00 13
- LANDINI : 6676230 A1
- MELROE : 960698
- RICHIER : 552 652 301
- SCHAEFF : 5.568.656.650
- SENNEBOGEN : 3752031662
- AGCO : 525515D1
- SPERRY NEW HOLLAND : 84519155
- VM : 4.115.066 41 150 066 A
- SCHMITZ CARGOBULL : 1152673
- TEREX : 2654407
- JUNGHEINRICH : 502 2697 3
- MANITOU : 2654418 476954 746954
- AMMANN : 1-M00173
- ISEKI : Y2654407
- GEHL : 476954
- DIECI : BHC5054
- MERLO : 960698
- MCCORMICK : 3214797R1 701899A1
- BOSCH : 0 451 203 001
- BOSCH : 0 451 203 010
- FEBI BILSTEIN : 183237
- HENGST FILTER : H19W04
- LUCAS : LFOS138
- MAHLE : OC 42
- NAPA : NFO3237
- UFI : 23.156.00
- VALEO : 586015
- WIX FILTERS : 51459E
